CW Energy 595W Bifacial Solar Panel CWT595-144TNB10 | 31 Panels per Pallet
$5,749.39 / pallet $0.31/W · 31 panels · 18.45 kW
45 people are viewing this product right now
CW Energy CWT595-144TNB10 595 W bifacial double-glass N-type TOPCon panels, full pallet of 31 (18.45 kW DC). 23.03% efficiency, 1500 V, 30-year product and 30-year performance warranty. Availability and freight confirmed with your quote.

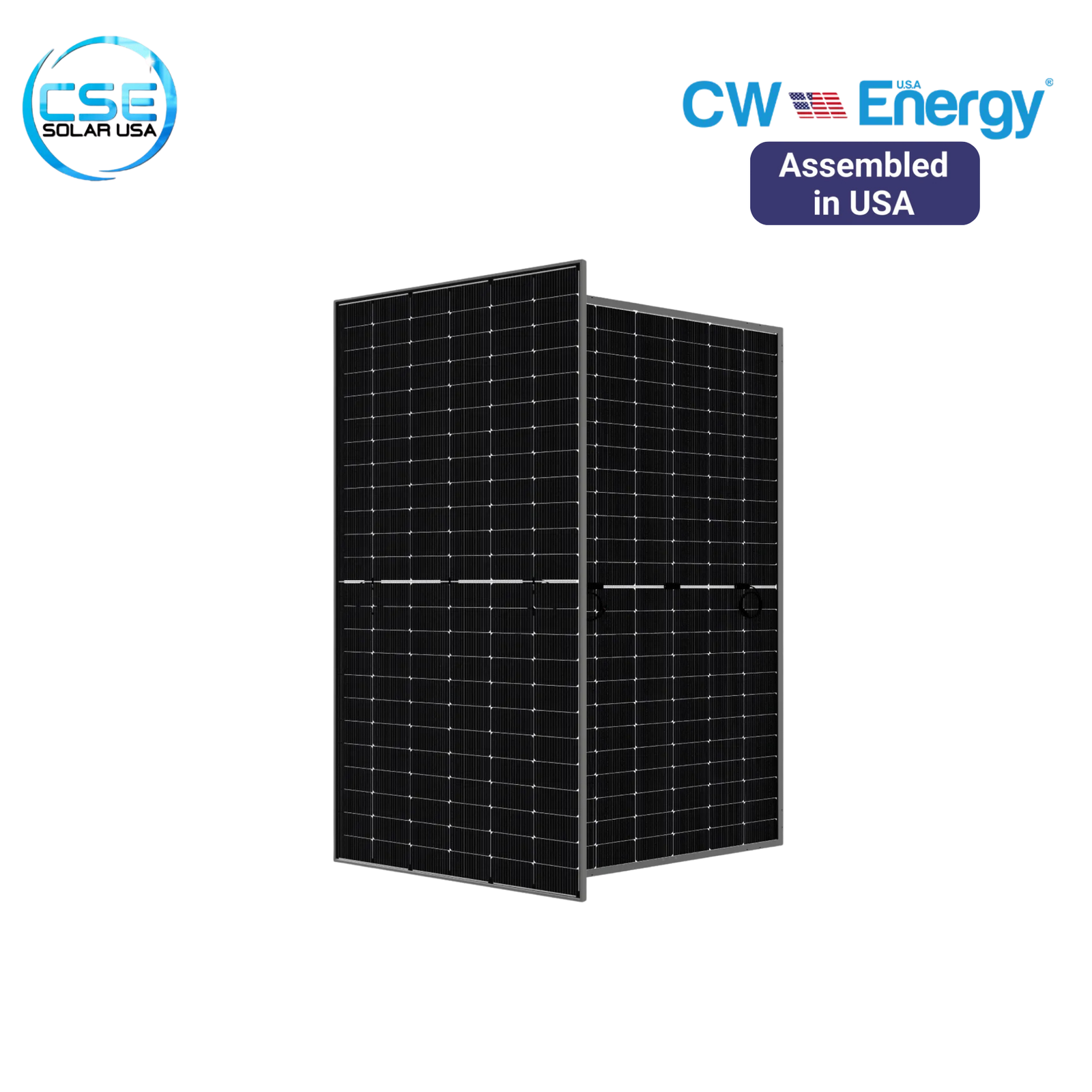

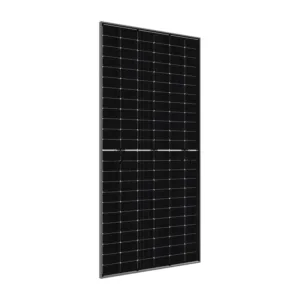

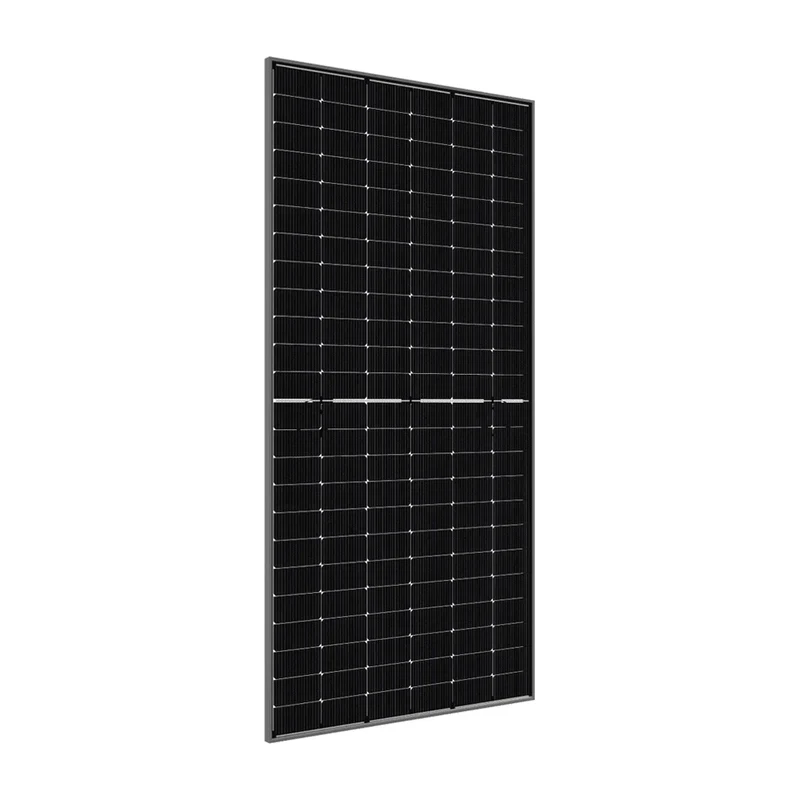

CW Energy CWT595-144TNB10 is a 595 W bifacial, double-glass N-type TOPCon solar module from CW Energy’s High-Efficiency 144TNB10 series (585–600 W). This listing is a full pallet of 31 panels (18.45 kW DC).
The 144-cell, 2278 × 1134 mm format is designed for commercial rooftops, carports and ground-mount arrays on 1500 V systems. The double-glass construction and 80 ± 5% bifaciality add rear-side yield over reflective surfaces; CW Energy’s datasheet lists a 660–780 W rear-gain range for the 600 W bin at 10–30% rear irradiance.
Specifications (CW Energy datasheet, Ver.2608.25)
| Maximum power (STC) | 595 W (tolerance 0 to +5 W) |
|---|---|
| Module efficiency | 23.03% |
| Voc / Isc | 52.18 V / 14.36 A |
| Vmp / Imp | 43.55 V / 13.67 A |
| Cells | 144 half-cut N-type M10 cells (6 × 24), 16 busbars |
| Construction | Bifacial double glass, 2.0 mm + 2.0 mm; bifaciality 80 ± 5% |
| Dimensions | 2278 × 1134 × 30 mm or 35 mm (both frame heights printed on the datasheet) |
| Weight | 32.0 kg (30 mm frame) / 33.0 kg (35 mm frame) |
| Max system voltage / series fuse | 1500 V DC / 30 A |
| Temperature coefficients | Pmax −0.30 %/°C, Voc −0.26 %/°C, Isc +0.040 %/°C |
| Mechanical load | 2400 Pa / 5400 Pa |
| Junction box / connectors | IP68; Stäubli MC4-EVO2 |
| Operating temperature | −40 °C to +85 °C |
| Warranty | 30-year product warranty and 30-year linear performance warranty (at least 87.4% at year 30) |
| Certifications | UL 61730-1/-2 and CSA C22.2#61730 (Intertek ETL); IEC 61215, IEC 61730; IEC TS 63209-1 extended stress |
| Manufacturer | CW Enerji, Antalya, Türkiye (per CW Energy certificates); U.S. company CW Energy USA, Inc. |

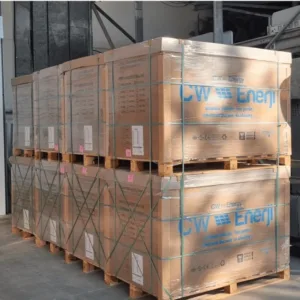

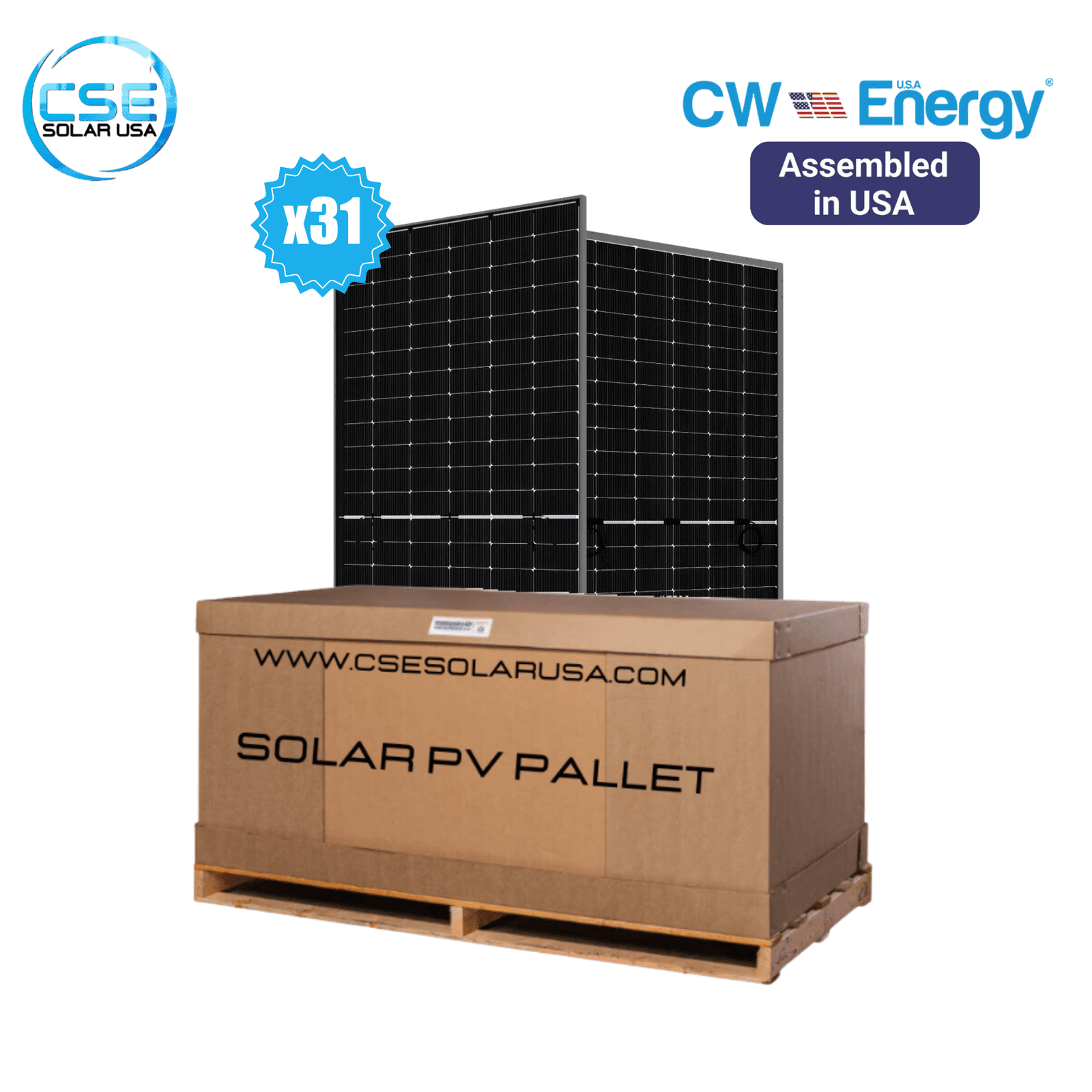

| Packing (datasheet) | 31 panels per pallet (18.45 kW) |
Documents & Downloads
- CWT595-144TNB10 datasheet (PDF) (CW Energy USA)
- UL 61730 Intertek ETL Authorization to Mark (PDF) (CW Energy USA)
- 144TNB10 warranty certificate (PDF) (CW Energy USA)
Ordering and availability

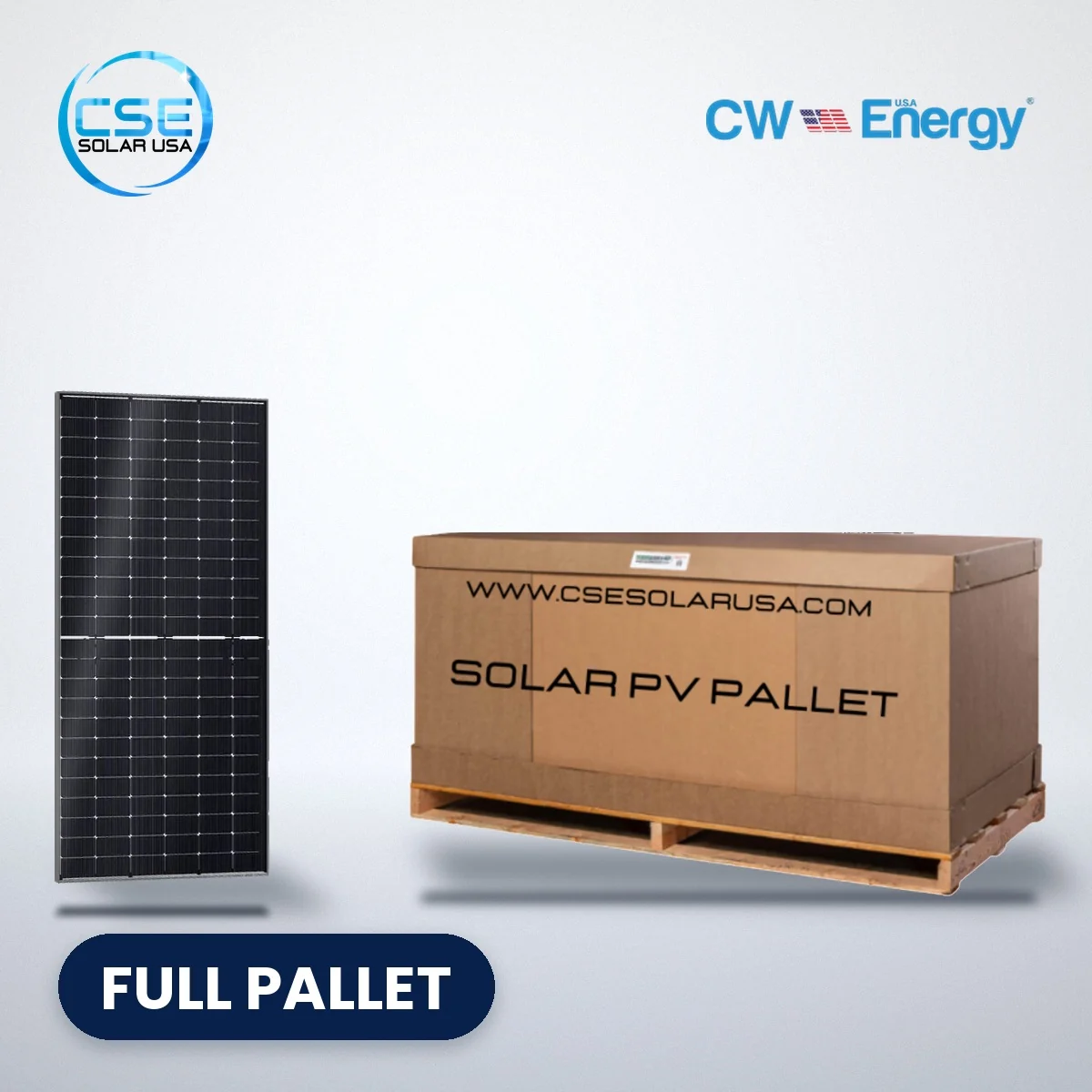

Sold by the full pallet (31 panels). Availability, lead time and freight are confirmed with every quote before anything is invoiced; CSE Solar USA does not treat supplier stock as its own inventory. Need another 144TNB10 bin (585–600 W), container quantities or a project quote? Request a CW Energy special order.
| Weight | 63.93 lbs |
|---|---|
| Dimensions | 89.68 × 44.64 × 1.37 in |
| MPN | CWT595-144TNB10 |
