FranklinWH ACCY-GENV2-US Generator Module
Original price was: $710.00.$689.00Current price is: $689.00.
16 people are viewing this product right now

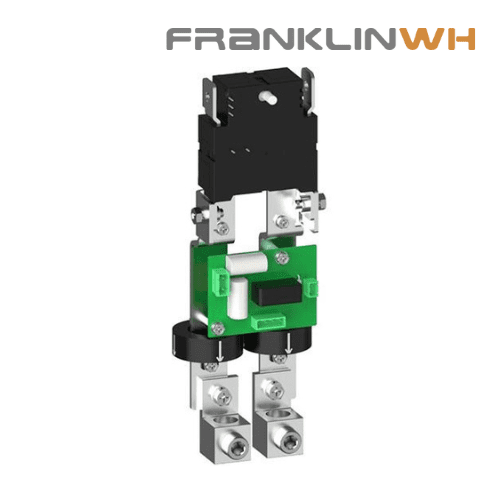

FranklinWH ACCY-GENV2-US Generator Module
The FranklinWH Generator Module (ACCY-GENV2-US) is a dedicated interface designed to integrate standby generators into the Franklin Home Power system. Installed directly inside the aGate, it enables your generator to work in harmony with your solar and batteries, creating a redundant, unlimited backup power source. You can automate generator operation based on battery levels or control it manually from the FranklinWH App.
Product Specifications
-
Max Continuous Current: 160 A
-
Voltage Range: 204 – 276 VAC (@ 240V)
-
Frequency: 60 Hz ± 5 Hz
-
Generator Support: 2-Wire Start (Dry Contact) or Utility Sensing
-
Measurement Accuracy: ± 1% (Voltage/Current)
General Data
-
Dimensions (H x W x D): 10.6″ x 3.7″ x 3.3″ (270 x 95 x 85 mm)
-
Weight: 2.2 lbs (1.0 – 1.17 kg)
-
Mounting: Internal (aGate Accessory)
-
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Frequently Asked Questions
Q1: What types of generators are compatible? The module works best with standby generators that support 2-wire start functionality (e.g., Kohler, Generac, Briggs & Stratton). It can also work with utility-sensing generators.
Q2: Does this replace an Automatic Transfer Switch (ATS)? Yes. The aGate X, combined with this Generator Module, acts as the transfer switch. You do not need a separate external ATS, which simplifies installation and reduces costs.
Q3: Can I control the generator manually? Yes. You can start or stop the generator manually at any time using the FranklinWH App, giving you full control during an emergency or for maintenance runs.
Q4: How does it save fuel? Instead of running 24/7 during an outage, the system runs the generator only to recharge the batteries and power the home. Once the batteries are charged, the generator turns off, and the home runs on silent battery power.
Q5: Where is this module installed? The ACCY-GENV2-US is installed inside the aGate unit. It is a compact component that bolts into the existing enclosure, keeping your wall clear of extra equipment.
Key Features
- Unlimited Backup Power. The Generator Module seamlessly connects a standby generator to your Franklin Home Power system. If your battery runs low during a prolonged outage (e.g., a winter storm with no sun), the module automatically starts the generator to power your home and recharge the batteries. Once the batteries are full, it shuts the generator off, ensuring you have power indefinitely.
- Smart “Gen-Start” Efficiency. Unlike traditional transfer switches that run the generator continuously during an outage, this smart module cycles the generator only when needed. It triggers the generator based on your battery’s State of Charge (SoC)—for example, starting at 20% and stopping at 95%. This intelligent cycling can save up to 50% on fuel costs and significantly reduce noise and maintenance.
- Seamless Internal Integration. Designed for a clean, professional install, the ACCY-GENV2-US fits directly inside the aGate X enclosure. It eliminates the need for a separate, bulky external Automatic Transfer Switch (ATS) or complex wiring boxes, preserving your home’s aesthetic while upgrading your energy resilience.
Franklin ACCY-GENV2-US Generator Module Specifications
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 3.3 × 3.7 × 10.6 in |
| MPN | ACCY-GENV2-US |
