Growatt APX 129~200H-S1-US High Voltage Battery System | Commercial Storage Inverter

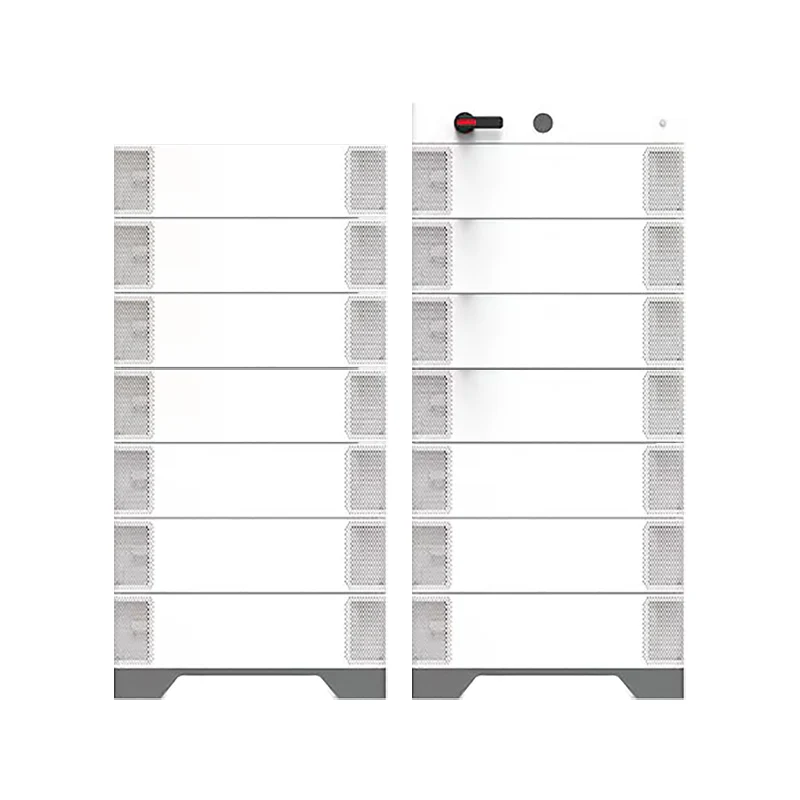

The APX 129~200H-S1 High Voltage Battery System comprises a high voltage controller (APX 1000140-C1) and multiple battery modules (APX 14.3 -B1) connected in series, including the electrochemical batteries, the battery control unit, the battery management unit, power and communication terminals and other mechanical parts. A single APX system supports the connection of 9-14 battery modules in series, increasing the capacity and maximum charge/discharge power of the battery system. The APX battery system communicates with the hybrid inverter via CAN communication. Compared with other energy storage systems, the APX system outperforms with superior charging and discharging performance, higher efficiency, flexible
capacity expansion, precise monitoring, an extended cycle life and less selfdischarge losses.

Product Overview

Key Features

• APX 86kWh~114kWh for 220V&208V WIT inverters
• APX 129kWh~200kWh for 480V WIT inverters
• Module level energy optimization
• Support to mix new and old battery modules in one system
• Commercial Battery System
• Easy installation with modular and stacked design
• Long lifespan, 10 years warranty

Control Module: APX 1000140-C1-US
Dimesion (W*D*H): 920/248/510mm | 36.2/9.6/20.0inch
Weight: 25kg/55.1lbs
Communication port: CAN
Operating voltage range: 250V-950V
Max.continuous current: 140A
Peak current: 196A,60s
Monitoring parameters: SOC, system voltage, current, cell voltage,cell temperature, PCBA temperature

Battery Module: APX 14.3P-B1-US
Dimesion (W*D*H): 920/248/510mm | 36.2/9.6/20.0inch
Weight: 135kg/297.6lbs
Nominal energy: 14.33kWh
Expansion ability: Max. 14 units in series up to 200kWh
Nominal voltage: 80V
Operating voltage range: 0~105V
Rated power: 7.16kW
Max.continuous current: 140A
Peak current: 196A,60s

APX 129.0H-S1-US Standard Included
(1) pc Control Module: APX 1000140-C1-US
(9) pc Battery Module: APX 14.3P-B1-US
(1) pc Battery Cable
(1) pc Series Cable
(2) pc Base: APX 14.3P-B1-US BASE

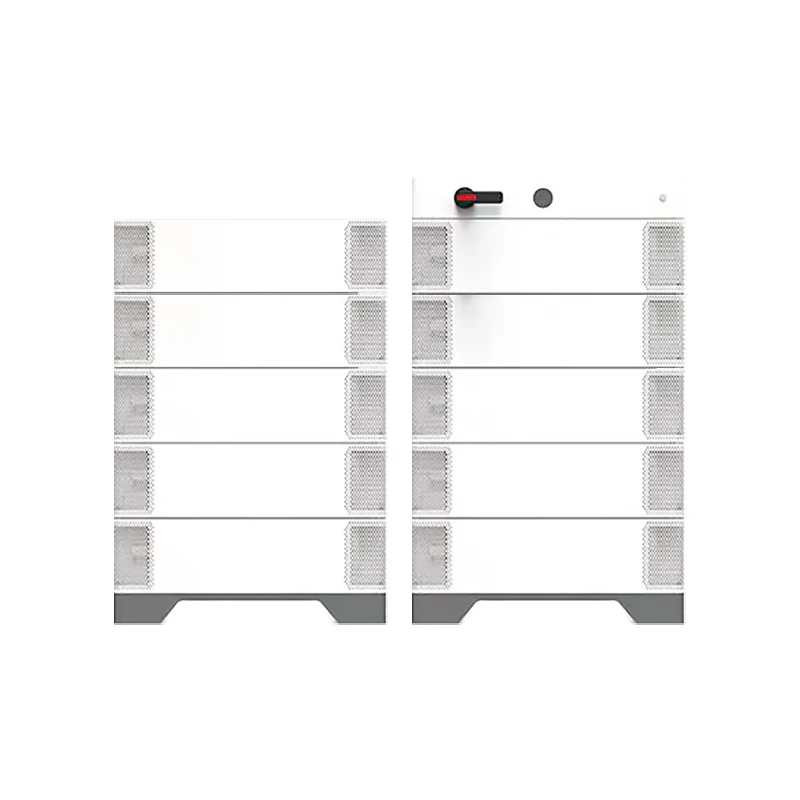

APX 143.3H-S1-US Standard Included
(1) pc Control Module: APX 1000140-C1-US
(10) pc Battery Module: APX 14.3P-B1-US
(1) pc Battery Cable
(1) pc Series Cable
(2) pc Base: APX 14.3P-B1-US BASE

APX 157.6H-S1-US Standard Included
(1) pc Control Module: APX 1000140-C1-US
(11) pc Battery Module: APX 14.3P-B1-US
(1) pc Battery Cable
(1) pc Series Cable
(2) pc Base: APX 14.3P-B1-US BASE

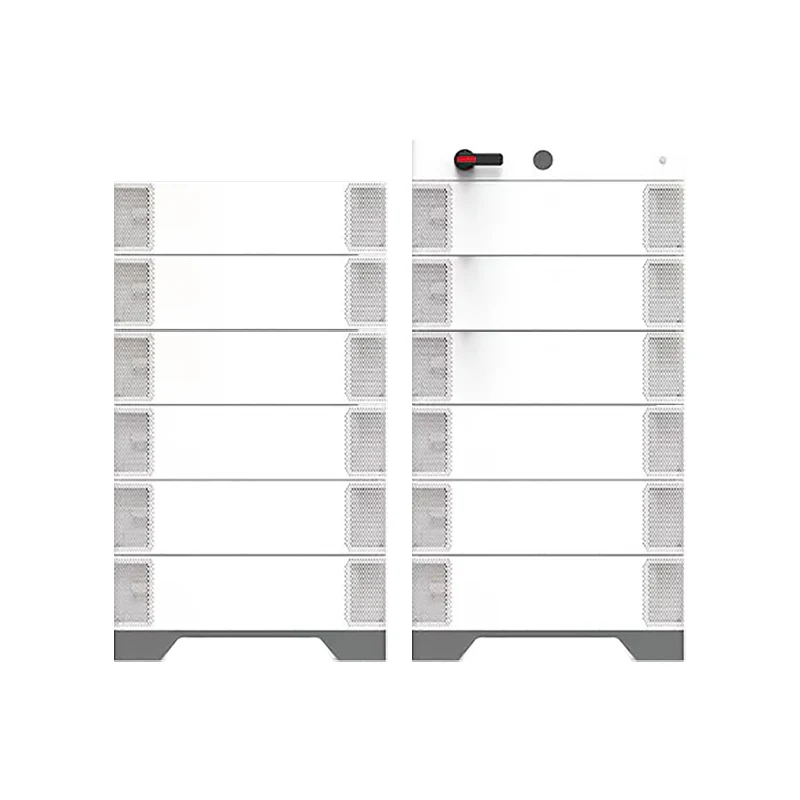

APX 172.0H-S1-US Standard Included
(1) pc Control Module: APX 1000140-C1-US
(12) pc Battery Module: APX 14.3P-B1-US
(1) pc Battery Cable
(1) pc Series Cable
(2) pc Base: APX 14.3P-B1-US BASE

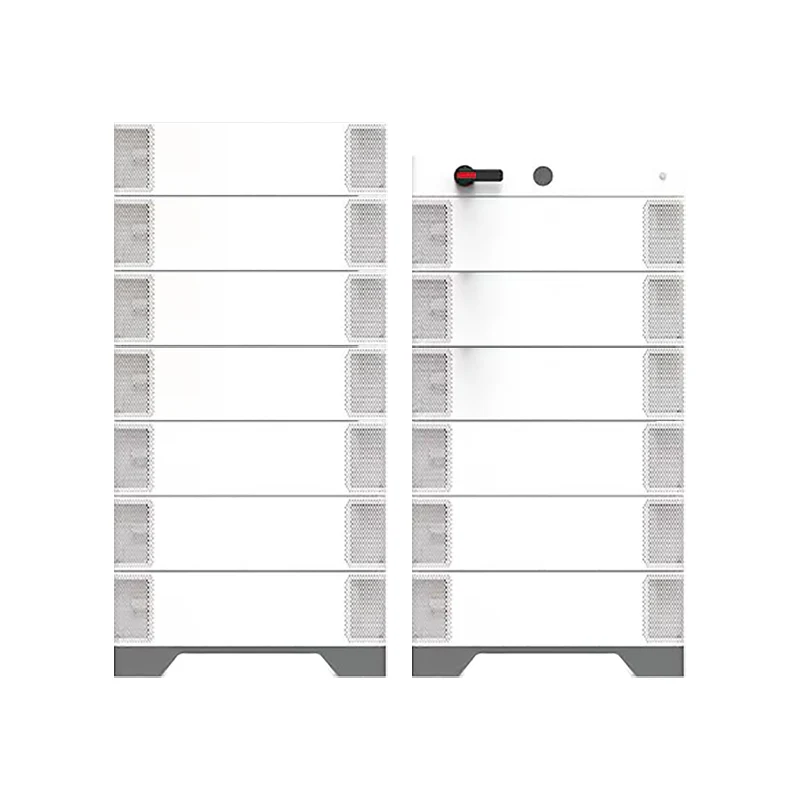

APX 186.3H-S1-US Standard Included
(1) pc Control Module: APX 1000140-C1-US
(13) pc Battery Module: APX 14.3P-B1-US
(1) pc Battery Cable
(1) pc Series Cable
(2) pc Base: APX 14.3P-B1-US BASE

APX 200.7H-S1-US Standard Included
(1) pc Control Module: APX 1000140-C1-US
(14) pc Battery Module: APX 14.3P-B1-US
(1) pc Battery Cable
(1) pc Series Cable
(2) pc Base: APX 14.3P-B1-US BASE
