SolarEdge SE120KUS 120 kW Synergy Three-Phase Inverter System (480V) – Synergy Manager + 3 Synergy Units
Request Pricing & AvailabilityRequest a Quote
24 people are viewing this product right now
- System configuration page. A SolarEdge SE120KUS inverter is built from 1 × SE-TRI-US00IBNS4 Synergy Manager (configured to 120 kW) plus 3 × USESUK-USR0INNN8 Synergy Units, with C651U power optimizers on the array.
- 120,000 W rated AC power on 480V three-phase grids; 98.5% CEC weighted efficiency (SolarEdge datasheet).
- System pricing is quoted per project (components, quantities and freight). Each component page shows its own price.
- This page previously listed the older SE120K-US08IBNZ4 Synergy Manager, which CSE no longer offers.
What makes a SolarEdge SE120KUS (120 kW) inverter

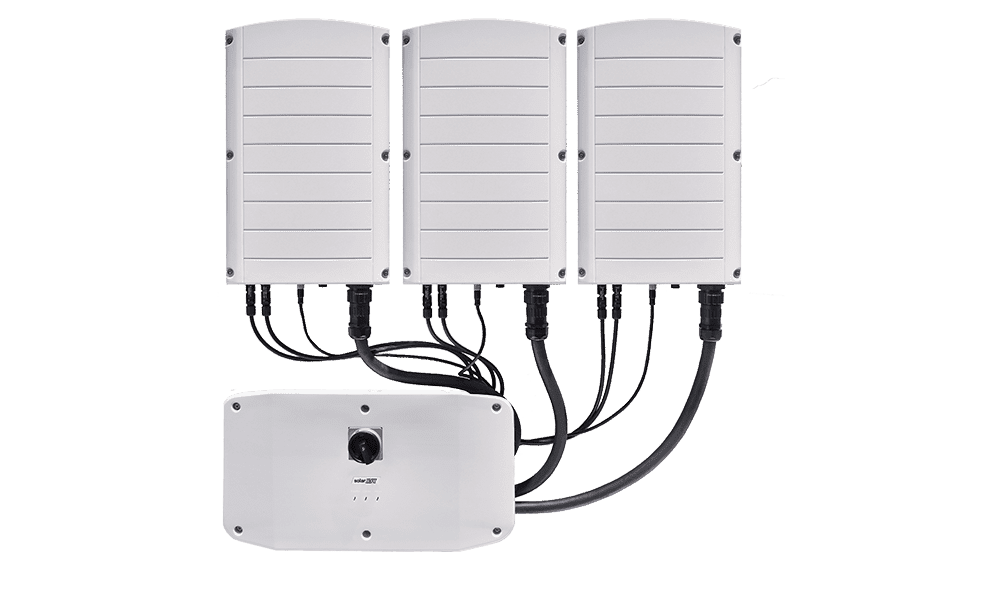

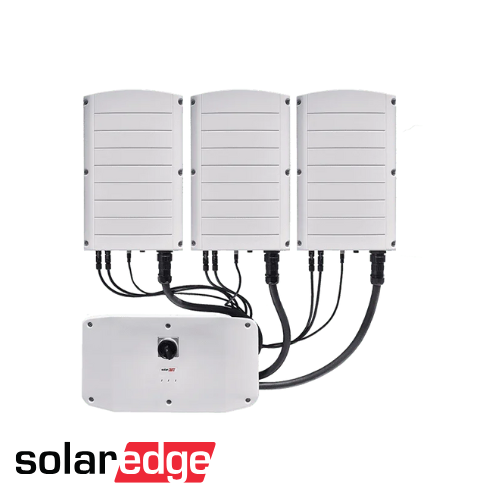

SolarEdge Three Phase Inverters with Synergy Technology are modular: a Synergy Manager plus three Synergy Units form one 120 kW inverter for 480V three-phase grids. There is no single part number for the complete SE120KUS; it is ordered as components and configured by SolarEdge SetApp at commissioning.
Pricing note: the price of a Synergy Manager is not the price of a complete 120 kW inverter. CSE quotes SE120KUS systems per project, including the manager, three Synergy Units, C651U optimizer quantities and freight.
Bill of materials (one inverter)
| Component | Qty per inverter | Role | SolarEdge domestic content |
|---|---|---|---|
| SE-TRI-US00IBNS4 Synergy Manager | 1 | Multi-input (fuse-less) Synergy Manager, configured to SE120KUS | No (not manufactured in the USA, per SolarEdge) |
| USESUK-USR0INNN8 Synergy Unit | 3 | Power units | Yes, when installed with C651U |
| C651U commercial power optimizer (C651U-1GMVMRRU) | Per array design | Module-level optimization, PV rapid shutdown (NEC 2014–2023) | Yes |
SE120KUS system specifications
| Item | SE120KUS |
|---|---|
| Grid (L-L nominal) | 480 Vac three-phase |
| Rated AC active power | 120,000 W |
| AC output voltage L-N / L-L (min-nom-max) | 244–277–305 Vac / 422.5–480–529 Vac |
| Max DC power (inverter) | 210,000 W |
| Max DC power per Synergy Unit | 70,000 W |
| Max input voltage / operating range | 1000 Vdc / 850–1000 Vdc |
| Max input current | 3 × 48.25 A |
| CEC weighted efficiency | 98.5% |
| AC frequency | 59.5–60–60.5 Hz |
| Safety standards | UL 1699B, UL 1741, UL 1741 SA, UL 1741 SB, UL 1998, CSA C22.2#107.1 |
| Grid connection standards | IEEE 1547-2018, Rule 21, Rule 14 (HI) |
| Synergy Manager | 14.17 × 22.4 × 11.6 in, 39.6 lb |
| Synergy Unit (each of 3) | 22 × 12.9 × 10.75 in, 70.4 lb |
| Enclosure / operating temperature | NEMA 3R / -40 to +140 °F (-40 to +60 °C) |
Domestic content
Per SolarEdge, the USESUK-USR0INNN8 Synergy Units and C651U optimizers are USA Domestic Content Eligible; the SE-TRI-US00IBNS4 Synergy Manager is not manufactured in the USA and is not counted. Project qualification depends on the whole project; confirm with your tax advisor.
Looking for SE120K-US08IBNZ4?
SE120K-US08IBNZ4 is an older-generation SolarEdge Synergy Manager part number that this page used to list. CSE no longer offers it. The current Synergy Manager for SE120KUS is SE-TRI-US00IBNS4. If you are servicing or expanding an existing Synergy installation, send CSE the part numbers on your installed manager and units so compatibility can be confirmed before ordering.
Request system pricing
Use Request a Quote or contact CSE with the number of inverters, module datasheet, array layout, site location and timeline. CSE confirms availability, lead time and freight for every component before an order is placed.
Documentation
- Three Phase Inverter with Synergy Technology, USA Domestic Content Eligible – datasheet (North America) (SolarEdge Knowledge Center)
Specifications on this page are taken from the SolarEdge datasheet DS-000240-NAM (June 5, 2025). SolarEdge may update its documentation; always design and install to the latest SolarEdge datasheet and installation guide.
| Dimensions | 11.6 × 22.4 × 14.17 in |
|---|
