SolarEdge SE-TRI-US00IBNS4 Three-Phase Synergy Manager (50 kW @208V / 100–120 kW @480V) – Requires 3 Synergy Units
$3,199.00 Call for AvailabilityCheck Availability
25 people are viewing this product right now
- Synergy Manager only. A complete SolarEdge Synergy inverter needs this manager plus 3 × USESUK-USR0INNN8 Synergy Units (sold separately). The price shown is for the manager only, not a complete system.
- Configurable to SE50KUS (208V) or SE100KUS / SE110KUS / SE120KUS (480V).
- Multi-input, fuse-less version (fusing not included), built-in DC disconnect, monitored AC/DC Type II surge protection.
- Per SolarEdge, the Synergy Manager is not manufactured in the USA and is not counted in domestic content percentages.
- 39.6 lb; 14.17 × 22.4 × 11.6 in. Availability, lead time and freight are confirmed by CSE per project.

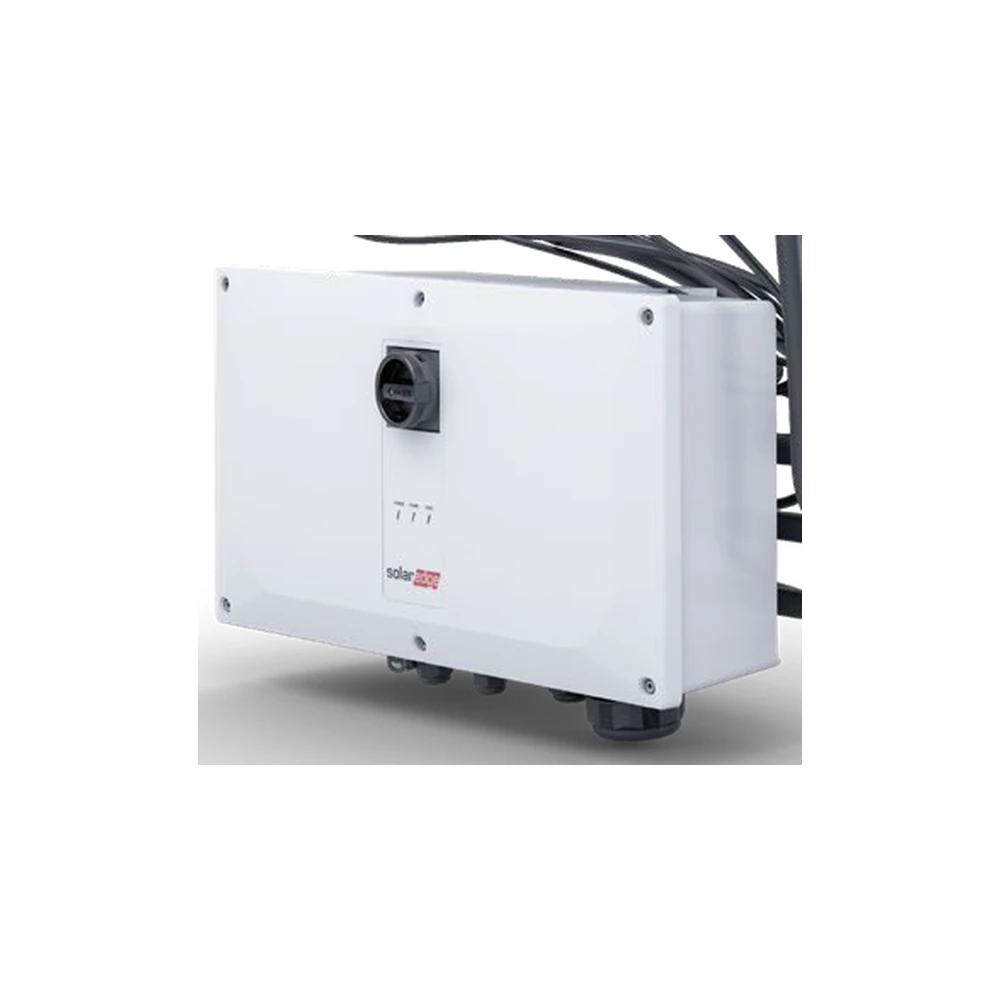

SolarEdge Three Phase Synergy Manager
This listing is the Synergy Manager only. A complete SolarEdge Synergy inverter is built from one SE-TRI-US00IBNS4 Synergy Manager plus three USESUK-USR0INNN8 Synergy Units, sold separately. The price shown is not the price of a complete 50–120 kW inverter.
SE-TRI-US00IBNS4 is the multi-input, fuse-less Synergy Manager (fusing is not included). SolarEdge configures it as SE50KUS for 208V grids, or SE100KUS, SE110KUS or SE120KUS for 480V grids. PV rapid shutdown (NEC 2014–2023) is built in when the system uses C651U power optimizers.
Inverter specifications (Synergy Manager + 3 Synergy Units)
| SE50KUS | SE100KUS | SE110KUS | SE120KUS | |
|---|---|---|---|---|
| Grid (L-L nominal) | 208 Vac | 480 Vac | 480 Vac | 480 Vac |
| Rated AC active power | 50,000 W | 100,000 W | 110,000 W | 120,000 W |
| AC output voltage L-N (min-nom-max) | 105–120–132.5 Vac | 244–277–305 Vac | 244–277–305 Vac | 244–277–305 Vac |
| AC output voltage L-L (min-nom-max) | 183–208–229 Vac | 422.5–480–529 Vac | 422.5–480–529 Vac | 422.5–480–529 Vac |
| Max DC power (inverter) | 87,500 W | 175,000 W | 210,000 W | 210,000 W |
| Max input voltage | 600 Vdc | 1000 Vdc | 1000 Vdc | 1000 Vdc |
| Operating voltage range | 370–600 Vdc | 850–1000 Vdc | 850–1000 Vdc | 850–1000 Vdc |
| Max input current | 3 × 46.5 A | 3 × 40 A | 3 × 48.25 A | 3 × 48.25 A |
| CEC weighted efficiency | 97% | 98.5% | 98.5% | 98.5% |
General specifications
| Item | Value |
|---|---|
| Line connections / grids | 3W + PE, 4W + PE; WYE (TN-C, TN-S, TN-C-S, TT, IT), Delta (IT) |
| AC frequency | 59.5–60–60.5 Hz |
| DC inputs (multi-input manager) | 9 inputs / 3 pairs; 6–12 AWG |
| Night-time consumption | < 12 W (3-unit inverter) |
| Communications | 2 × RS485, Ethernet, Wi-Fi (optional), cellular (optional) |
| Arc-fault / rapid shutdown / PID | Built-in UL 1699B / NEC 2014–2023 built-in when paired with C651U / night-time PID rectifier built-in |
| Surge protection | AC, DC and RS485 Type II, field-replaceable, integrated (DC/AC monitored) |
| DC disconnect | Built-in |
| Safety standards | UL 1699B, UL 1741, UL 1741 SA, UL 1741 SB, UL 1998, CSA C22.2#107.1, Canadian AFCI per T.I.L. M-07 |
| Grid connection standards | IEEE 1547-2018, Rule 21, Rule 14 (HI) |
| Emissions | FCC Part 15 Class A |
| Synergy Manager dimensions (H × W × D) | 14.17 × 22.4 × 11.6 in (360 × 560 × 295 mm) |
| Synergy Manager weight | 39.6 lb (18 kg) |
| Operating temperature | -40 to +140 °F (-40 to +60 °C) |
| Enclosure / noise | NEMA 3R / < 67 dBA; mounting brackets provided |
| Warranty | 12–20 years per the SolarEdge datasheet; see SolarEdge’s current warranty terms |
Domestic content
Per SolarEdge, the Synergy Manager is not manufactured in the USA and is not part of the domestic content percentages. The domestic content eligibility of a Synergy inverter comes from the USESUK-USR0INNN8 Synergy Units installed with C651U power optimizers.
Pricing, availability and ordering
The price shown is CSE Solar USA’s listed price for one Synergy Manager (Synergy Units and optimizers are priced separately). Commercial SolarEdge equipment is confirmed per project: before an order is placed, CSE verifies current availability, lead time and freight to your site. Use Check Availability or contact CSE with your project location, quantities and timeline.
Documentation
- Three Phase Inverter with Synergy Technology, USA Domestic Content Eligible – datasheet (North America) (SolarEdge Knowledge Center)
Specifications on this page are taken from the SolarEdge datasheet DS-000240-NAM (June 5, 2025). SolarEdge may update its documentation; always design and install to the latest SolarEdge datasheet and installation guide.
| Weight | 39.6 lbs |
|---|---|
| Dimensions | 22.4 × 11.6 × 14.17 in |
| MPN | SE-TRI-US00IBNS4 |
