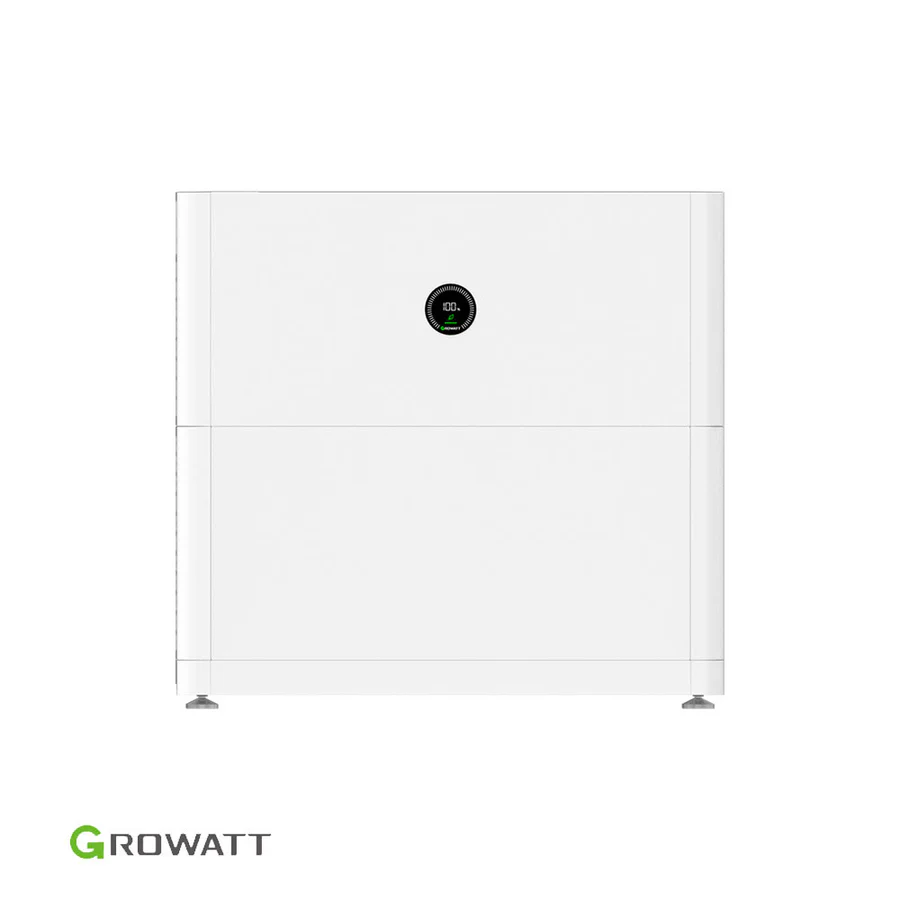

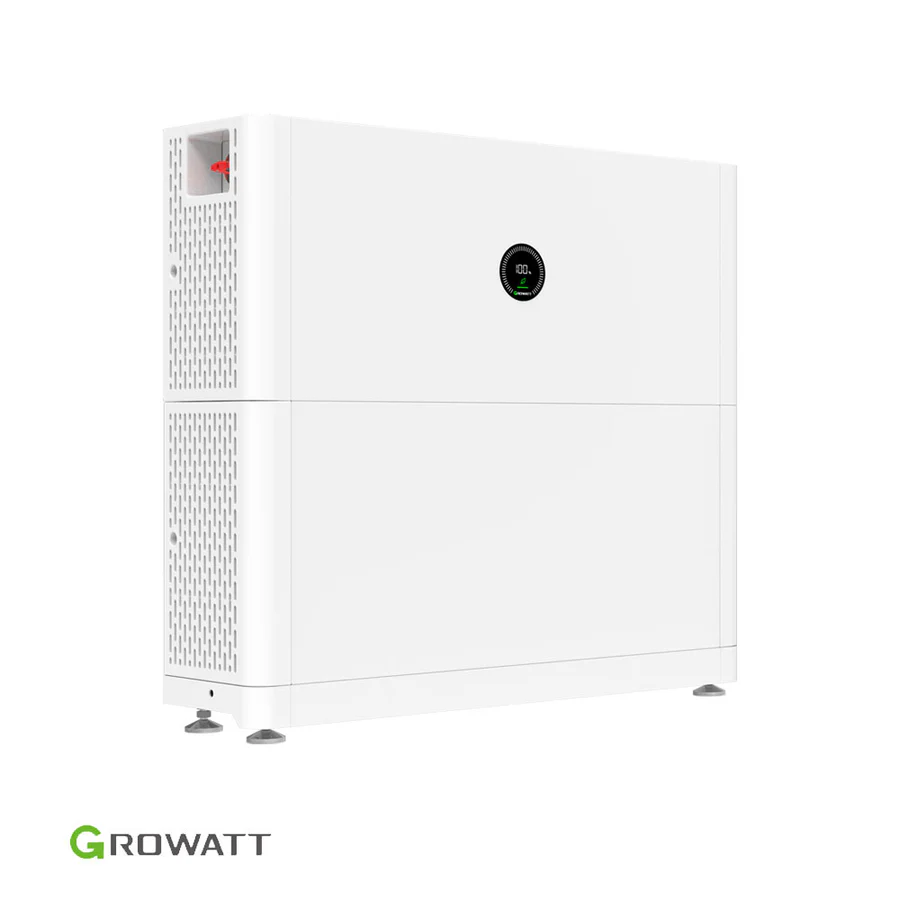

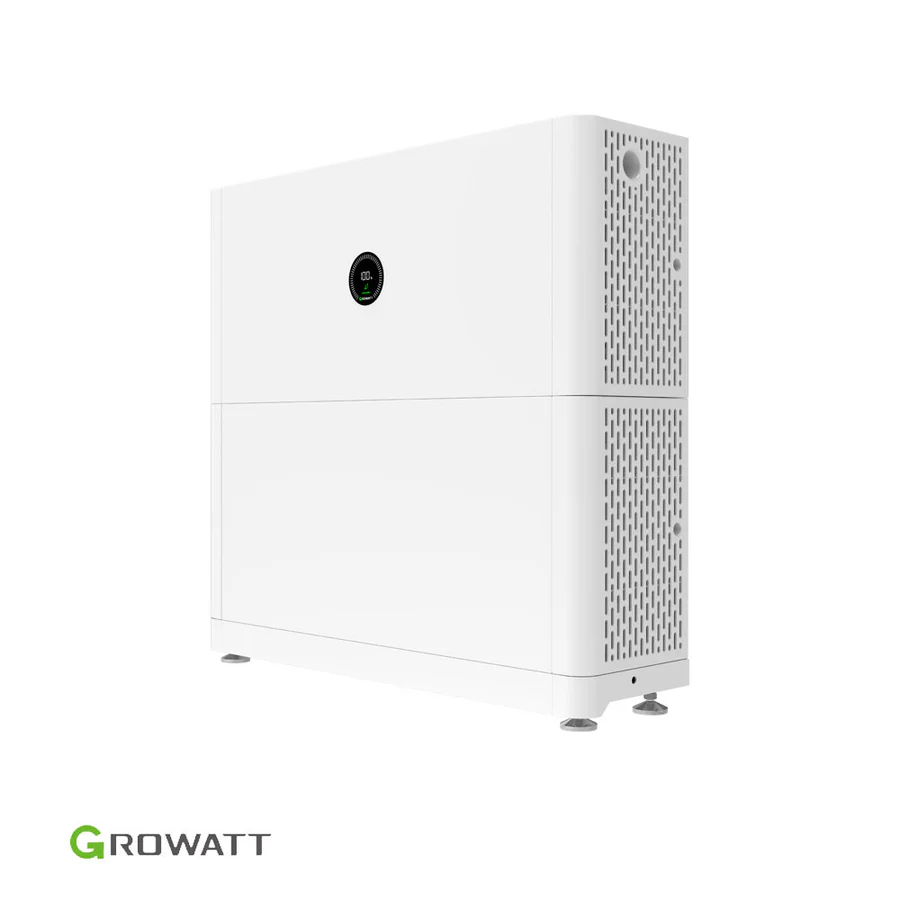

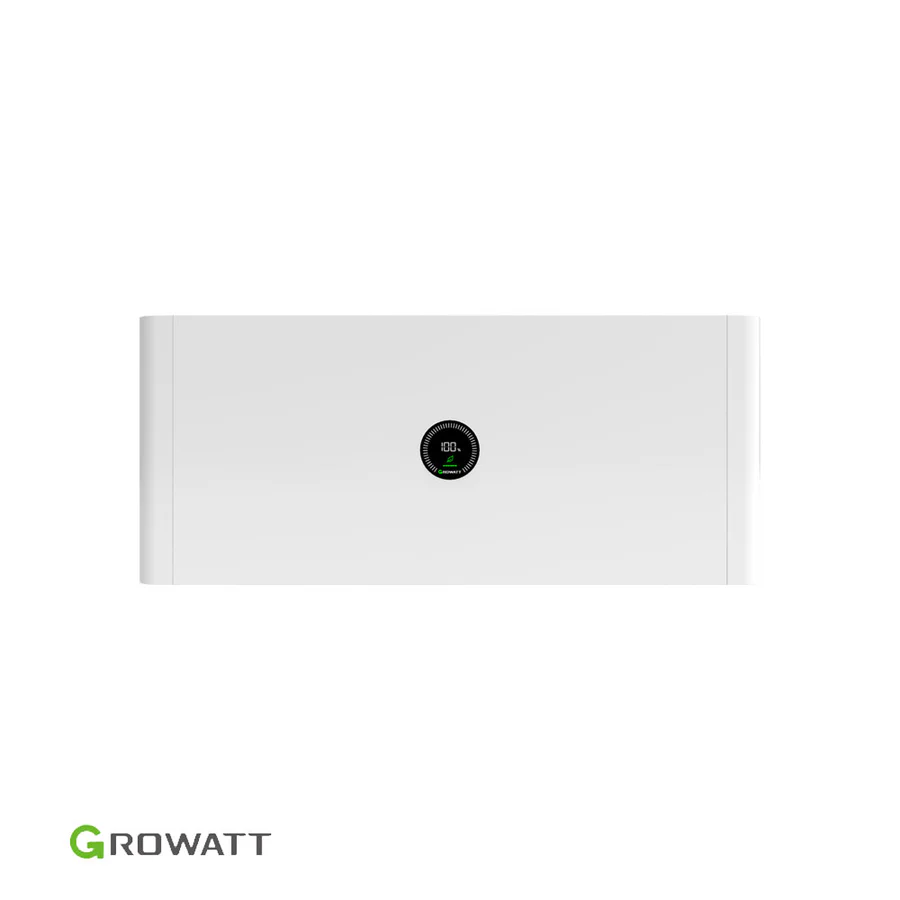

Growatt APX 5.0kWh High Voltage Battery
$2,250.00 – $9,199.00
21 people are viewing this product right now

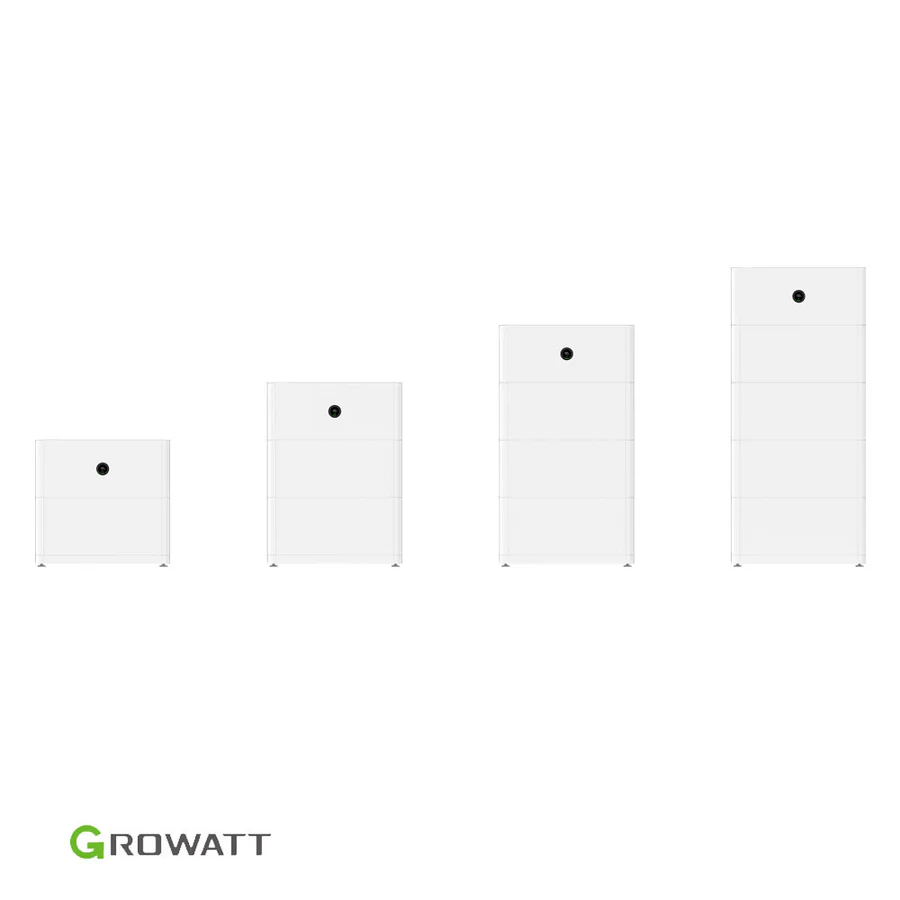

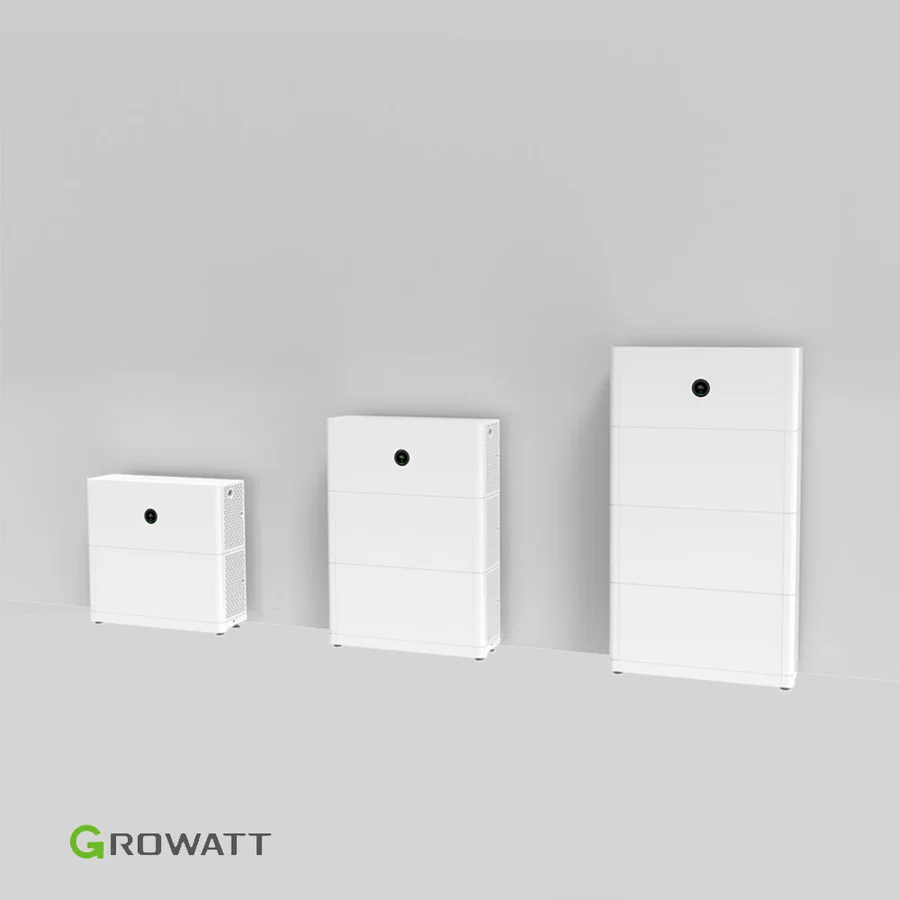

- Flexible capacity options, 5kWh to 30kWh
- Module level energy optimization
- Support to mix new and old batteries in one system
- Easy installation with modular and stacked design
- Long lifespan, 10 years warranty
- Compatible inverter: Growatt MIN 3000-11400TL XH-US

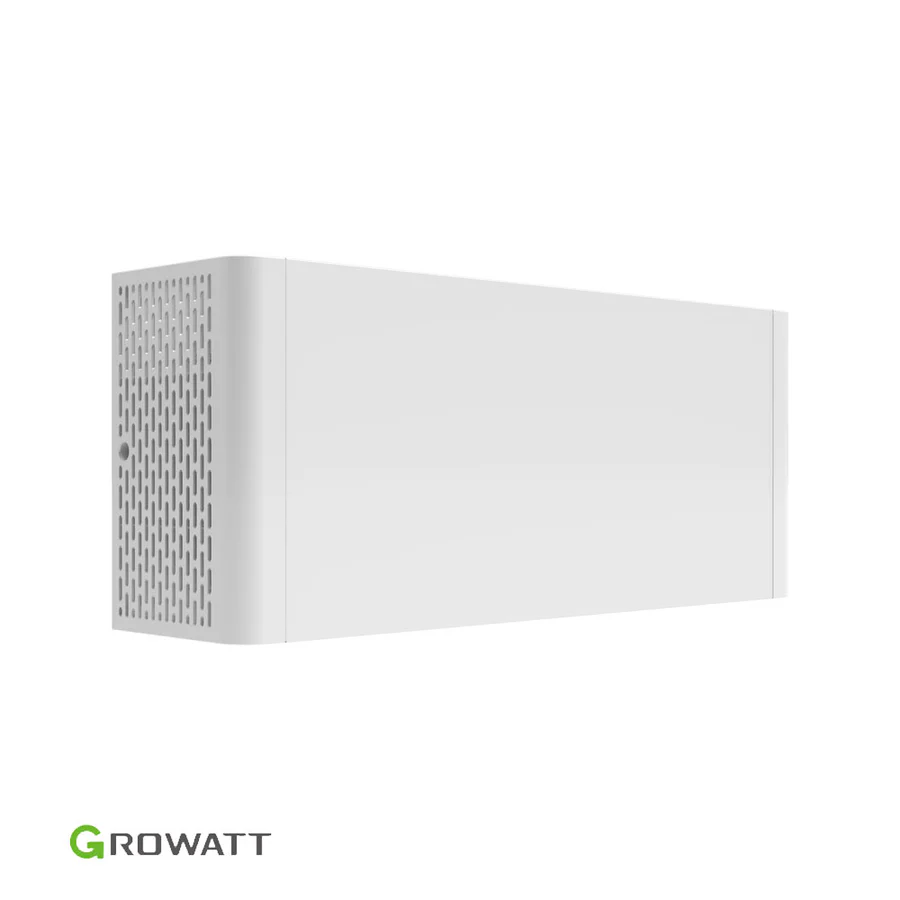

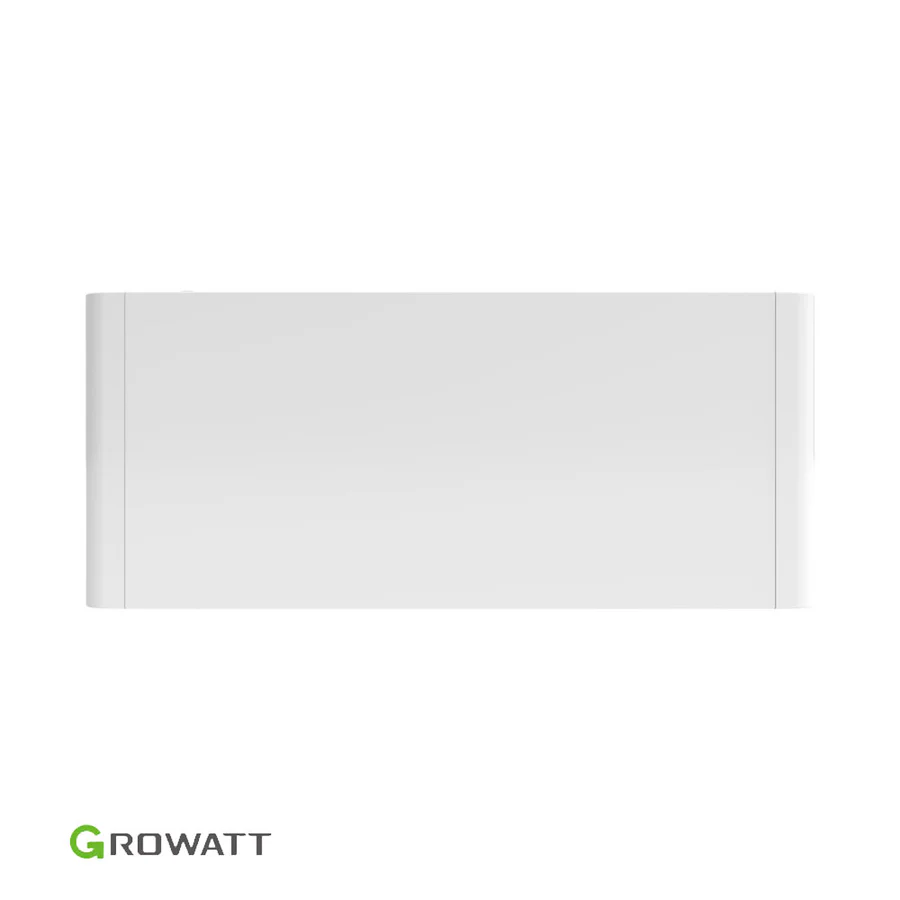

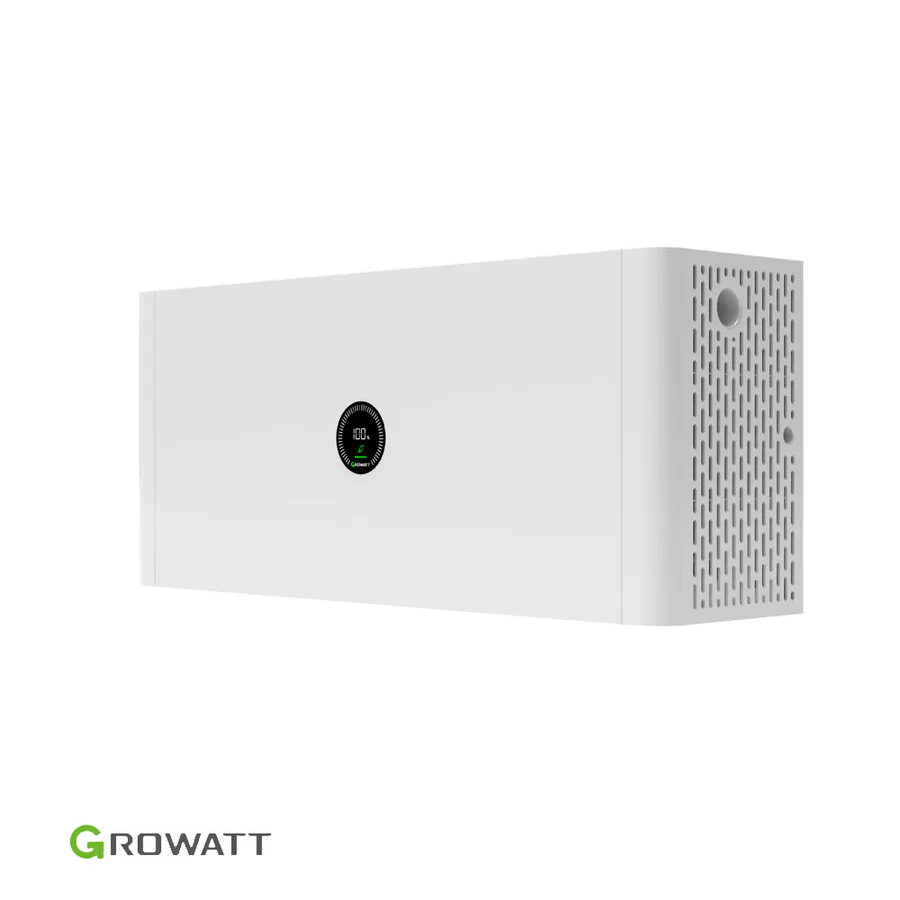

Growatt’s new APX HV battery system is composed of an APX 55042-P0-US (hereinafter referred to as Power Module) and multiple APX 5.0P-B1-US battery modules (hereinafter referred to as Battery Module, the maximum number of Battery Module connected in parallel is 6), enables a flexible capacity from 5kWh to 30kWh. The APX HV battery is compatible with Growatt MIN series Grid-tie inverters (3~11.4kW), and the entire system can switch between Grid-tied and Off-grid modes through the Growatt backup box( ATS-US or SYN 200XH-US)
The APX battery system adopts cobalt-free LiFePO4 chemistry and four-level protection by BMS, modular energy optimizer, fuse, and aerosol to ensure its enhanced safety, reliability, and long lifespan. Furthermore, the modular energy optimization ensures the system fully uses every pack’s energy, mixes packs of new and old batches, and mixes packs of different capacity, which offer the most flexible system application
The stackable design of the APX HV battery system makes it easier to install with internal plugs, requiring no extra cable connections. So both installation and maintenance were made simple.
Product Overviews:
| Manufacturer | Growatt |
| Type | LiFePO4 High Voltage |
| Battery Capacity | 5.0kWh |
| Nominal Voltage | 400V |
| Nominal Power | 2.5kW |
| Compatible inverters | MIN 3000-11400TL-XH-US |
| Easy Scalable | Easy scale up to 30kWh |
| Dimensions(W*D*H) | 27.1*7.3*27.8inch (690*185*705mm） |
| Weight | 159 lbs ( 72kg ) |
| Installation | Wall-mounted or Floor Stand |
| IP Protection | IP66/NEMA 4X |
| Certificate | UL9540A, UL1973, FCC, UN38.3 |
| Warranty | 10 Years |
What is included in this APX 5kWh Battery Storage System:Battery Module: 1 * APX 5.0P-B1-US Power Module: 1* APX 55042-P0-US |
Features:
- Easy Installation:
– Stacked installation without a cable connection
– Module automatic recognition - Environment Adaptability
– Wide temperature of -10°C~50°C
– IP 66 Design - Safety and Reliability:
– Cobalt-free LiFePO4 battery
– Built-in modular energy optimization
– Soft start to defend the system from surges
– Passive protection by fuse and aerosol - Expansion Flexibility
– Battery soft-switching parallel connection
– Mixed packs of new and old batches
– Mixed packs of different capacity
– Mixed packs of different suppliers
Product Specifications
- Nominal Voltage: 400V
- Operating Voltage: 380~550V
- Nominal Power: 2.5kW
- Peak output Power: 3.5kW, 60s
- Power module Max Current: 32A
- DOD: 90%
- Cycle Life: >6000 cycles
- IP Protection IP66 /NEMA 4x
- Communication Protocol: RS485, CAN
- Connect style: Parallel
| Weight | 159.0 lbs |
|---|---|
| Dimensions | 27.1 × 7.3 × 27.8 in |
| MPN | S-APX5-US |
| APX HV Battery US | APX 5.0P-S0-US (1 Power Module+1 APX Battery Module+1 Power Base), APX 10.0P-S0-US (1 Power Module+2 APX Battery Module+1 Power Base), APX 15.0P-S0-US (1 Power Module+3 APX Battery Module+1 Power Base), APX 20.0P-S0-US (1 Power Module+4 APX Battery Module+1 Power Base), APX 25.0P-S0-US (1 Power Module+5 APX Battery Module+2 Power Base), APX 30.0P-S0-US (1 Power Module+6 APX Battery Module+2 Power Base) |
