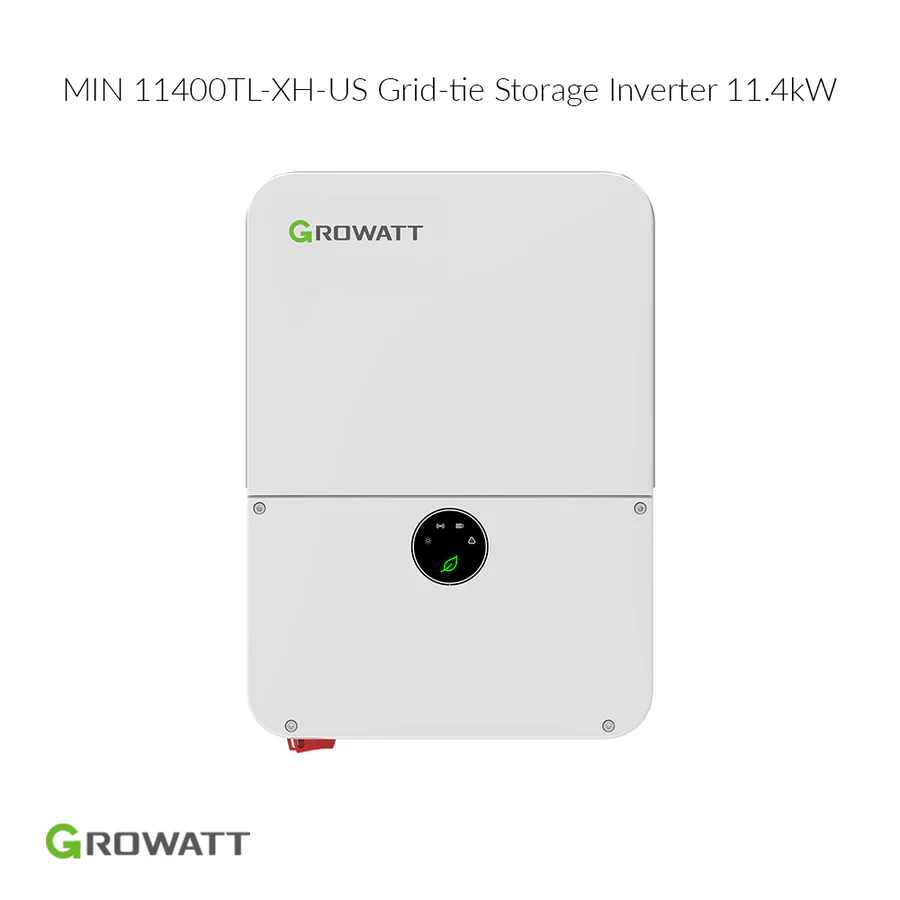

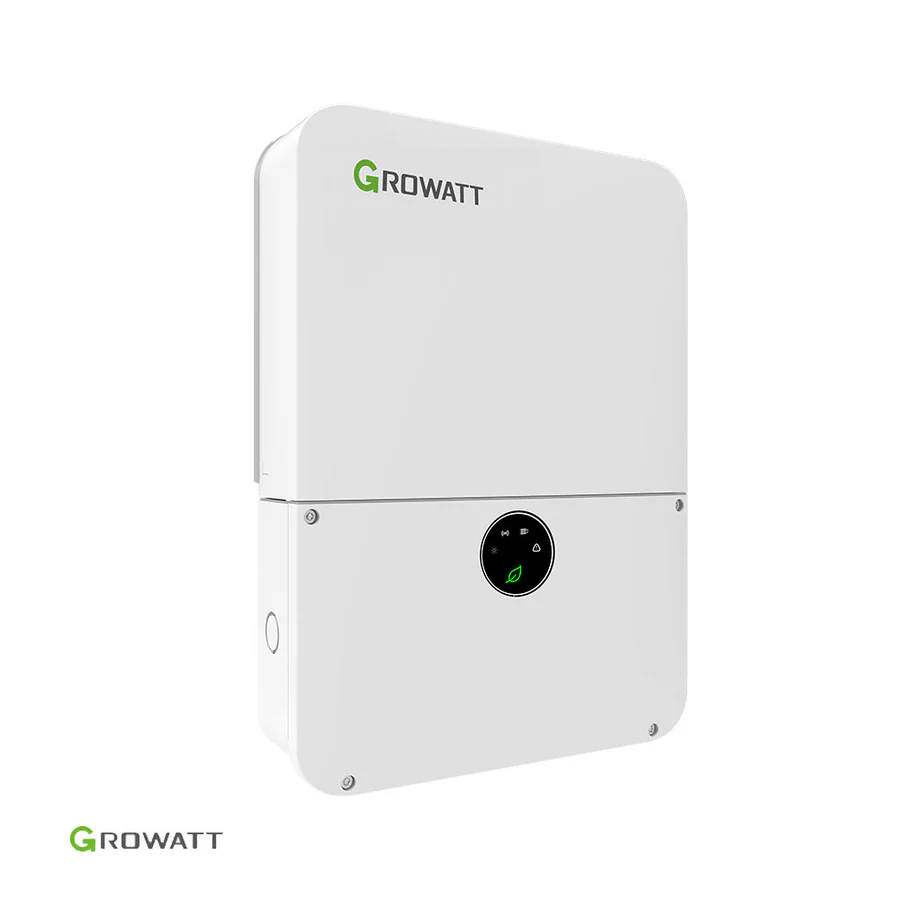

Growatt MIN 11400TL-XH-US 11.4kW Grid-Tie Storage inverter | Compatible with Growatt ARO/APX HV Battery
$1,649.00
49 people are viewing this product right now
- Battery Ready for DC Coupled and AC Coupled systems
- Certificated UL9540 with Growatt ARO/APX battery system.
- High yields:
– DC/AC Ratio up to 2.0
– MPPT trackers up to 4
– Max. efficiency 98.5% - With backup power and dark start operations
- Support RSD and AFCI
- Support multiple energy management modes:
– Self-consumption;
– Zero Export;
– TOU and Off-grid - Comply with UL1741SA/SB, CA Rule 21 & HECO
- V1/V2 pairs with ATS for Partial home backup, V3 pairs with SYN for whole home backu
The Growatt MIN 11400TL XH-US is a cutting-edge Grid-Tie inverter with multi-functional for building battery storage systems, compatible with Growatt ARO/APX HV battery. This model was designed specifically for residential energy storage systems, it also can support off-grid and solar systems when paired with Growatt ATS(Auto Transfer Switch).
The WiFi module is a plug-and-play monitoring device able to be connected directly to your inverter, allowing you to monitor the status of your power system online via your mobile phone or Website portal.
Product Overviews:
| Manufacturer | Growatt |
| Type | Grid-Tie / Battery Storage |
| AC Power | 11.4kW |
| MPP Trackers | 4 |
| MPPT Voltage Range | 50~550V |
| Max Efficiency | 98.5% |
| Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
| Electronic Protection Degree | IP65 ( NAME4X ) |
| Warranty | 10 years |
| Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
| Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
Key Features:
- Leading Functions:
– Whole home backup
– Dark start operation
– Support RSD, AFCI, and RGM meter - High Yields:
– DC/AC Ratio up to 2.0
– Max. efficiency 98.5% - System Compatibility
– DC-coupled and AC-coupled systems
– Self-consumption, Zero Export, TOU, and Off-Grid
– UL1741SA/SB, CA Rule 21 & HECO
Product Specifications:
PV INPUT
- Max PV Input Power:22.8 kW
- Max Input Voltage: 600V
- Full load Voltage Range: 235~500V
- Max Input Current per MPTT: 13.5A
- Max Short-circuit Current per MPTT: 16.9A
- MPP Trackers: 4
- Strings per MPP Tracker: 2
Battery Connection
- Battery Voltage Range: 360~550V
- Rated Battery Voltage: 400V
- I/O DC Current: 14.3A
- I/O DC Power: 5.0kW
AC OUTPUT (GRID)
- Nominal Power: 11.4kW
- Max Output Current: 47A
- Nominal AC Voltage: 208/240V
GENERAL DATA
- Dimensions(W*H*D): 15.8*25.2*7.4 inch( 400*638*187mm)
- Weight: 45.2lbs (20.5kg)
- Installation: Indoor, Outdoor, Wall-mounted
- Monitoring Module: WiFi+ LAN, 4G(Optional)
| Weight | 45.2 lbs |
|---|---|
| Dimensions | 15.8 × 25.2 × 7.4 in |
| MPN | MIN 11400TL-XH-US |
