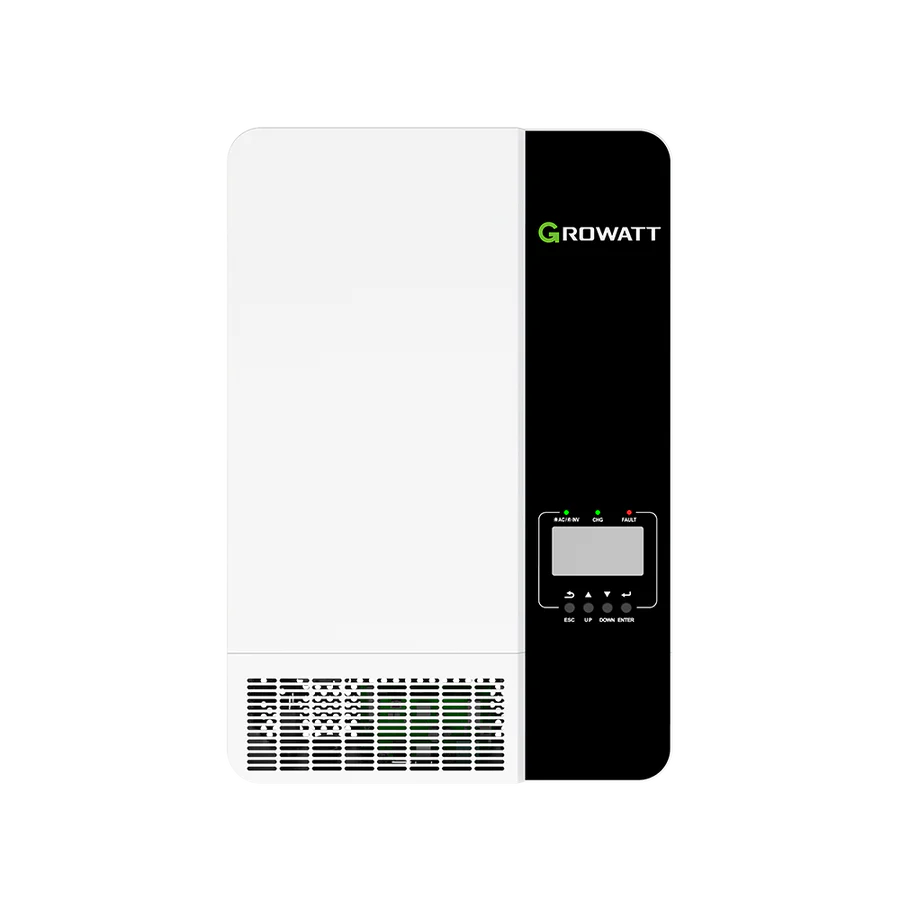

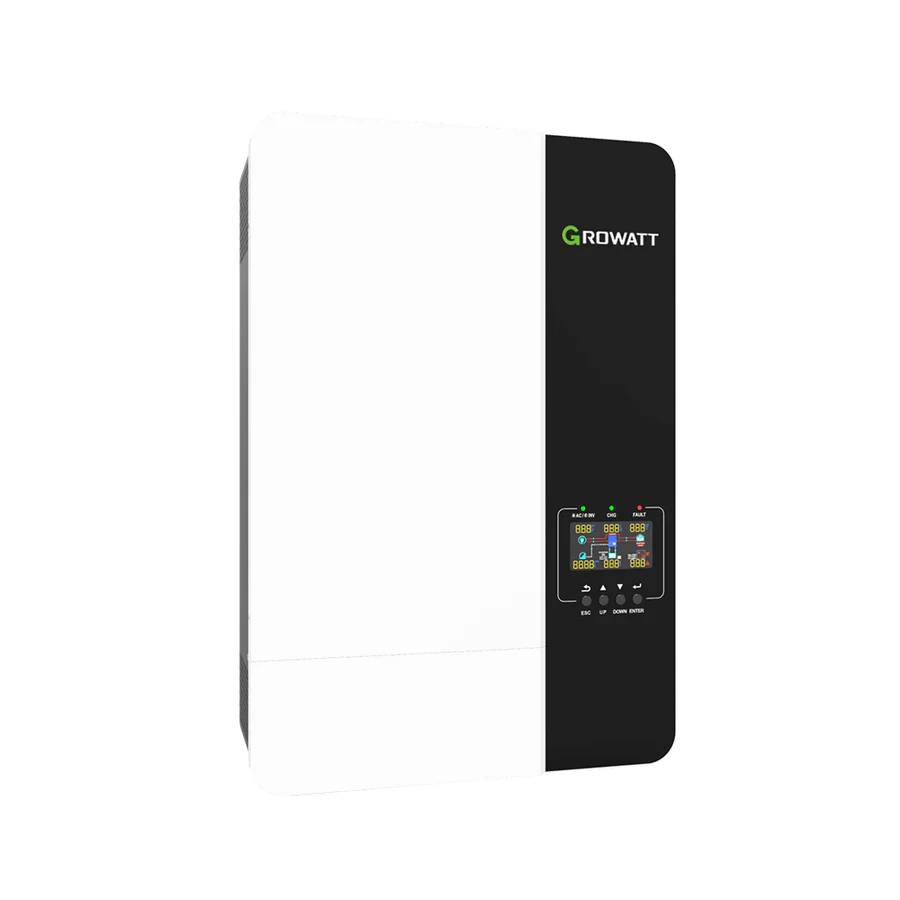

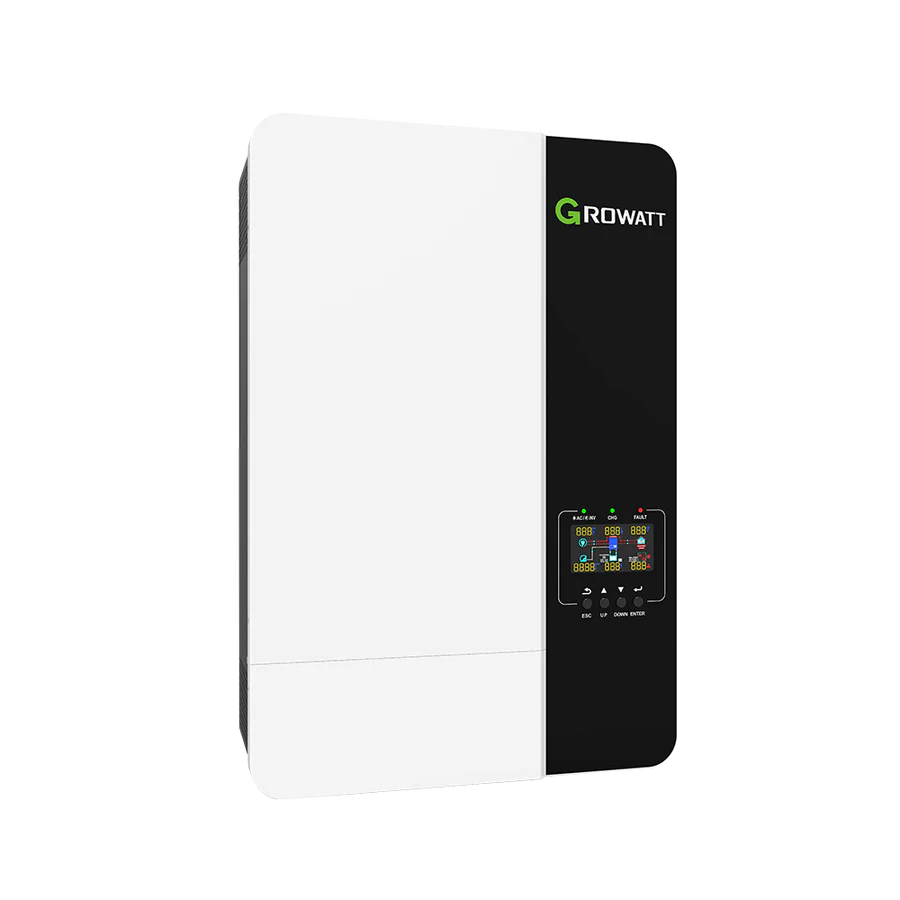

Growatt SPF 3500TL LVM-US 3.5kW Off-Grid inverter
$779.00
44 people are viewing this product right now
- ntegrated MPPT charge controller.
- Equalization charging function.
- Work with or without battery
- PV input voltage up to 280VDC.
- Generator connection available
- Configurable grid or solar input priority.
- Optional WIFI/GPRS remote monitoring
- Support parallel operation for capacity expansion up to 21kW.
- PV and grid power the load jointly if PV energy is unsufficient.
- Flexibly schedule the Inverter charging and discharging time.
- WiFi dongle included
The Growatt SPF 3500TL LVM-US is perfect for your essential loads! It is a multifunctional off-grid solar inverter, integrated with an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module all-in-one machine, which can work with batteries or without batteries. This is perfect for off-grid/backup power and self-consumption applications. The transformerless design provides reliable power conversion in a compact size.
Product Overviews:
| Manufacturer | Growatt |
| Type | Grid-Off |
| Rated Power | 3.5kW |
| MPP Trackers | 1/1 |
| Max DC PV Input Current | 80A |
| Max DC PV Array Voltage | 280V |
| Max Efficiency | >90% |
| Warranty | 2 Years |
| Communication | ShineWiFi-F/ ShineGPRS-F |
Key Features:
- Scalable & Flexible:
– Multi-customized modes for diverse scenarios
– Up to 6 units in parallel for capacity extension
– Support Multiple power sources, PV, Battery, Diesel generator, and utility
– Compatible with lithium, lead-acid - High Yields:
– DC/AC ratio up to 1.2
– 2 times peak power ability
– Output power factor up to 1.0 - Smart & Reliable
– Support WiFi and GPRS Communication for remote monitoring
– PV keeper platform for local commissioning
– Timing charging and output control
Product Specifications:
Technical details
Rated Power: 3500VA/ 3500W
Surge Power: 7000VA
Efficiency (Peak): 90%
Waveform: Pure Sine Wave
Solar Charge
Maximum PV Array Power: 4500W
MPPT Range @ Operating Voltage: 120VDC ~ 225VDC
Maximum PV Array Open Circuit Voltage: 280VDC
Maximum Solar Charge Current: 80A
AC Charger
Charge Current: 40A
AC Input Voltage: 120 VAC
Selectable Voltage Range: 95-140 VAC (For Personal Computers); 65-140 VAC (For Home Appliances)
Frequency Range: 50Hz/60Hz (Auto-sensing)
General Data
Dimension (D/W/H): in mm: 13/ 19.1/ 5.3 inch (330/485/135mm )
Net Weight: 27lbs
Warranty: 2 Years
| Weight | 27 lbs |
|---|---|
| Dimensions | 13 × 19.1 × 5.3 in |
| MPN | S-SPF3500-US |
