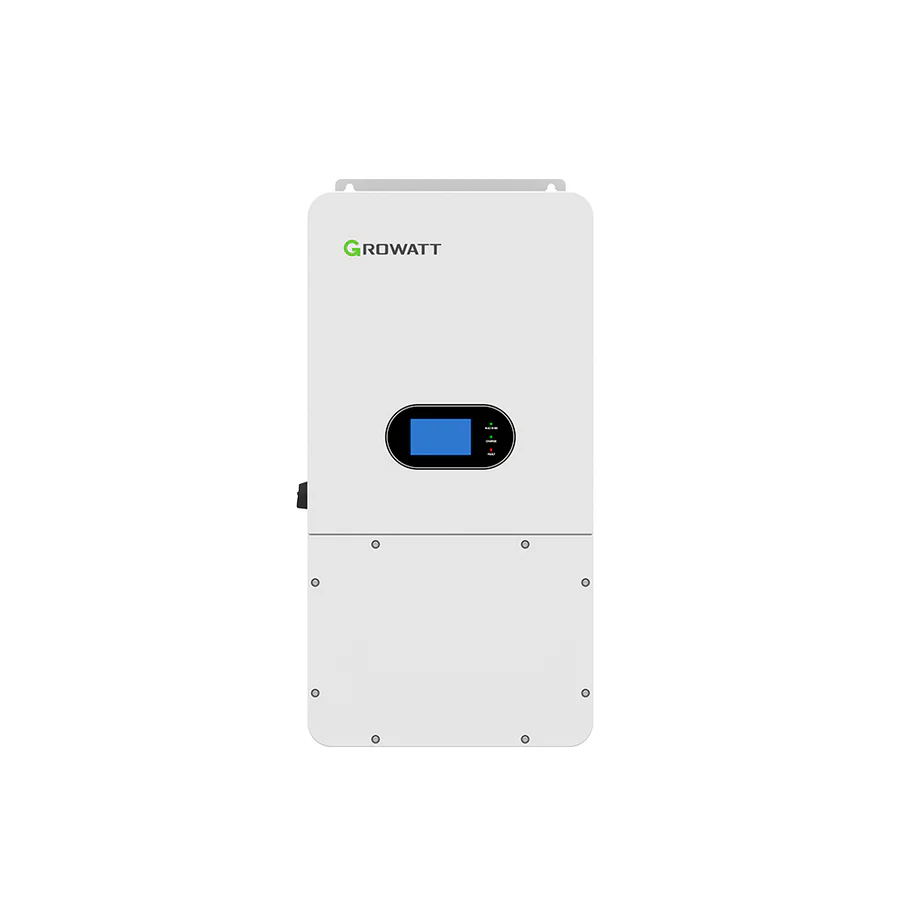

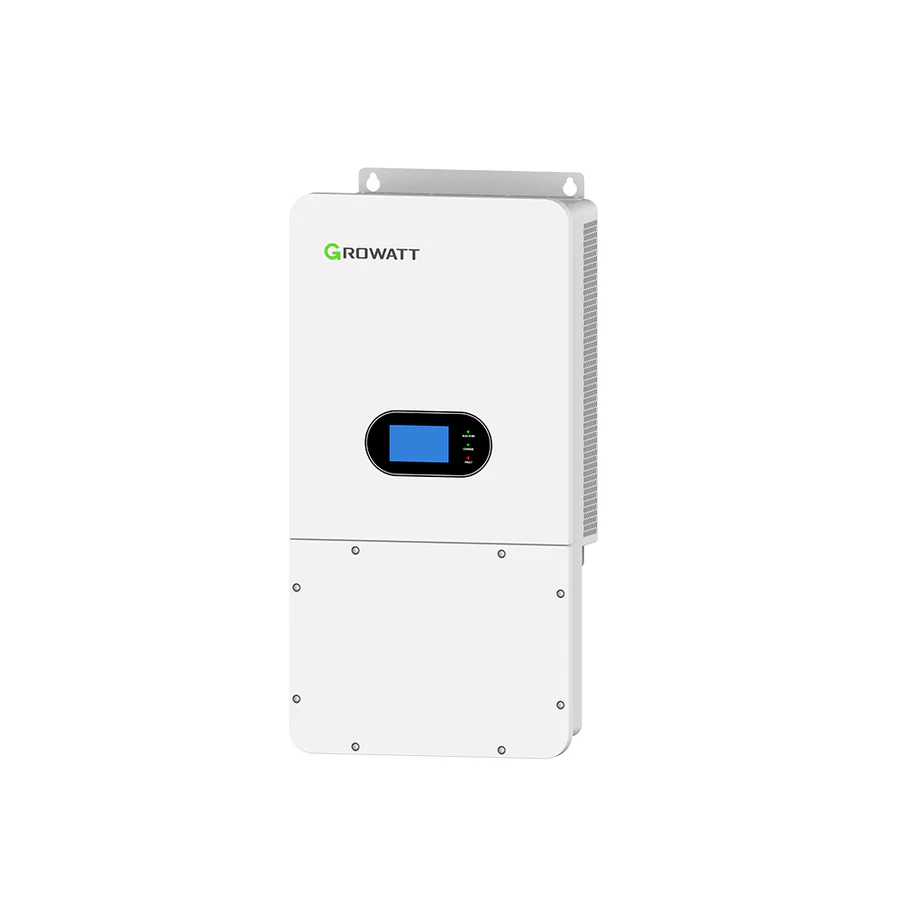

Growatt SPH 10000TL-HU-US 48V 10.0KW Split-Phase Hybrid Inverter | 15000W PV Input| 10000W Output | 120V/240V Split-Phase | Compatible with Growatt AXE LV Battery and Lead-acid Battery

The Growatt SPH 10000TL-HU-US 48V 10kW hybrid inverter offers split phase output at 120/240Vac, allow maxmium 15000W PV input and It includes 3 built-in MPPTs and protection against overload, over temperature, and short circuits. Additionally,. It features configurable battery charging current and voltage, as well as AC/Solar/Generator charger priority settings via its touch screen. The SPH 10000TL-HU-US 10kW hybrid inverter can compatible with both grid voltage and generator power, it automatically restarts when AC power is lost. The inverter’s smart battery charger is designed for optimal battery performance and supports WIFI/4G/Bluetooth monitoring. Additionally, it allows for programmable supply priority between battery and grid, and supports multiple operation modes: On Grid Mode, Self-consumption Mode, and Zero Export Limit.

Product Overview

Key Features

Leading Functions
– UPS function, 10ms transition
– Scalable system available
– Up to 200A charging/discharging current

High Yields
– DC/AC ratio up to 1.5
– MPP trackers up to 3
– Max. efficiency 97.5%

System Compatibility
– Support DC-Coupled AC-Coupled System;
– Support diesel and gas generator
– Support Lithium battery and lead-acid battery

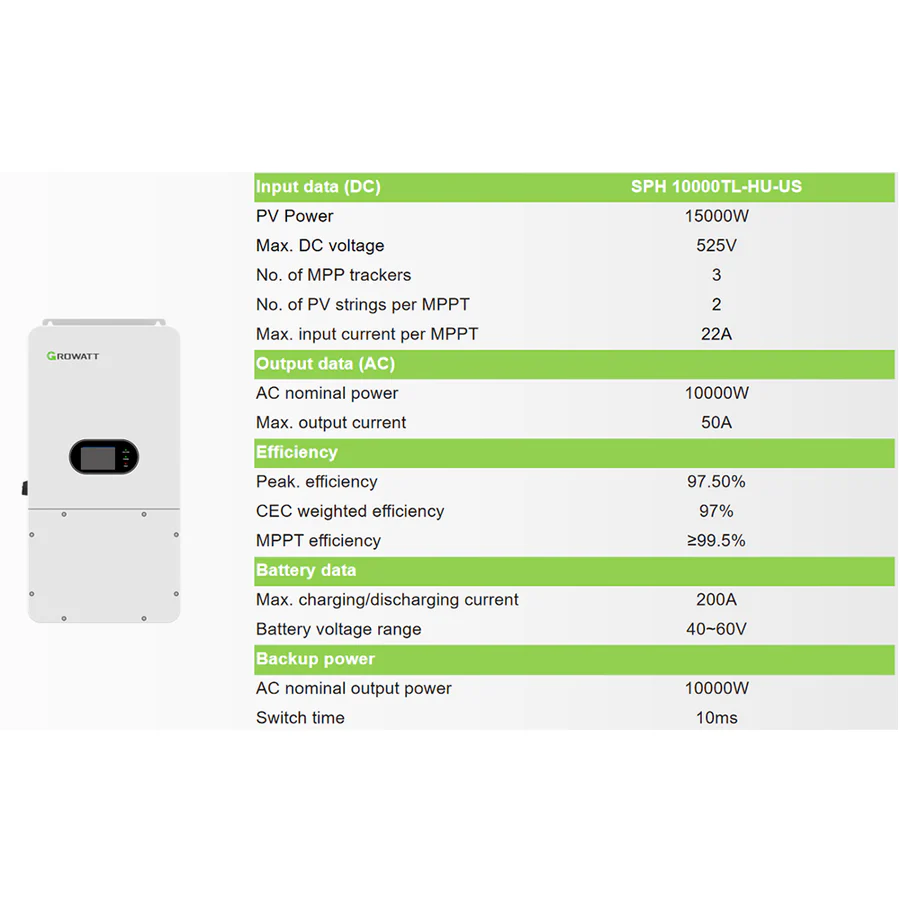

PV Input Data

Max.PV Power Input: 15000W
Max.DC Voltage: 525V
No. of MPPT: 3
No. of PV Strings per MPPT: 2
Max. input current per MPPT: 22A
Max. short-circuit current per MPPT: 27A

Output Data

AC nominal power: 10000W
Nominal AC Voltage output: 120V/240V Split ( 180Vac – 280Vac )
Max. output current: 50A

Battery Data

Battery voltage range: 40~60V
Max charging and discharging current: 200A
Continuous power: 10000W
Type of battery: Lithium / Lead-acid

Advanced Protection & Safety

UL certificated( UL1741 ), CA Rule21
PV switch integrated
AC over current/voltage protection
Ground fault monitoring
Grid monitoring
Anti-islanding protection
Residual-current monitoring unit
Insulation resistance monitoring
AFCI protection
Surge protection

General data

Dimensions( W/H/D ):17.32* 28.34* 9.44 inches ( 440*855*256mm )
Weight: 48.84kg / 107.8lbs
Protection degree: IP65/NEMA 4
Display: LCD
Communication: Wifi / 4G
Warranty: 10 Years
