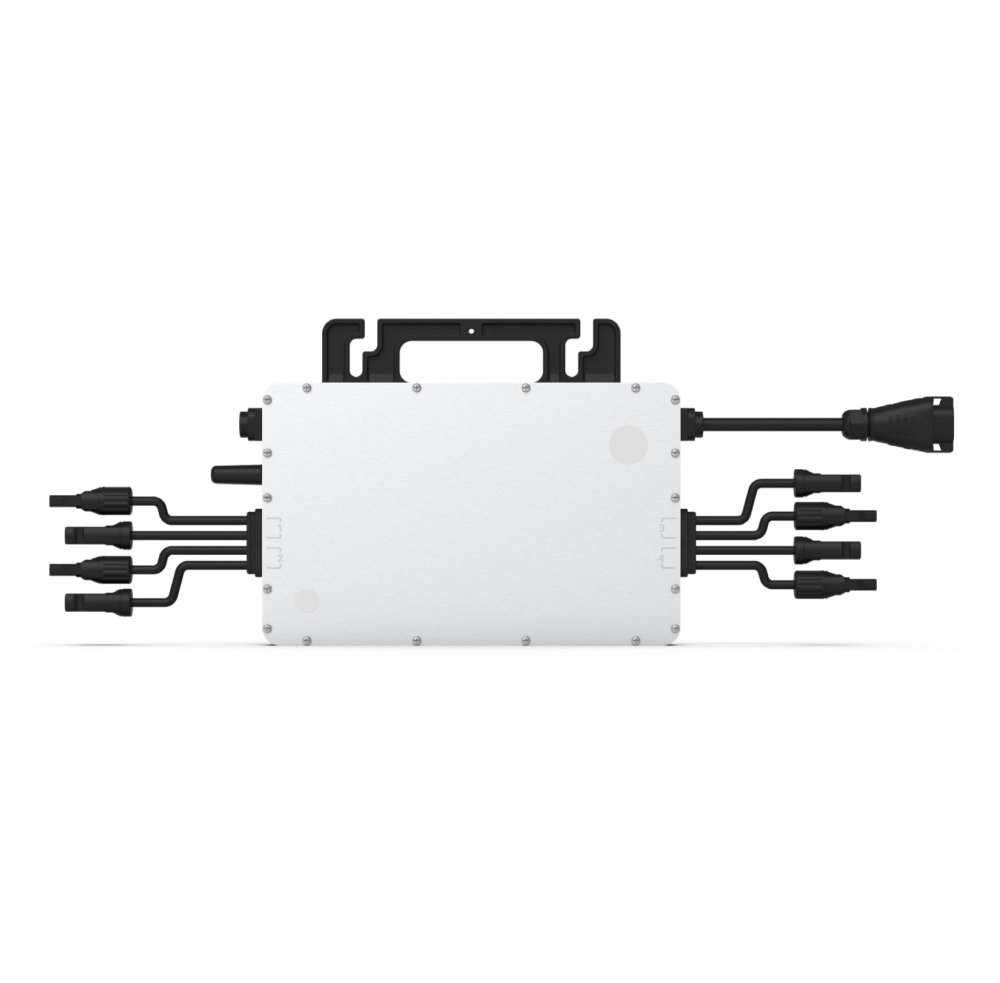

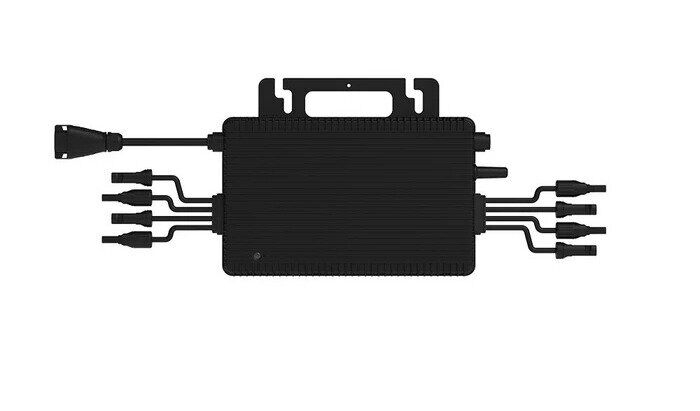

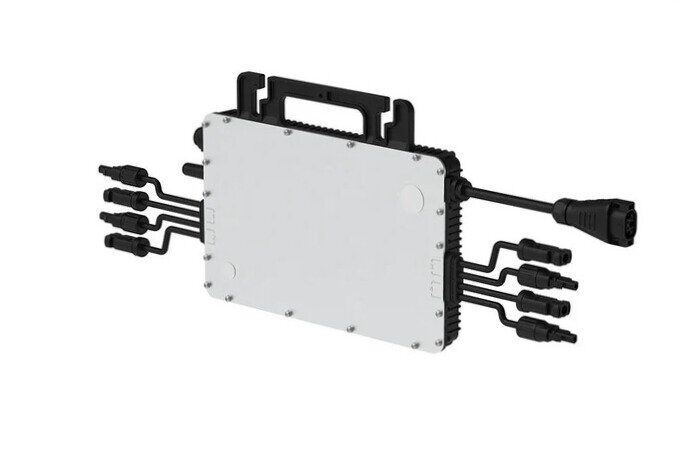

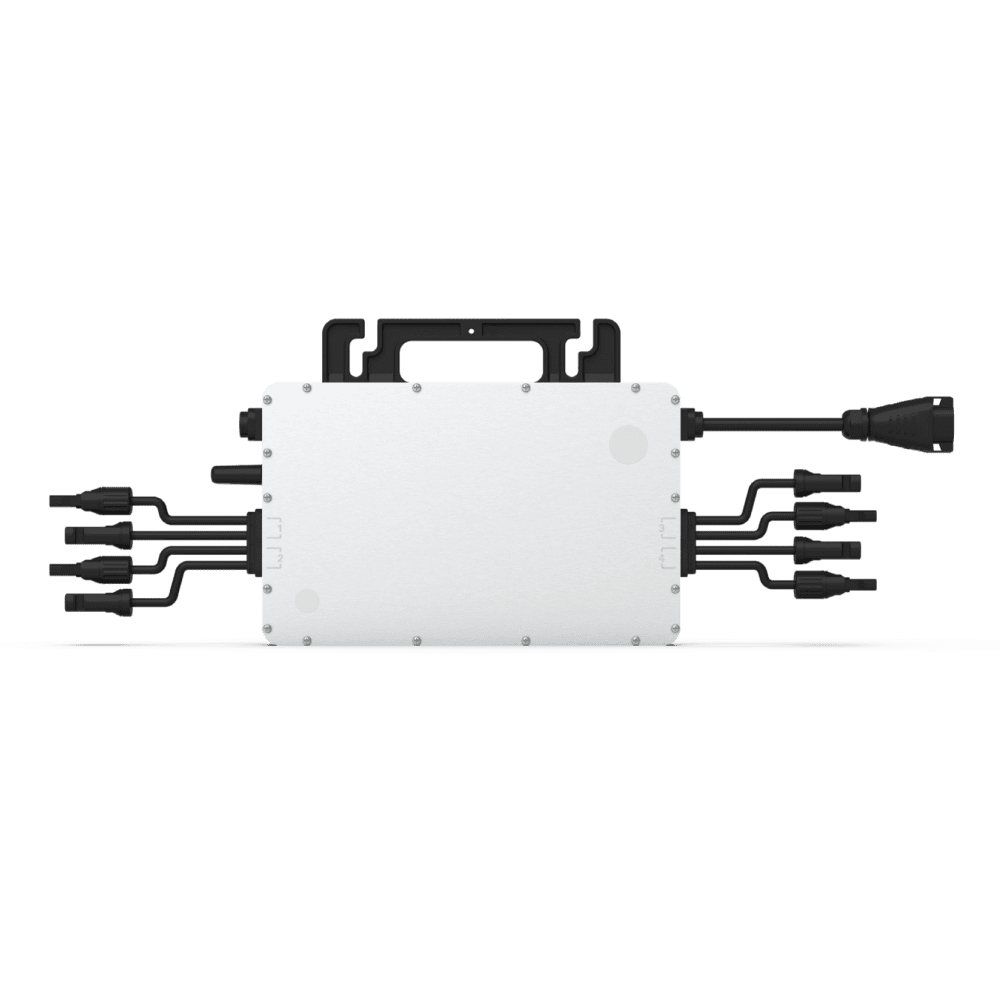

Hoymiles HM-1500NT 4-in-1 Microinverter | Single-Phase Grid-Tie | 1500W Peak Output | 4 Panel Solar
$381.50
23 people are viewing this product right now
Hoymiles HM-1500NT 4-in-1 microinverter | Single-phase grid-tie | 1500W peak output | Supports 4 solar panels | UL 1741 & IEEE 1547 compliant.
6000V Surge Protection, External Communication Antenna, NEC Rapid Shutdown, Reactive Power Control, Plug and Play.
Unlock maximum solar power with the Hoymiles HM-1500NT 4-in-1 Microinverter, a highly efficient single-phase grid-tie solution designed to connect up to four solar panels simultaneously. Each panel operates independently with its own MPPT, ensuring optimal energy harvest even under partial shading or module mismatch.
With a maximum DC voltage of 60V, this solar inverter is certified as PV Rapid Shutdown Equipment, fully compliant with NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218, providing safe and reliable operation for residential and commercial solar installations.
Equipped with reactive power control and meeting IEEE 1547, UL 1741, and CA Rule 21 standards, the HM-1500NT delivers stable, high-quality AC output while maximizing the efficiency and reliability of your solar energy system.
| Manufacturer | Hoymiles |
|---|---|
| Type | Single-Phase Grid-Tie |
| Maximum Input Voltage | 60V |
| MPPT Voltage Range | 16~60V |
| Maximum Input Current | 2 × 11.5A |
| Number of MPPTs | 2 |
| Number of Inputs per MPPT | 2 |
| Peak Output Power (VA) | 1500 |
| Max. Continuous Output Power (VA) | 1438 |
| CEC Peak Efficiency | 96.7% |
| CEC Weighted Efficiency | 96.5% |
| Nominal MPPT Efficiency | 99.8% |
| Dimensions (W × H × D) | 11.02 × 6.93 × 1.30 in (280 × 176 × 33 mm) |
| Weight | 7.39 lbs (3.35 kg) |
| Enclosure Rating | IP67 |
| Warranty | 25 years |
| Compliance | UL 1741, IEEE 1547, UL 1741 SA (240 Vac), CA Rule 21 (240 Vac), CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C |
| Weight | 7.39 lbs |
|---|---|
| Dimensions | 6.93 × 11.2 × 1.30 in |
| MPN | HM-1500NT |
