Hybrid Growatt System Bundle – SPH 10000TL-HU-US Split-Phase Hybrid Inverter | 10kW 120V/240V Output 48VDC | Growatt ALP LV 30kWh Battery
$10,399.00
39 people are viewing this product right now
- UPS function, 10ms transition
- Easy installation, user-friendly
- Scalable system available
- Dual voltage output 120/240V
- DC/AC ratio up to 1.5
- MPP trackers up to 3
- Max. efficiency 97.5%
- Support DC-Coupled AC-Coupled System
- Support diesel and gas generator
- High cycle stability and long lifespan
- DOD: 92%
- Cycle Life: >6000 cycles
- Soft start to defend the system from surges

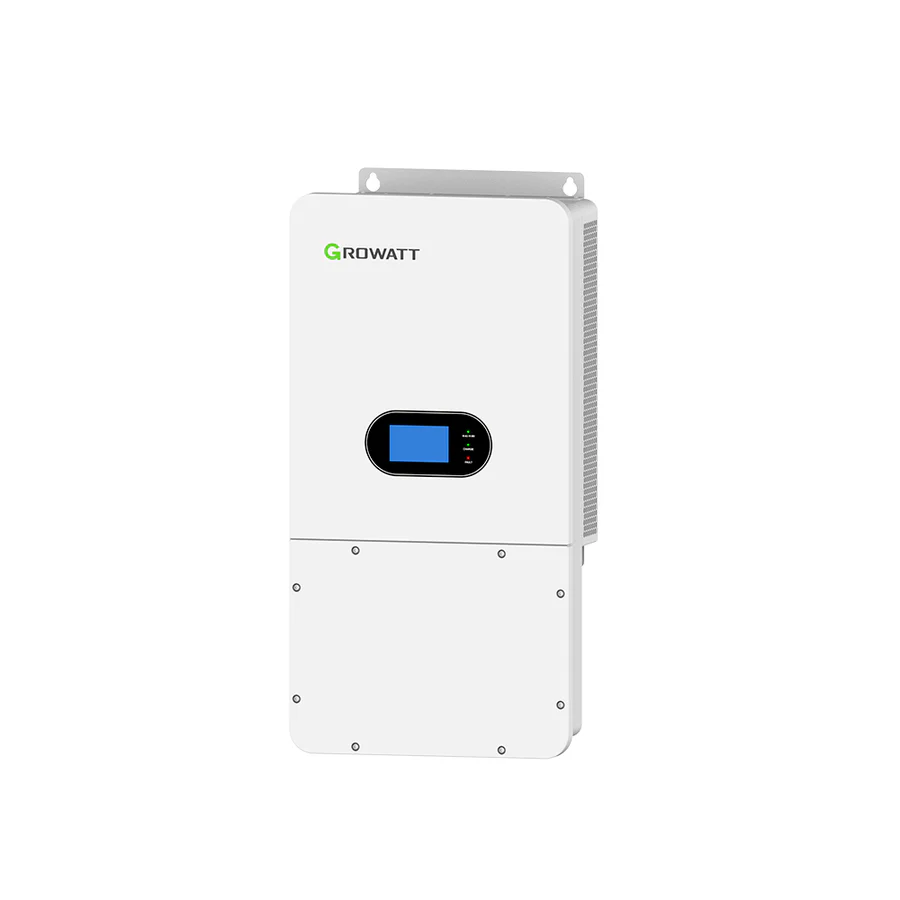

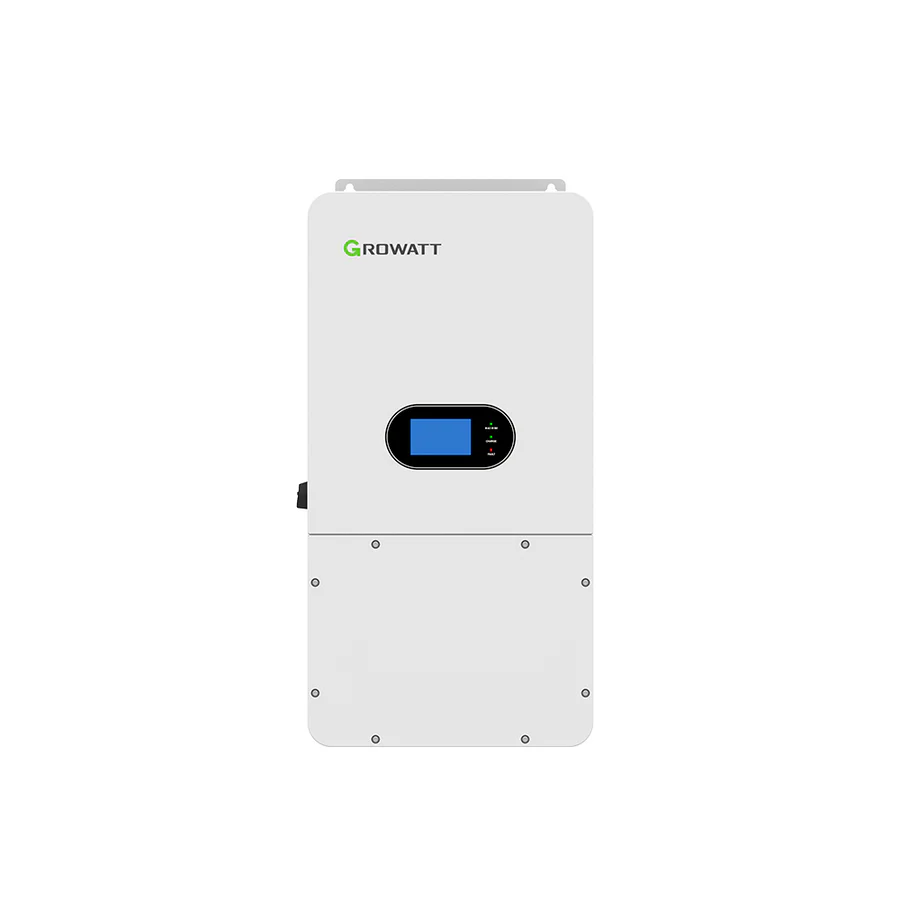

This Hybrid Growatt System Bundle features Growatt SPH 10000TL-HU-US 48V 10kW hybrid inverter and Growatt ALP LV Battery, which offers split phase output at 120/240Vac, allow maxmium 15000W PV input and It includes 3 built-in MPPTs and protection against overload, over temperature, and short circuits. Additionally, It features configurable battery charging current and voltage, as well as AC/Solar/Generator charger priority settings via its touch screen. The SPH 10000TL-HU-US 10kW hybrid inverter can compatible with both grid voltage and generator power, it automatically restarts when AC power is lost. The inverter’s smart battery charger is designed for optimal battery performance and supports WIFI/4G/Bluetooth monitoring. Additionally, it allows for programmable supply priority between battery and grid, and supports multiple operation modes: On Grid Mode, Self-consumption Mode, and Zero Export Limit.

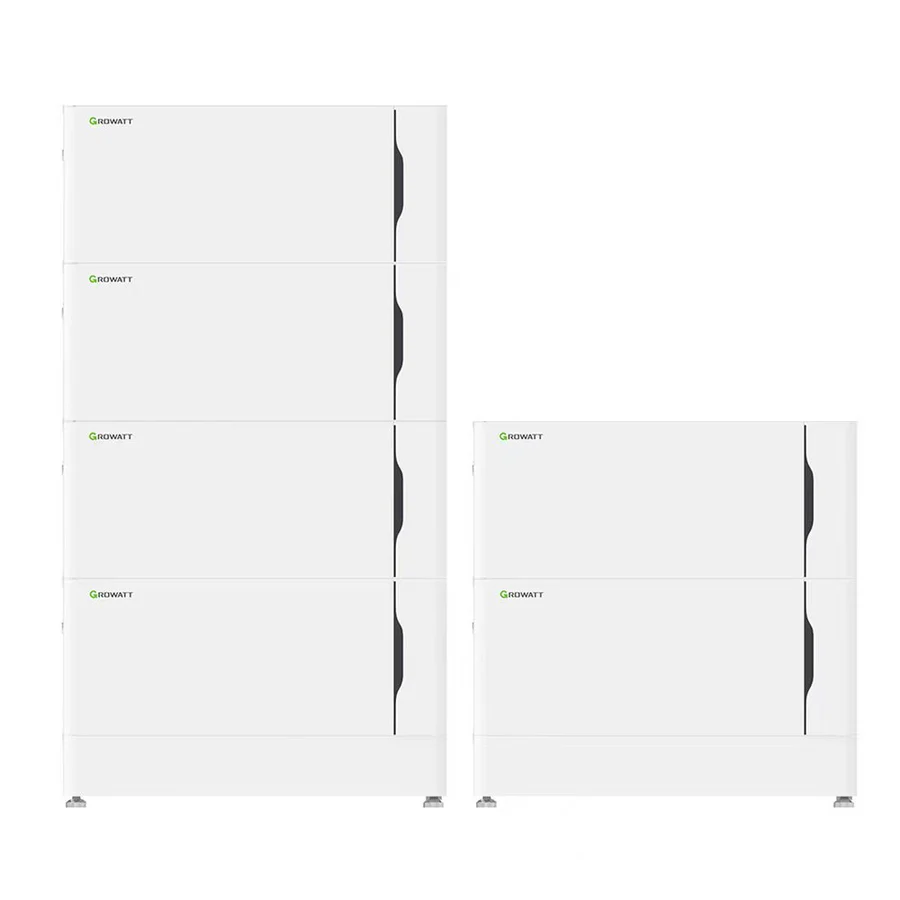

The stackable design of the ALP LV battery system makes it easier to install with internal plugs, requiring no extra cable connections, while with all the external cables integrated into one plug, its connection to the inverter is much more simplified.
Key Features
- UPS function, 10ms transition
- Easy installation, user-friendly
- Scalable system available
- Dual voltage output 120/240V
- DC/AC ratio up to 1.5
- MPP trackers up to 3
- Max. efficiency 97.5%
- Support DC-Coupled AC-Coupled System
- Support diesel and gas generator
- High cycle stability and long lifespan
- DOD: 92%
- Cycle Life: >6000 cycles
- Soft start to defend the system from surges
GROWATT ALP LV FEATURES
|  |
SPH 10000TL-HU-US FEATURES
|  |

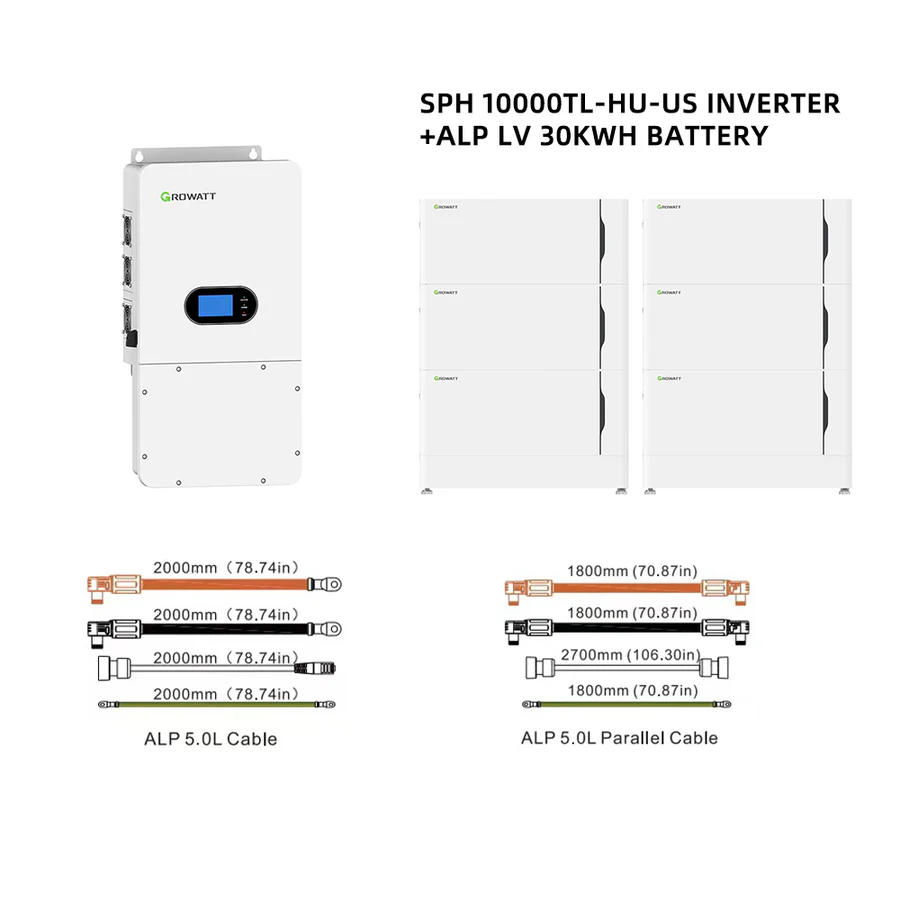

Included Components：
B-SPh10ALP30-US (30kWh)
1 × SPH 12000T Split-Phase Hybrid Storage Inverter
6 × Growatt ALP LV-US 5kWh Stackable Battery Module
1 × Growatt ALP-US Base
1 × Growatt ALP-US Cable
1 × Growatt ALP-US paraller Cable
6 × Growatt ALP LV-US 5kWh Stackable Battery Module
1 × Growatt ALP-US Base
1 × Growatt ALP-US Cable
1 × Growatt ALP-US paraller Cable

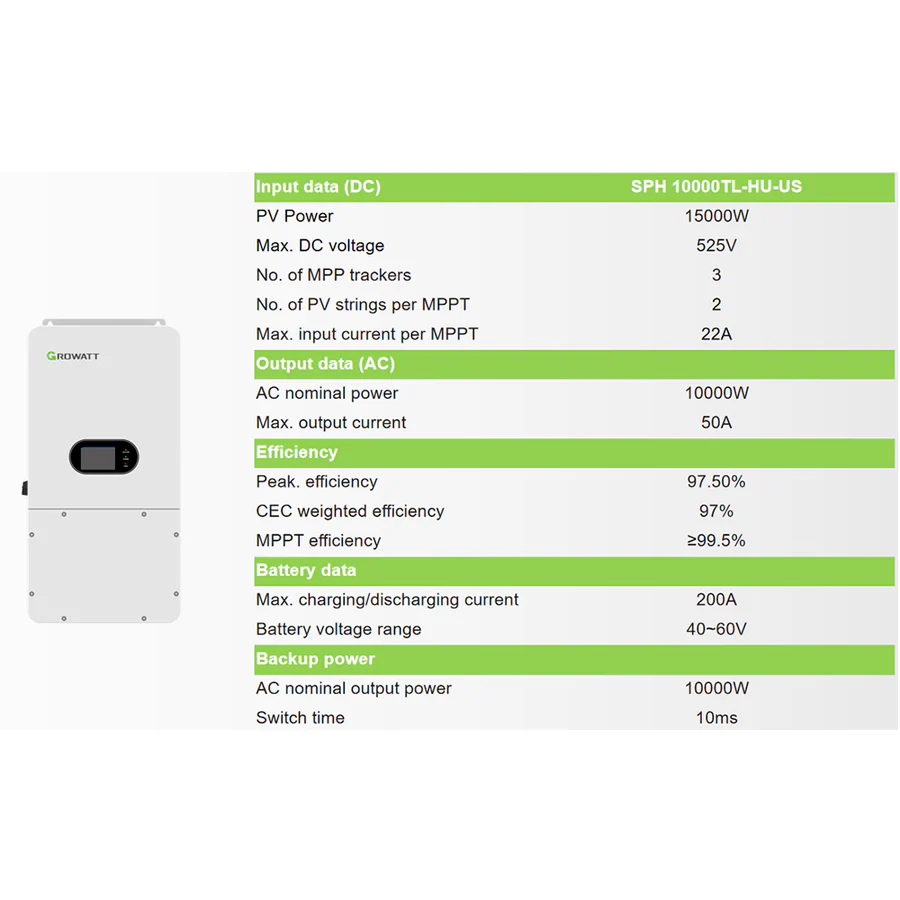

Product Specifications:
PV Input Data
Max.PV Power Input: 15000W
Max.DC Voltage: 525V
No. of MPPT: 3
No. of PV Strings per MPPT: 2
Max. input current per MPPT: 22A
Max. short-circuit current per MPPT: 27A
Output Data
AC nominal power: 10000W
Nominal AC Voltage output: 120V/240V Split ( 180Vac – 280Vac )
Max. output current: 50A
Battery Product Specifications
- Nominal Voltage: 51.2V
- Operating Voltage: 46.4~57.6V
- Nominal Charge/Discharge Current: 220A
- DOD: 92%
- Cycle Life: >6000 cycles
- IP Protection IP66/NEMA Type 4X ( Wall-mounted or Floor installation )
- Communication Protocol: CAN
- Connect style: Parallel
- Mult-cluster ALP battery system in parallel: Max. 4 clusters( Max. 160kWh )
General data
Dimensions( W/H/D ):
SPH: 17.32* 28.34* 9.44 inches ( 440*855*256mm )
ALP: 28.0*7.3*30.3 inches x2 ( 710*185*1770mm x2 ）
Weight:
SPH: 107.8lbs ( 48.84kg )
ALP: 608.5 lbs ( 276 kg )
Protection degree:
SPH: IP65/NEMA 4
ALP: IP66/NEMA Type 4X
Warranty: 10 Years
| MPN | S-SPH10ALP30-US |
|---|
