Peimar DR10H450M 450W Black on Black 120 Half-Cell Mono Solar Panel
Original price was: $186.56.$159.99Current price is: $159.99.
21 people are viewing this product right now
Key Features & Benefits
-
450W High Output – Ideal for space-constrained rooftops and large commercial arrays
-
120 Half-Cell Mono PERC (9BB) – Improved performance, reduced resistive losses
-
Black on Black (BoB) Design – Premium aesthetics for residential and commercial installs
-
1500VDC System Voltage – Suitable for modern commercial and utility systems
-
MC4 or MC4-Compatible Connectors – Fast, secure BOS integration
-
No PTC Rating – Optimized performance in high-temperature environments
-
Tier-1 Manufacturer – Trusted global quality and bankability

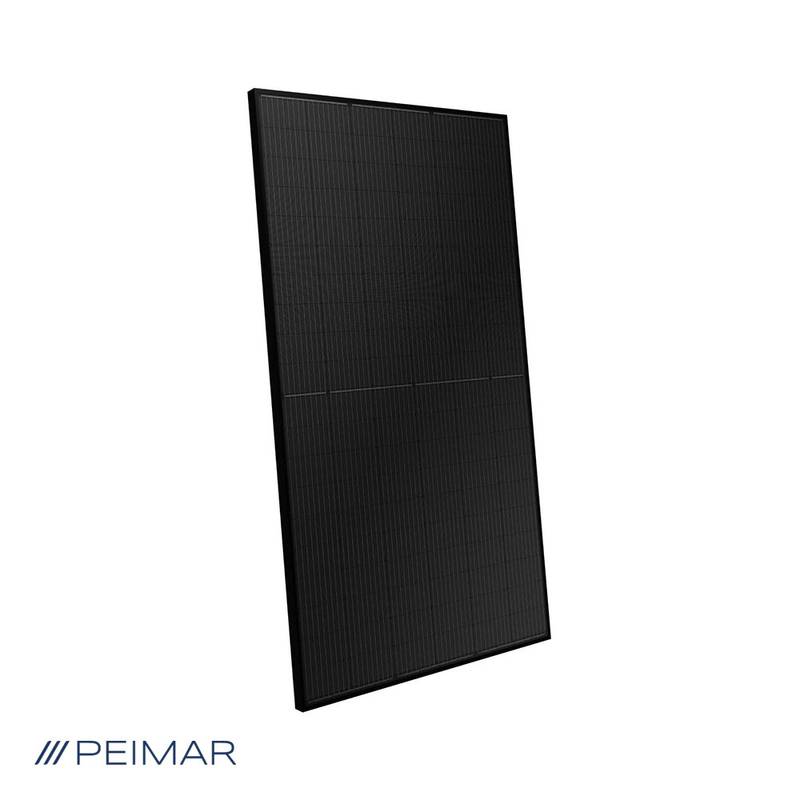

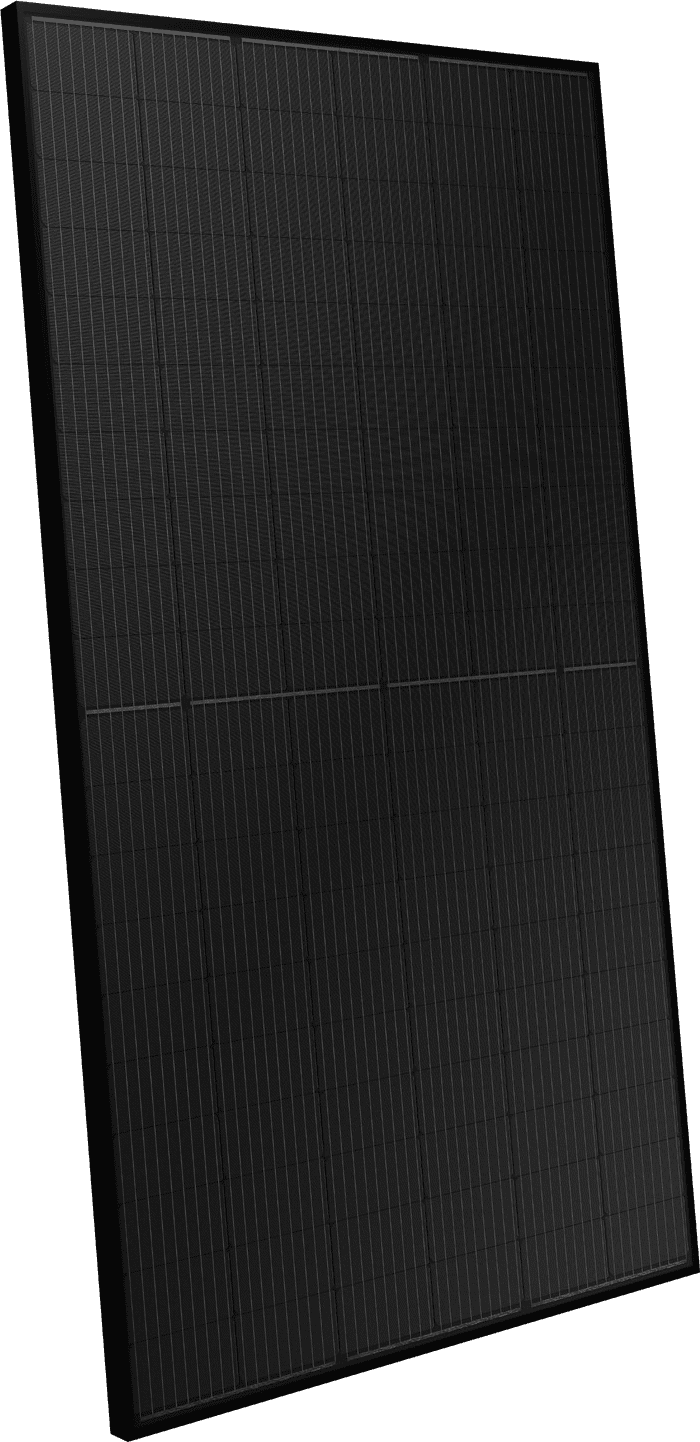

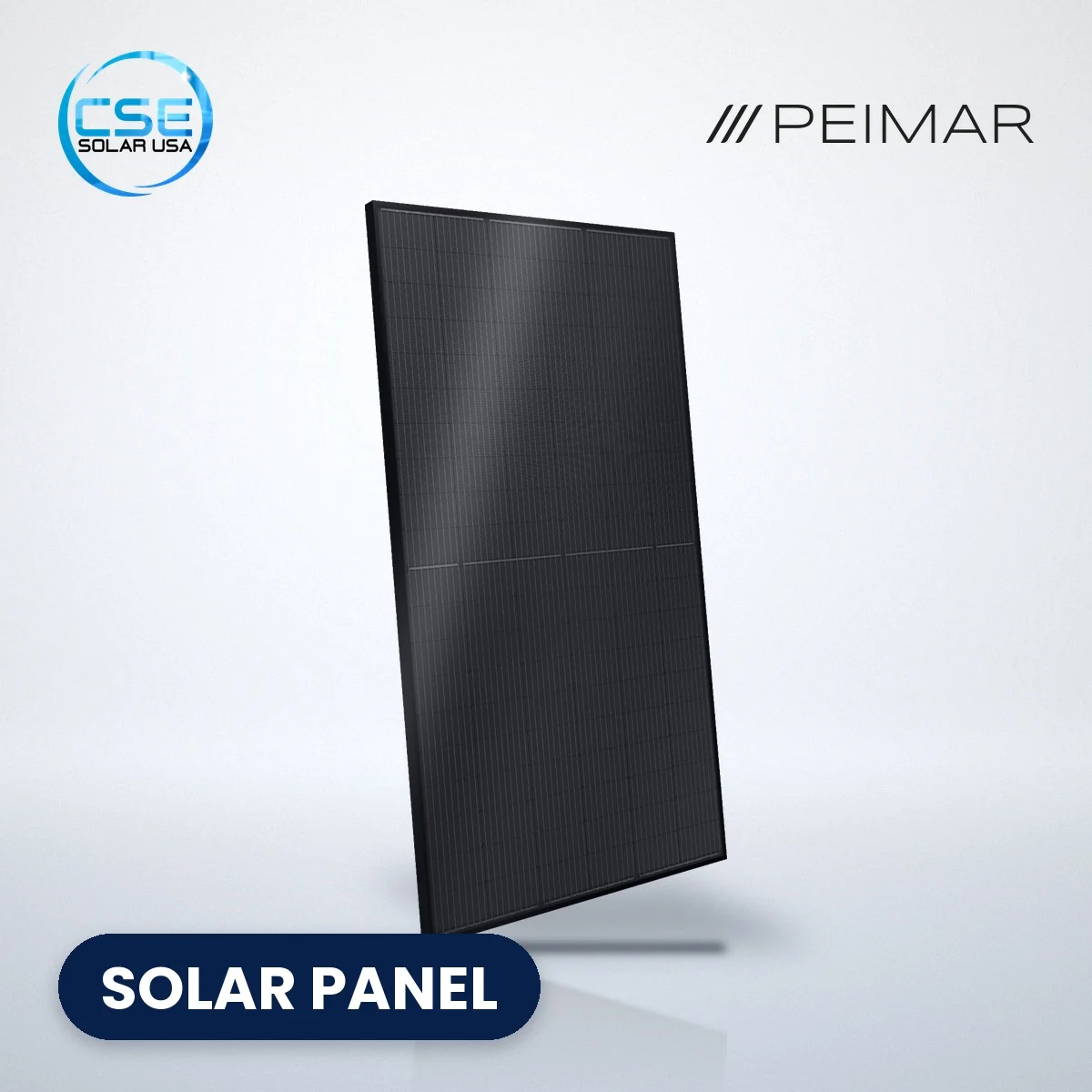

The Peimar DR10H450M is a high-performance 450W monocrystalline solar panel engineered for residential, commercial, and utility-scale applications. Featuring 120 half-cell mono PERC cells, a black anodized aluminum frame, and a black backsheet (BoB) design, this module delivers excellent efficiency, reliability, and a clean all-black aesthetic.
Built to withstand demanding environmental conditions, the DR10H450M supports 1500VDC systems, includes MC4-compatible connectors, and is backed by Peimar’s 30-year performance warranty and 25-year product warranty.
Key Features & Benefits
-
450W High Output – Ideal for space-constrained rooftops and large commercial arrays
-
120 Half-Cell Mono PERC (9BB) – Improved performance, reduced resistive losses
-
Black on Black (BoB) Design – Premium aesthetics for residential and commercial installs
-
1500VDC System Voltage – Suitable for modern commercial and utility systems
-
MC4 or MC4-Compatible Connectors – Fast, secure BOS integration
-
No PTC Rating – Optimized performance in high-temperature environments
-
Tier-1 Manufacturer – Trusted global quality and bankability
Technical Specifications
Electrical
-
Model: DR10H450M
-
Rated Power (Pmax): 450W
-
Cell Type: Monocrystalline PERC
-
Cell Configuration: 120 half-cells (9 Busbar)
-
Maximum System Voltage: 1500 VDC
-
Maximum Series Fuse Rating: 25A
-
PTC Rating: No
Mechanical
-
Frame: 35mm Black Anodized Aluminum
-
Backsheet: Black
-
Glass: 3.2mm Tempered Glass
-
Connector: MC4 or MC4-Compatible
-
Cable Length: 1200mm (~47.2 inches) PV Wire
Certifications & Warranty
-
Product Warranty: 25 Years
-
Performance Warranty: 30 Years
-
Quality Standard: Tier-1 Manufacturer
Applications
-
Residential Rooftop Solar
-
Commercial & Industrial (C&I) Systems
-
Ground-Mount & Carport Installations
-
Utility-Scale Solar Projects
Why Buy from CSE Solar USA
-
Authorized distributor
-
Competitive bulk pricing
-
Nationwide shipping
-
Trusted support for installers & EPCs
| Weight | 52.9 lbs |
|---|---|
| Dimensions | 75.03 × 44.64 × 1.37 in |
| MPN | DR10H450M |
