RUiXU Bracket-Rack Battery Kits 10–40 kWh (RX-LFP48100)
Price range: $2,588.00 through $9,932.00 Call for AvailabilityCheck Availability
15 people are viewing this product right now
RUiXU RX-LFP48100 batteries stacked on RUiXU bracket racks, from 10 to 40 kWh. RUiXU offers 10, 15 and 20 kWh daisy-chain bracket kits; larger sizes are CSE configurations of official RUiXU parts, confirmed per order.
A flexible, open alternative to a cabinet: RUiXU RX-LFP48100 rack batteries stacked on RX-BRACKET bracket racks.

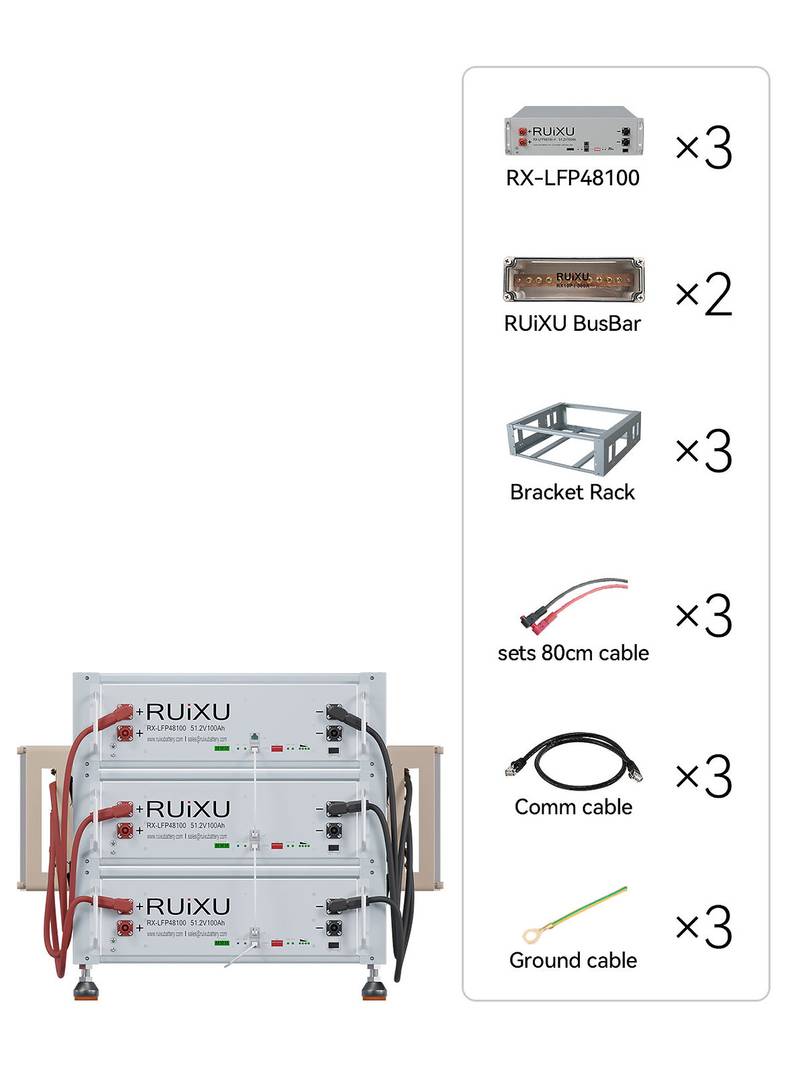

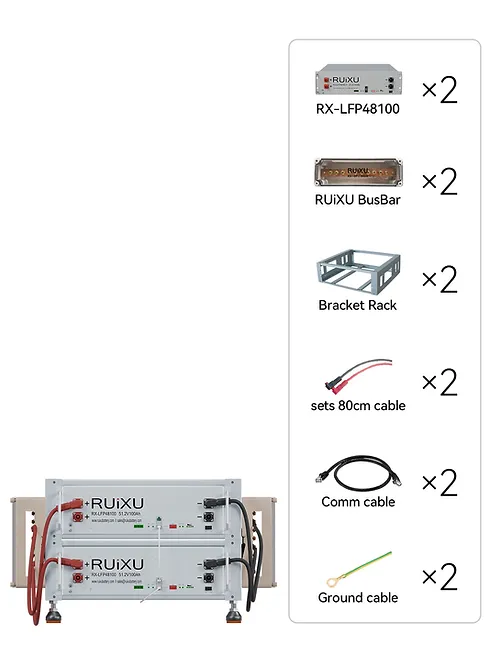

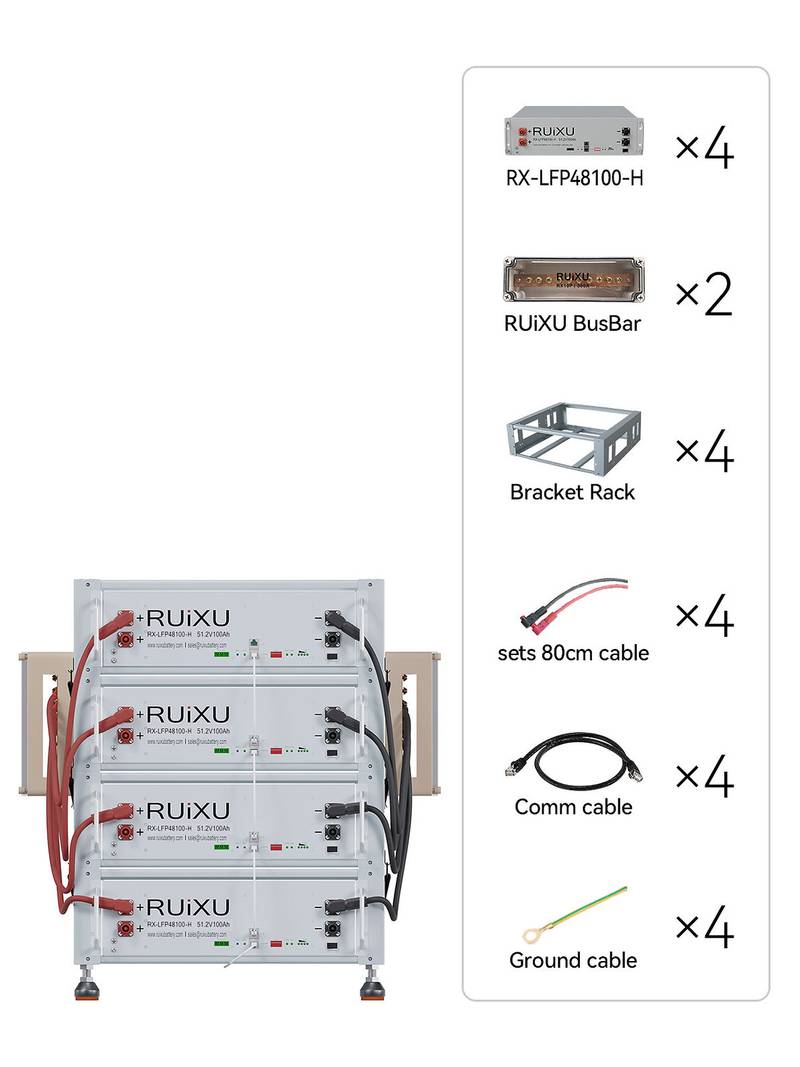

- 10, 15 and 20 kWh: RUiXU daisy-chain bracket-rack kits (RUiXU: “10–20 kWh, max 4 stacks”).

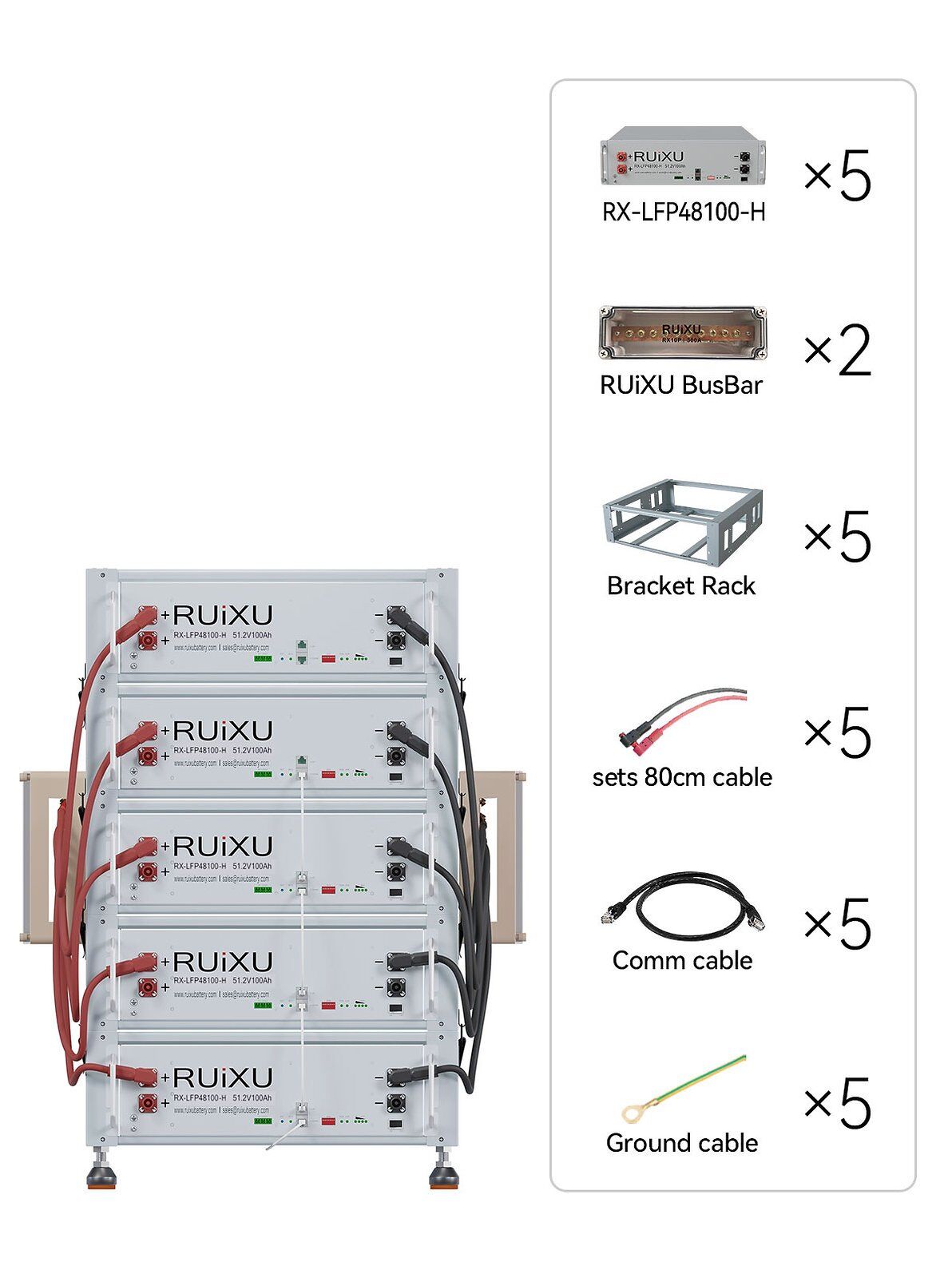

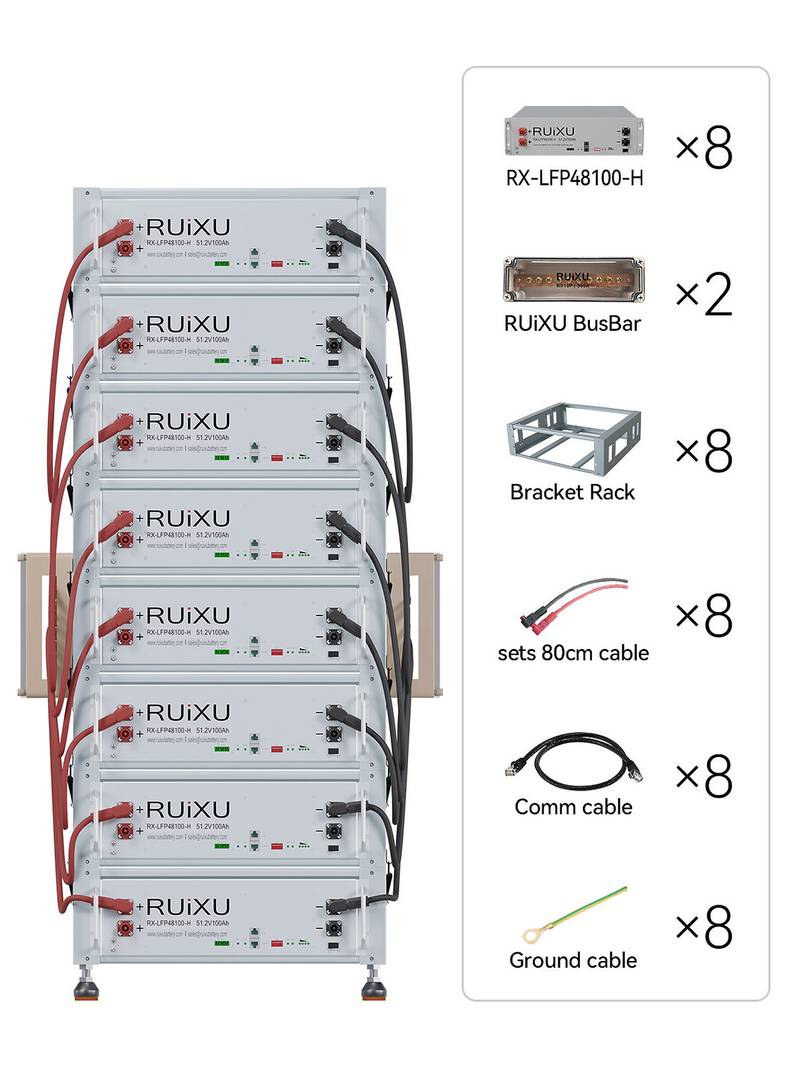

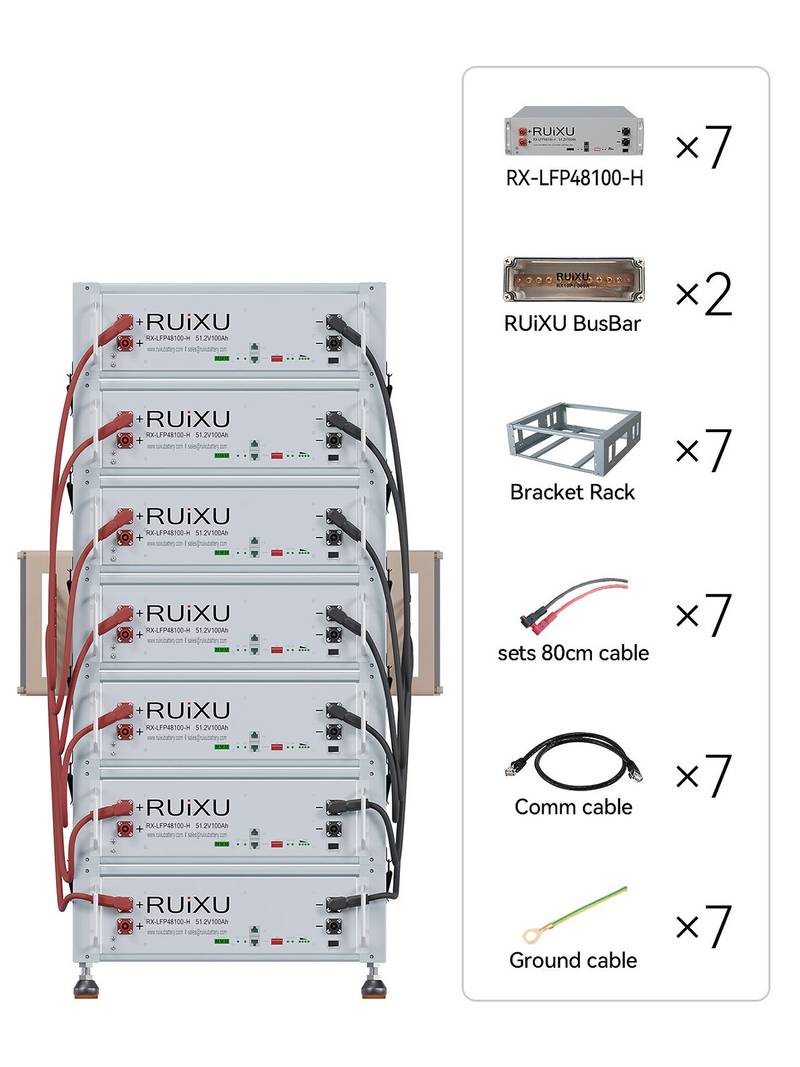

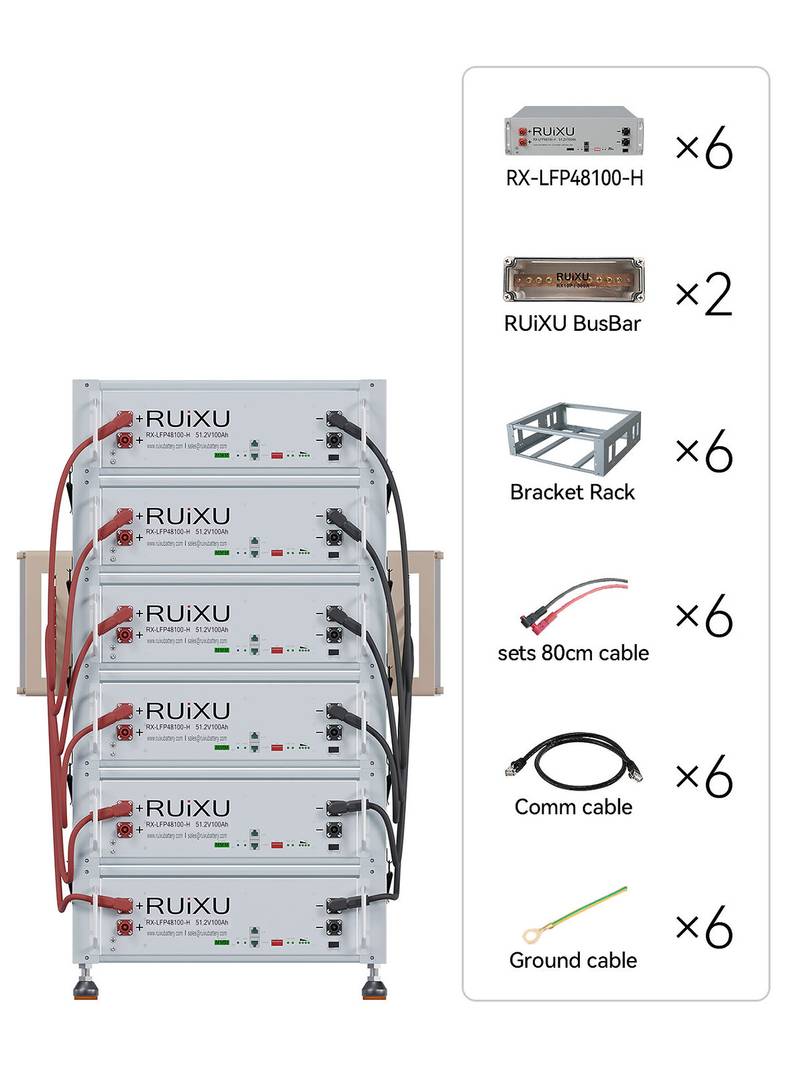

- 25 to 40 kWh: CSE configurations built from official RUiXU parts (RX-LFP48100 batteries, RX-BRACKET racks and, where the design needs it, the RX10P 300 A busbar). CSE confirms the exact bill of materials and layout for these sizes before ordering.
| Battery | RX-LFP48100, 51.2 V 100 Ah, 5.12 kWh nominal each |
|---|---|
| Charge / discharge current | 50 A recommended · 70 A max charge · 100 A max discharge |
| Cycle life | ≥6,000 cycles at 90% DoD |
| Format | 19-inch rack, 3U · 18.9 × 18.1 × 5.2 in (482 × 460 × 133.5 mm) |
| Bracket | RX-BRACKET bracket rack for RX-LFP48100 (supplied unassembled) |
Per battery, included
- RJ45/CAT5e patch cable
- Ground cable
- Set of parallel 4AWG cables
Inverter communication
CAN: Victron, SMA, Studer, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider. RS485: MPP Solar, Voltronic, RCT, Alpha Outback.
RUiXU documentation
- RX-LFP48100 / RX-LFP48100-H datasheet (RUiXU)
- RX-LFP48100 operation manual V1.2 (RUiXU)

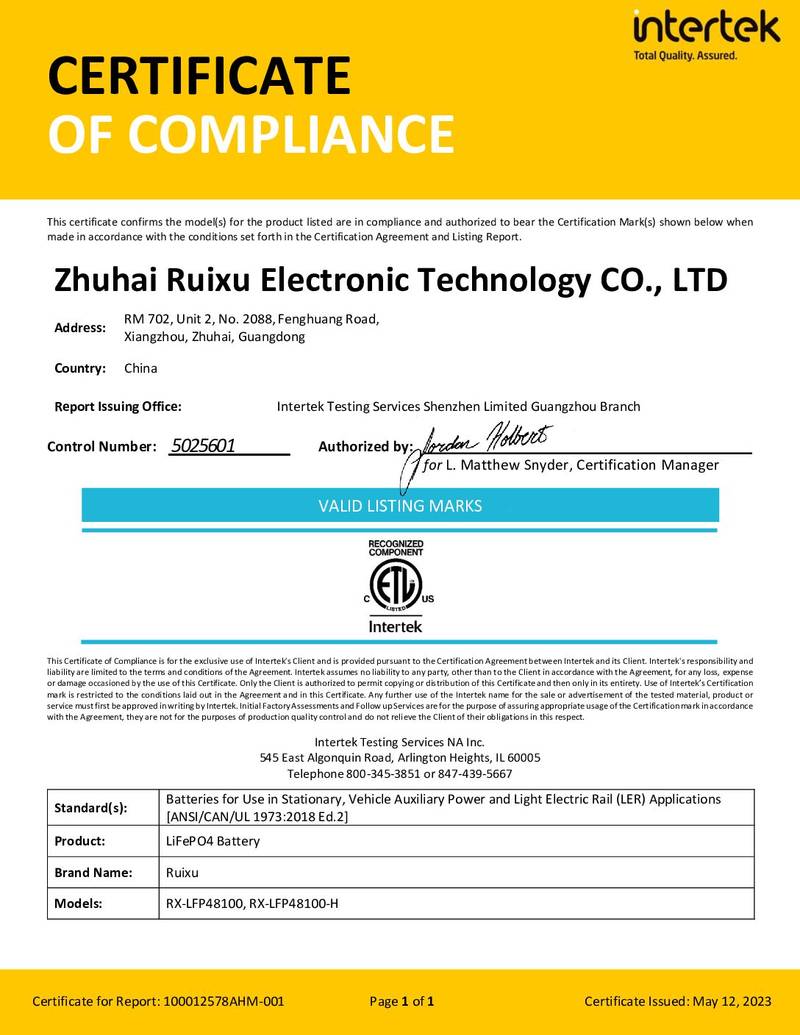

- RX-LFP48100 / RX-LFP48100-H Intertek UL 1973 certificate (control no. 5025601)
Availability: CSE confirms current availability, lead time and freight for every RUiXU order. Contact CSE Solar USA to check availability or request a quote.
| RUiXU Lithium Batteries Kits | 10kWH, 15kWH, 20kWH, 25kWH, 30kWH, 35kWH, 40kWH |
|---|
