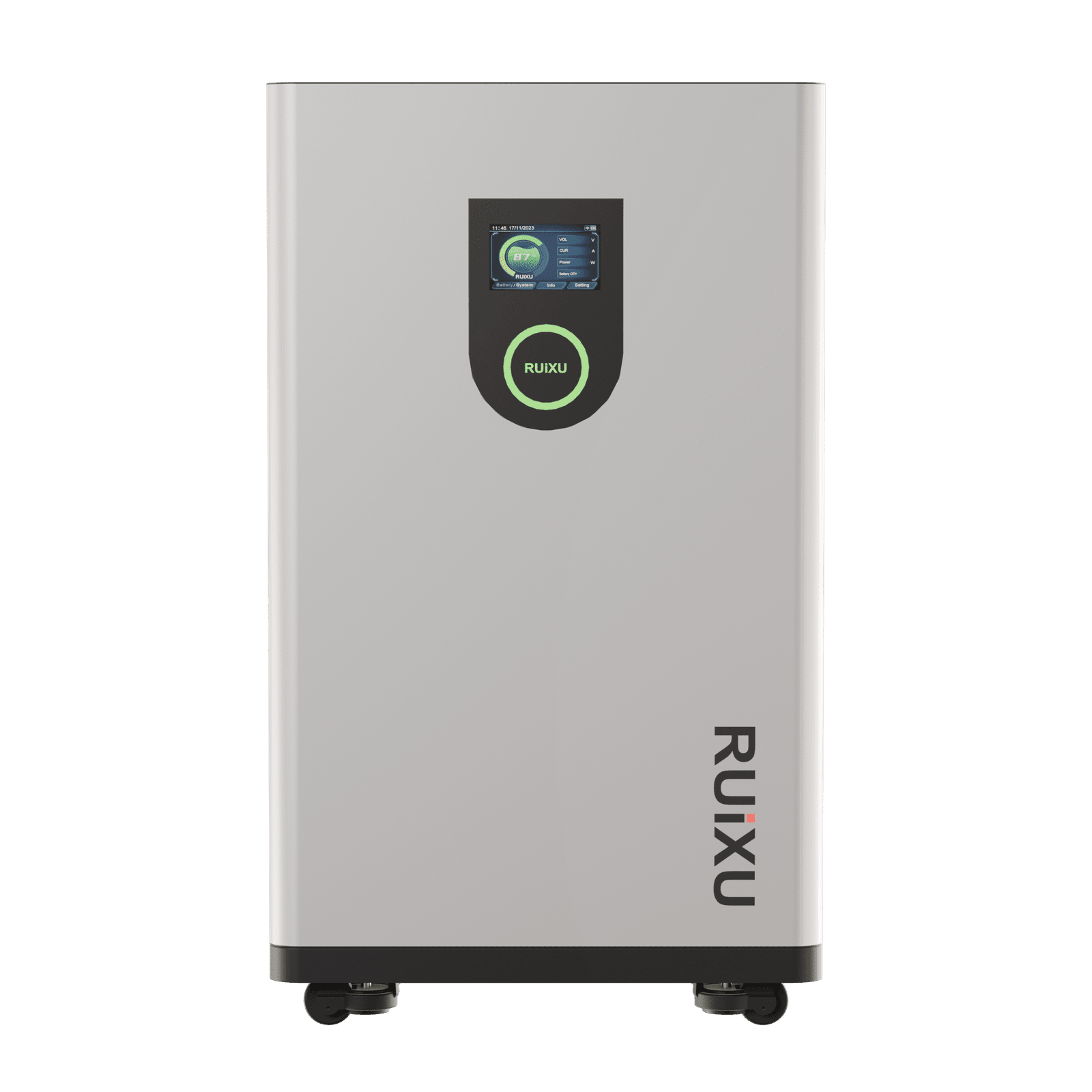

RUiXU , Lithi2-16 51.2V314Ah 16kWh LiFePO4 Battery Energy Storage
Original price was: $3,658.25.$3,399.00Current price is: $3,399.00.
14 people are viewing this product right now
RUiXU , Lithi2-16 51.2V314Ah 16kWh LiFePO4 Battery Energy Storage, 10-year warranty
Lithi2-16
Nominal voltage ：51.2V
Nominal capacity@0.2C ：314 Ah
Min. capacity@0.2C：314 Ah
Dimesion(W*D*H):924(with wheels) *543*250mm | 36.3(with wheels) *21.3*10inch
Weight: ~145kg （320lb)
Cycle life@80% DOD: ≥9500 cycles
Standard Included
(1) RUiXU Lithi2-16

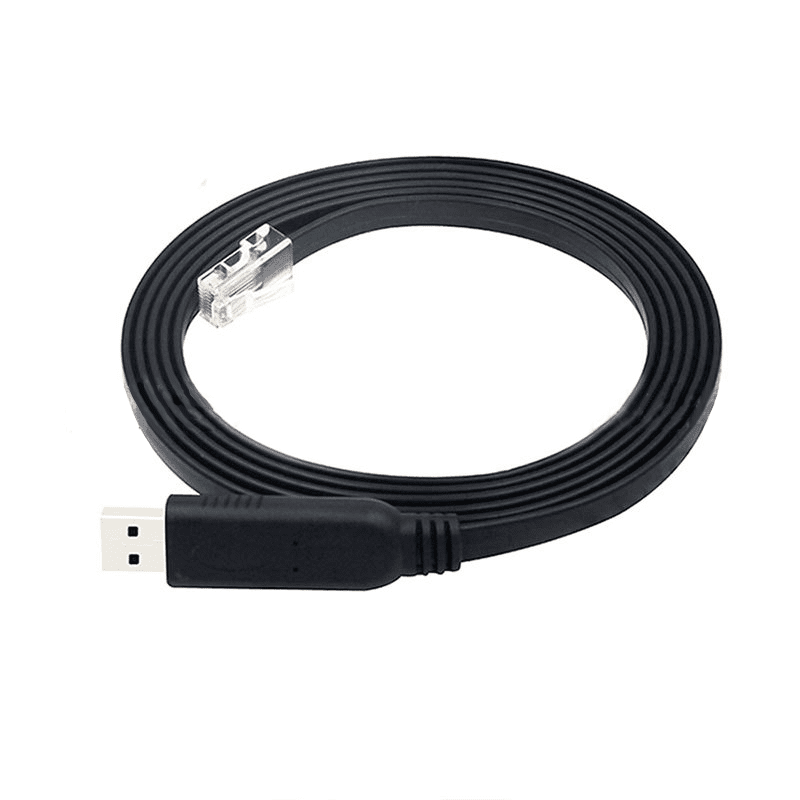

(1) RJ45/CAT5e Patch Cable
(1) Ground Cable

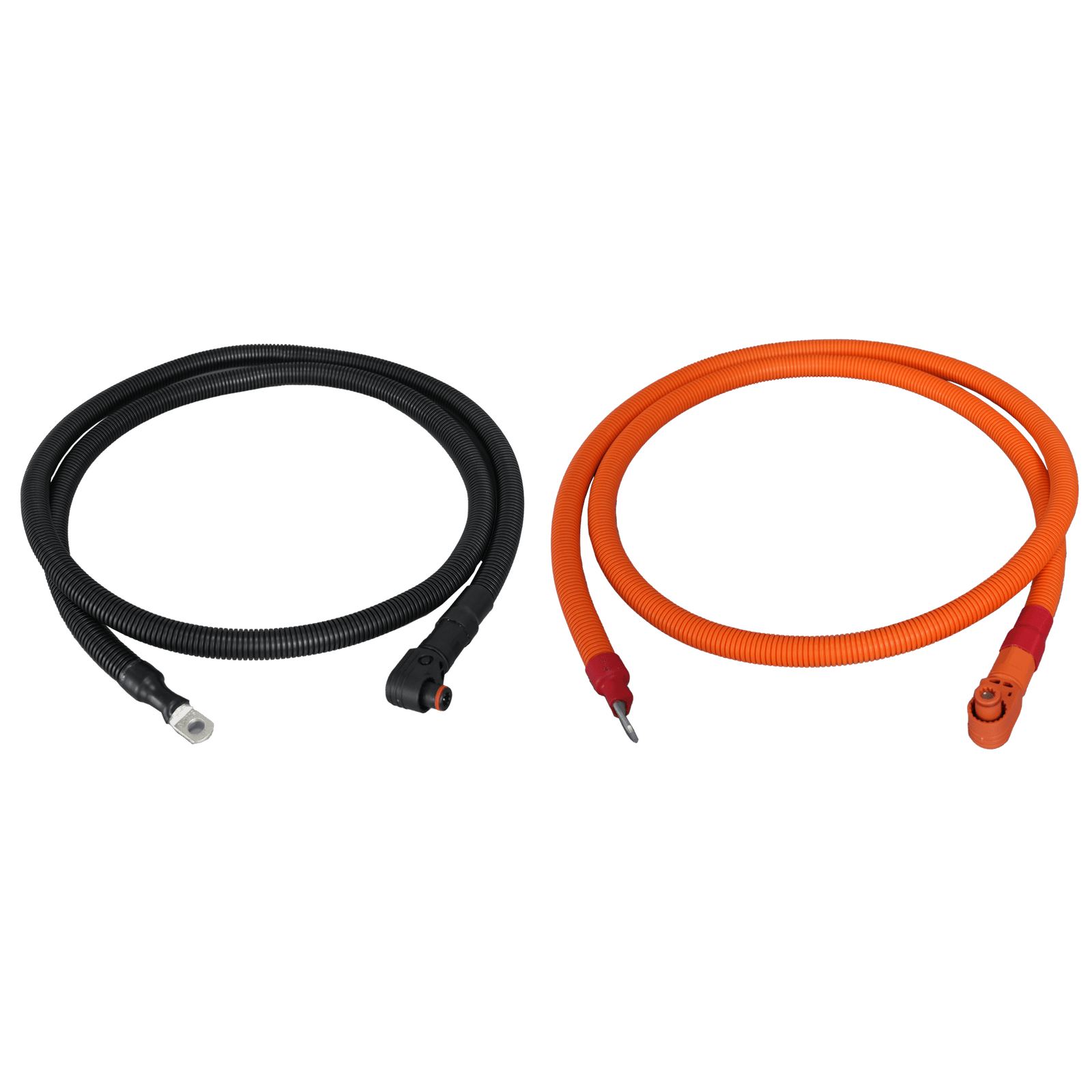

(1) Set of parallel 1/0 AWG OP140 Cable
COMMUNICATIONS:
Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback
ON-BOARD LCD TOUCH SCREEN
5-inch capacitive touch screen provides battery information and allows easy and intuitive adjustment of battery settings.
PERFLUOROHEXANE MODULE
A perfluorohexane module improves fire protection inside the battery pack to both electrical lines and cells.
QUICK PLUGS
Quick plugs provide 250A (continuous) overcurrent capacity, easy tool-less connection, long-term anti-loosening and heating protection.
FUMA WHEELS AND WALL MOUNTED FIXATION

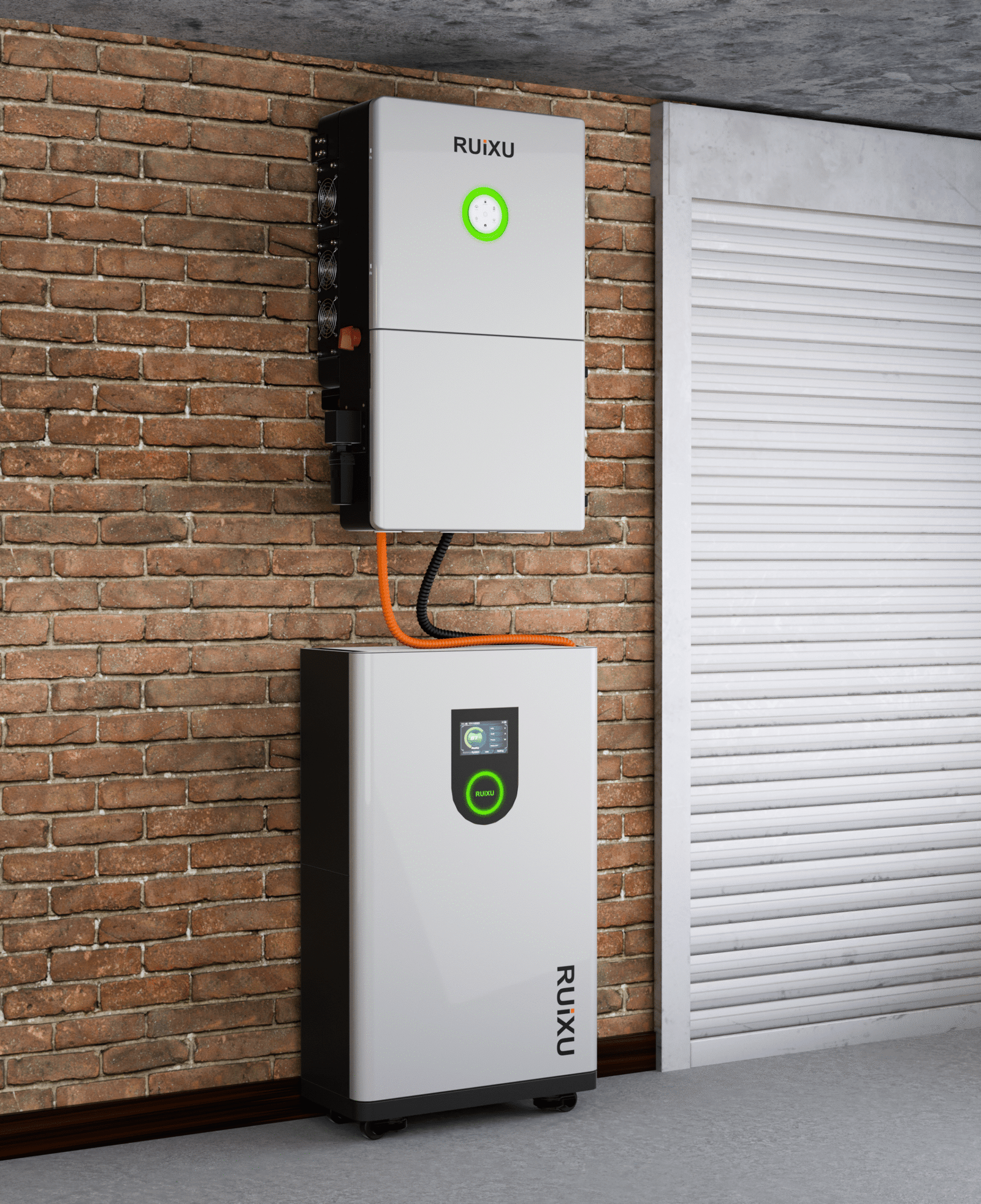

Four concealed heavy-duty Fuma wheels facilitate movement of the battery without detracting from the elegant design. An anti-tipping mount on the back anchors the battery to the wall.
BATTERY MAINTENACE AND INSPECTION PORT

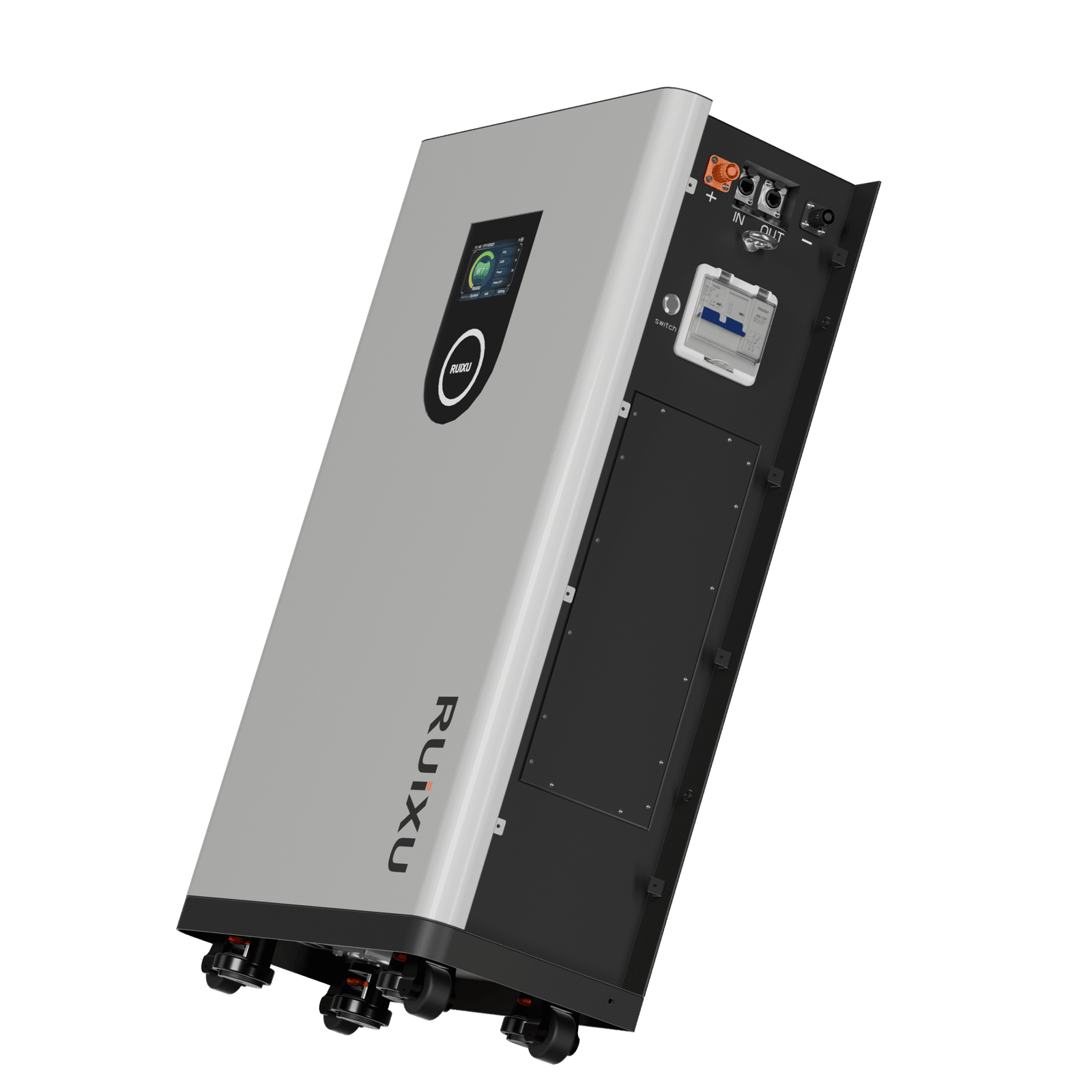

An inspection port on the side of the battery provides access to the BMS and fuse for ease of maintenance.
ALL POLE PROTECTION
All-pole, dual protection through fuse (negative terminal) and micro circuit breaker (positive terminal).
INTELLIGENT BALANCING
A double equilibrium approach achieves efficient cell balancing by calculating capacity differences between battery cells from charging-process data and by extending the balancing time, improving the efficiency and reliability compared to general passive and active balancing modes.
SELF-HEATING FEATURE
Keeping your battery charged in cold temperatures.
ELECTRO-COATING BATTERY CASE FOR OUTDOOR USE
Electro-coating (electrophoresis) of the battery enclosure provides excellent rust prevention for outdoor use. The electrophoretic coating process is widely used in the production of automotive body shells
An additional $130 will be charged for delivery to a residential address and for liftgate service.
| Weight | 145 lbs |
|---|---|
| Dimensions | 36.3 × 21 × 10 in |
| MPN | Lithi2-16 |
