Seraphim SRP-595-BTA-BG Sable 595W N-Type TOPCon Bifacial Solar Panel – Pallet Pricing (36 Panels | 21.42kW)

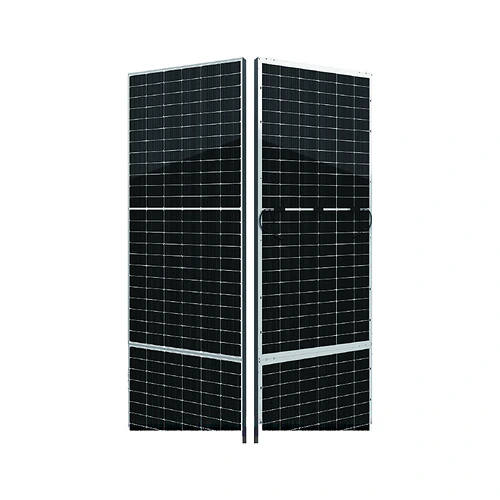

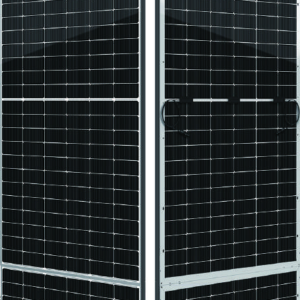

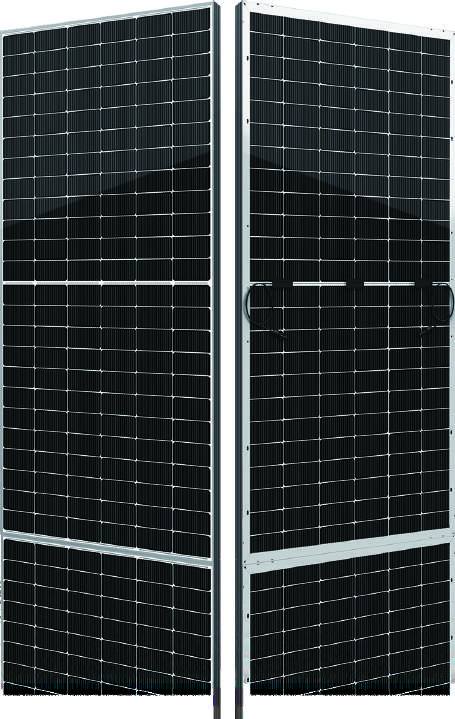

The Seraphim SRP-595-BTA-BG 595W solar panel pallet is the highest-power bin of the Sable Series that CSE Solar USA stocks by the pallet. Each module pairs 144 half-cut N-type 182 mm TOPCon cells with a 2.0 mm + 2.0 mm dual-glass bifacial package, rated 595 W at STC with 23.03% module efficiency and a positive-only power tolerance of 0 / +4.99 W. The datasheet lists 652 W under bifacial nameplate conditions (BNPI, 135 W/m² rear irradiance), so on reflective ground, carports and white-membrane commercial roofs the rear side can add yield above the 595 W rating.

Who this pallet suits. Commercial rooftop, ground-mount and carport projects that want the fewest modules per kW: 36 panels deliver 21.42 kW DC. Datasheet electrical values at STC are 52.70 V open-circuit, 14.25 A short-circuit and 44.00 V / 13.54 A at maximum power, with a 1500 V DC maximum system voltage and a −0.29 %/°C power temperature coefficient. String sizing and system design should be completed by the installer from these values.

This is the standard cable lot (4.0 mm² leads, 250 mm positive / 350 mm negative, or custom). If you install in the Northeast, the Seraphim SRP-595-BTA-BG New Jersey lot with 1000 mm cables ships from our New Jersey pickup location. The SRP-590-BTA-BG 590W pallet is the same module at a lower price point, and the SRP-580-BTA-BG 580W New Jersey lot is a limited closeout. See all Seraphim modules on the CSE Seraphim brand page.

How ordering works. Sold by the full pallet only. The pallet price shown is EXW a CSE-controlled pickup location confirmed at quote; submit an order request and our team confirms stock, pickup point and freight before any payment is due. Manufacturer warranty: 30-year linear power output, no more than 1% loss in year one and 0.4% per year after that, ending at no less than 87.4% in year 30. Datasheet, warranty and installation manual are available in the Documents & Downloads section below.

Specifications (Seraphim datasheet SRP-DS-EN-2026V1.4 USA)

Documents & Downloads

Pallet ordering

Sold by the full pallet only. Prices are per pallet, EXW a CSE-controlled pickup location; freight is quoted separately. Submit an order request and our team confirms availability, pickup point and freight before any payment is due.
