SIRIUS PV ELNSM54M-HC-410 DC:BS-E-J 410W PERC Black Solar Panel | 108 Half-Cell
- UL 61730 Certified
- 25-Year Performance Warranty
- 15-Year Product Warranty
$199.99 / panel $0.49/W · 410 W
A 410 W monofacial PERC solar panel from SIRIUS PV’s ELNSM54M-HC black series: 108 half-cut cells, black frame, 21.00 % efficiency and 1500 V rating in a 67.80 × 44.65 in format. Sold in orders of 10 to 31 panels (31 = one full pallet), freight quoted and availability confirmed before payment.
Special Order — Availability Confirmed Before Payment
Freight Shipping: Quote Required. SIRIUS PV panels ship by freight. CSE confirms current availability and freight to your address before sending order and payment instructions. Local pickup is not available.
Minimum order: 10 panels. SIRIUS PV 410 W panels are sold in orders of 10 to 31 panels (31 panels = one full pallet). For larger quantities, request commercial pricing.
Minimum order: 10 panels. SIRIUS PV 410 W panels are sold in orders of 10 to 31 panels (31 panels = one full pallet). For larger quantities, request commercial pricing.
Verified product qualifications
CSE shows a qualification badge only when the manufacturer's or certifier's document names this exact model. Each badge below links to its source.
- UL 61730 Certified
Certifications: UL 61730-1, UL 61730-2 (with IEC 61215, IEC 61730, IEC 62804)
SIRIUS PV ELNSM54M-HC Series datasheet (DC:BS, DC:BS-E, DC:BS-E-J) · rev. 2025-03-13, 2025-03-13 · verified 2026-10-01
- 25-Year Performance Warranty
87.2 % at end of year 25
SIRIUS PV Warranty Certificate for Crystal PV Modules · rev. 2025-09-08, 2025-09-08 · verified 2026-10-01
- 15-Year Product Warranty
15-year product warranty from the warranty start date
SIRIUS PV Warranty Certificate for Crystal PV Modules · rev. 2025-09-08, 2025-09-08 · verified 2026-10-01

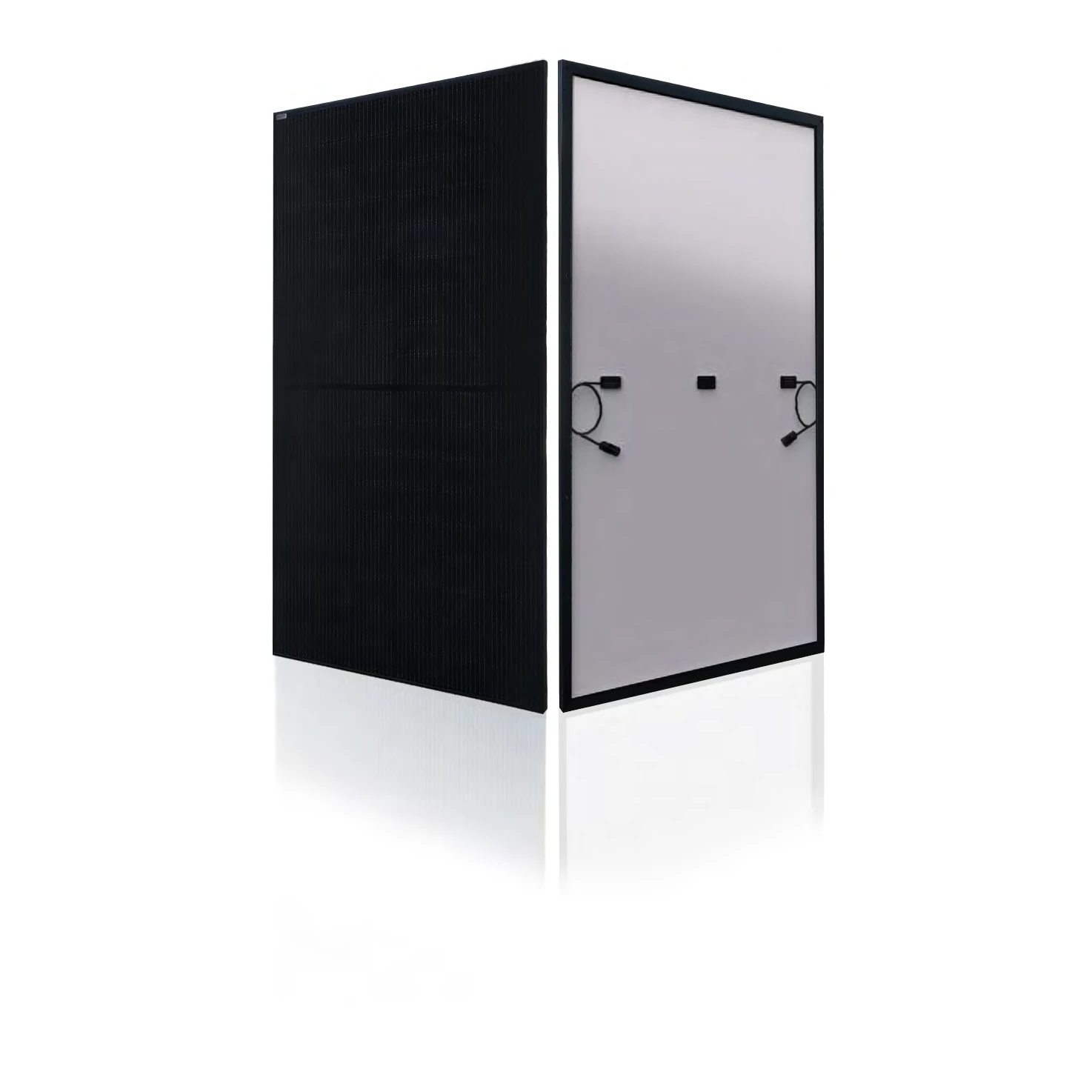

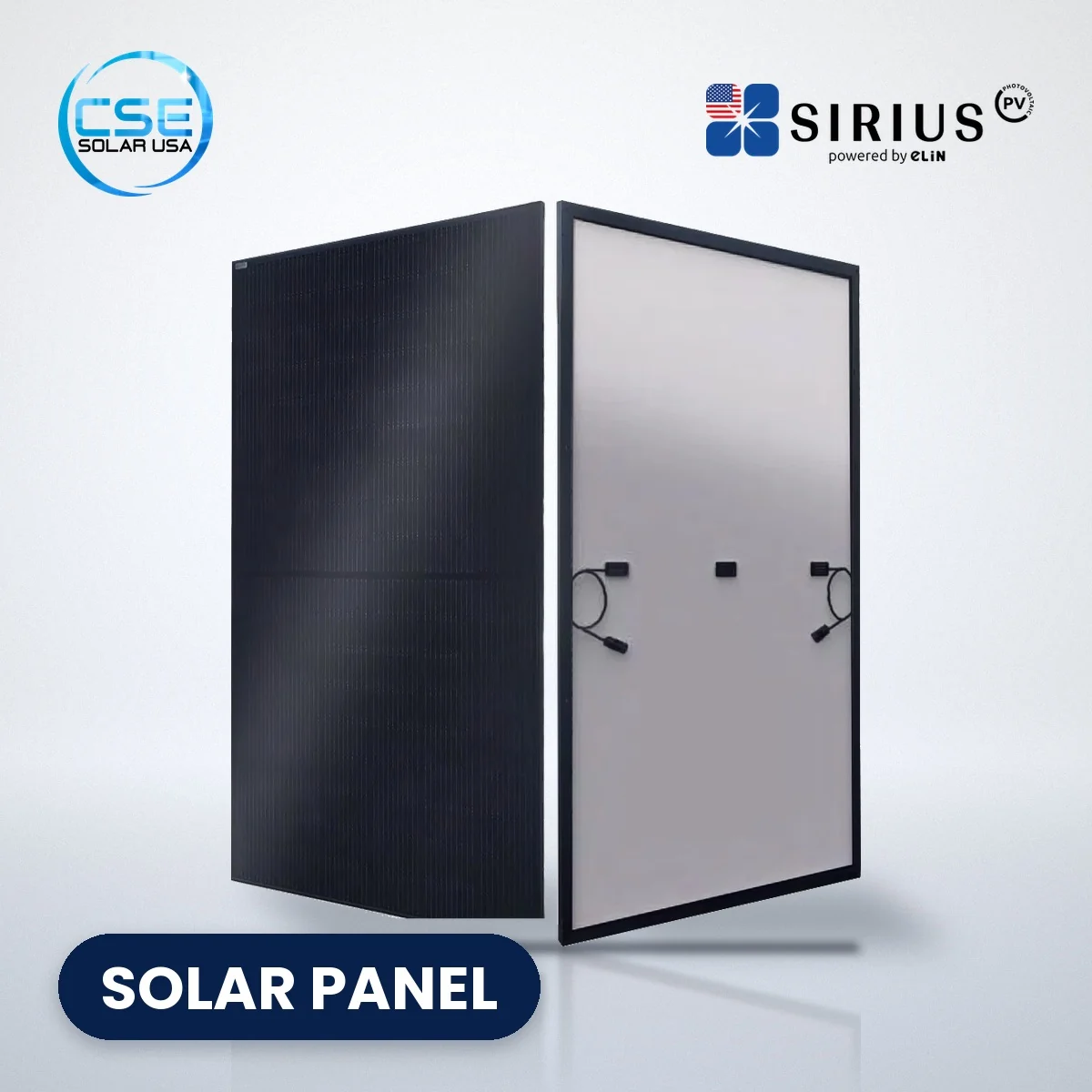

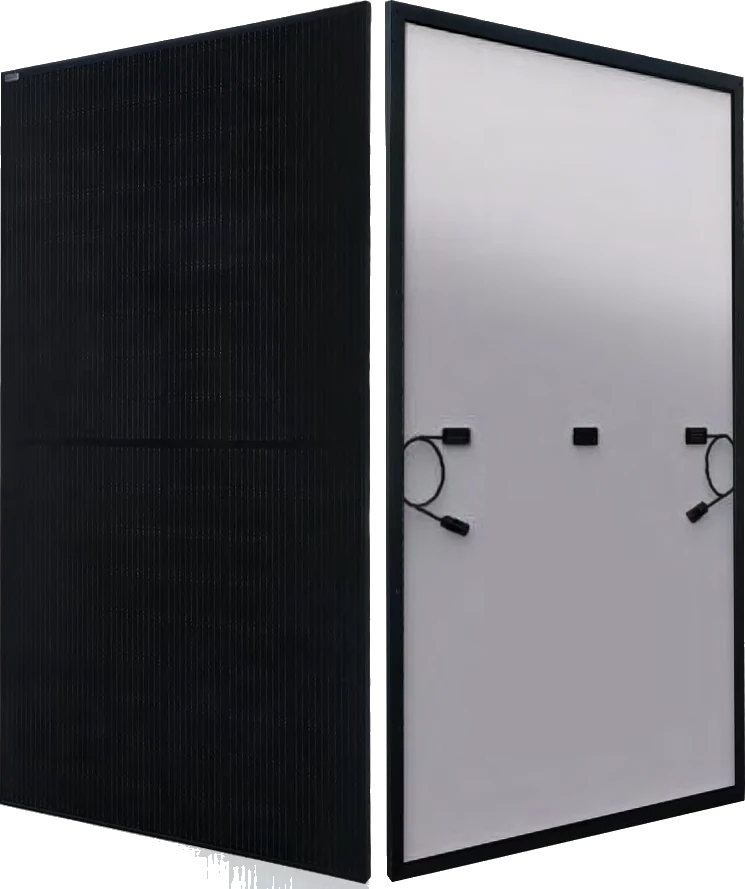

The SIRIUS PV ELNSM54M-HC-410 is the 410 W model of the SIRIUS PV ELNSM54M-HC black series: a monofacial PERC monocrystalline panel with 108 half-cut cells on 182 mm wafers, a black anodized frame and a 1500 V DC system rating. It is the PERC alternative to the higher-output SIRIUS PV 450 W N-type panel, in the same 67.80 × 44.65 in frame size.
About the configuration code: “DC:BS-E-J” is one of the configuration codes printed on the SIRIUS PV datasheet. SIRIUS PV does not publish what the code means, so CSE makes no domestic-content, IRA, Buy America or FEOC claim for it.
SIRIUS PV states in the applicable product datasheet that this module series is “Assembled in USA.”
Buying options
Key features
- PERC monocrystalline, half-cut cells: 108 half-cut cells with multi-busbar layout; 21.00 % module efficiency at 410 W.
- Black series: black anodized aluminum frame with 3.2 mm AR-coated tempered glass (monofacial “Black Series” per the datasheet).
- Utility-scale voltage rating: 1500 V DC maximum system voltage and 25 A series fuse rating.
- Tested loads: datasheet test load 5400 Pa front and rear; see the installation guide for clamping-dependent design loads.
- PID resistance: IEC 62804 listed on the datasheet.
Applications
Residential rooftops and small commercial arrays where a black-framed 108-cell module is wanted, and ground-mount or carport projects that use 1500 V string design. For projects comparing output per square foot, the 450 W N-type ELNSM54M-HC-N-450 is the higher-efficiency option in the same frame size.
Specifications
| Manufacturer | SIRIUS PV (ELIN Energy LLC) |
|---|---|
| Model | ELNSM54M-HC-410 |
| Configuration code | DC:BS-E-J (a configuration code listed on the SIRIUS PV datasheet; SIRIUS PV does not define it) |
| Series | ELNSM54M-HC (monofacial black series, 400–415 W) |
| Rated power (STC) | 410 W (power tolerance 0 / +4.99 W) |
| Cells | 108 half-cut PERC monocrystalline cells (182 mm, multi-busbar) |
| Bifacial | No (monofacial) |
| Module efficiency | 21.00 % |
| Electrical (STC) | Vmp 31.05 V · Imp 13.21 A · Voc 37.32 V · Isc 13.80 A |
| Power at NOCT | 308 W |
| Temperature coefficients | Pmax −0.34 %/°C · Voc −0.26 %/°C · Isc +0.05 %/°C |
| NOCT | 45 ± 2 °C |
| Max system voltage / series fuse | 1500 V DC / 25 A |
| Operating temperature | −40 to +85 °C |
| Dimensions | 67.80 × 44.65 × 1.38 in (1722 × 1134 × 35 mm) |
| Weight | 47.4 lb (21.5 kg) |
| Glass / frame | 3.2 mm AR-coated tempered glass / black anodized aluminum alloy |
| Junction box / cable | IP68, 3 diodes / 4.0 mm², 1350 mm (custom lengths specified at order) |
| Connector | MC4-compatible or Stäubli (specified at order) |
| Mechanical load (datasheet test) | 5400 Pa front / 5400 Pa rear |
| Certifications | IEC 61215, IEC 61730, IEC 62804, UL 61730-1, UL 61730-2 (datasheet); listed on the California Energy Commission PV module list |
| Packing | 31 modules per pallet |
Values from the official SIRIUS PV ELNSM54M-HC Series datasheet (rev. 2025-03-13) and warranty certificate (rev. 2025-09-08).
Warranty
The SIRIUS PV warranty certificate gives a 15-year product warranty (the datasheet headline says “up to 25 years”; extensions beyond 15 years are optional and at SIRIUS PV’s discretion under the warranty terms) and a 25-year linear performance warranty: ≤ 2.0 % loss in year 1, then ≤ 0.45 % per year, ≥ 87.2 % at year 25.
Frequently asked questions
Is the SIRIUS PV 410 W panel N-type?
No. The ELNSM54M-HC-410 uses PERC monocrystalline cells. SIRIUS PV’s N-type modules carry “-N” in the model number, such as the ELNSM54M-HC-N-450.
How many panels can I order online?
10 to 31 panels per order on this page; 31 panels is one full pallet. For more, request commercial pricing.
Is this panel bifacial?
No. It is the monofacial black-series version; SIRIUS PV lists bifacial models separately with “-BF” in the model number.
Documents
- SIRIUS PV ELNSM54M-HC Series datasheet (DC:BS, DC:BS-E, DC:BS-E-J) (rev. 2025-03-13)
- SIRIUS PV Installation Guide (USA) (rev. 2025-09-08)
- SIRIUS PV Warranty Certificate for Crystal PV Modules (rev. 2025-09-08)
More SIRIUS PV modules: SIRIUS PV solar panels at CSE Solar USA · all solar panels.
| Weight | 47.4 lbs |
|---|---|
| Dimensions | 67.80 × 44.65 × 1.38 in |
| MPN | ELNSM54M-HC-410 DC:BS-E-J |
| Series | ELNSM54M-HC Series |
| Wattage | 410 W |
| Cell technology | Mono PERC |
| Cells | 108 half-cut |
| Bifacial | No |
| Frame | Black anodized aluminum alloy |
| Dimensions | 67.80 × 44.65 × 1.38 in (1722 × 1134 × 35 mm) |
| Weight | 47.4 lb (21.5 kg) |
| Efficiency | 21.00 % |
| Max system voltage | 1500 V DC |
| Certification | UL 61730, IEC 61215, IEC 61730 |
| Product warranty | 15 yr |
| Performance warranty | 25 yr |
| Panels per pallet | 31 |
| Configuration code | DC:BS-E-J (not defined by SIRIUS PV) |
