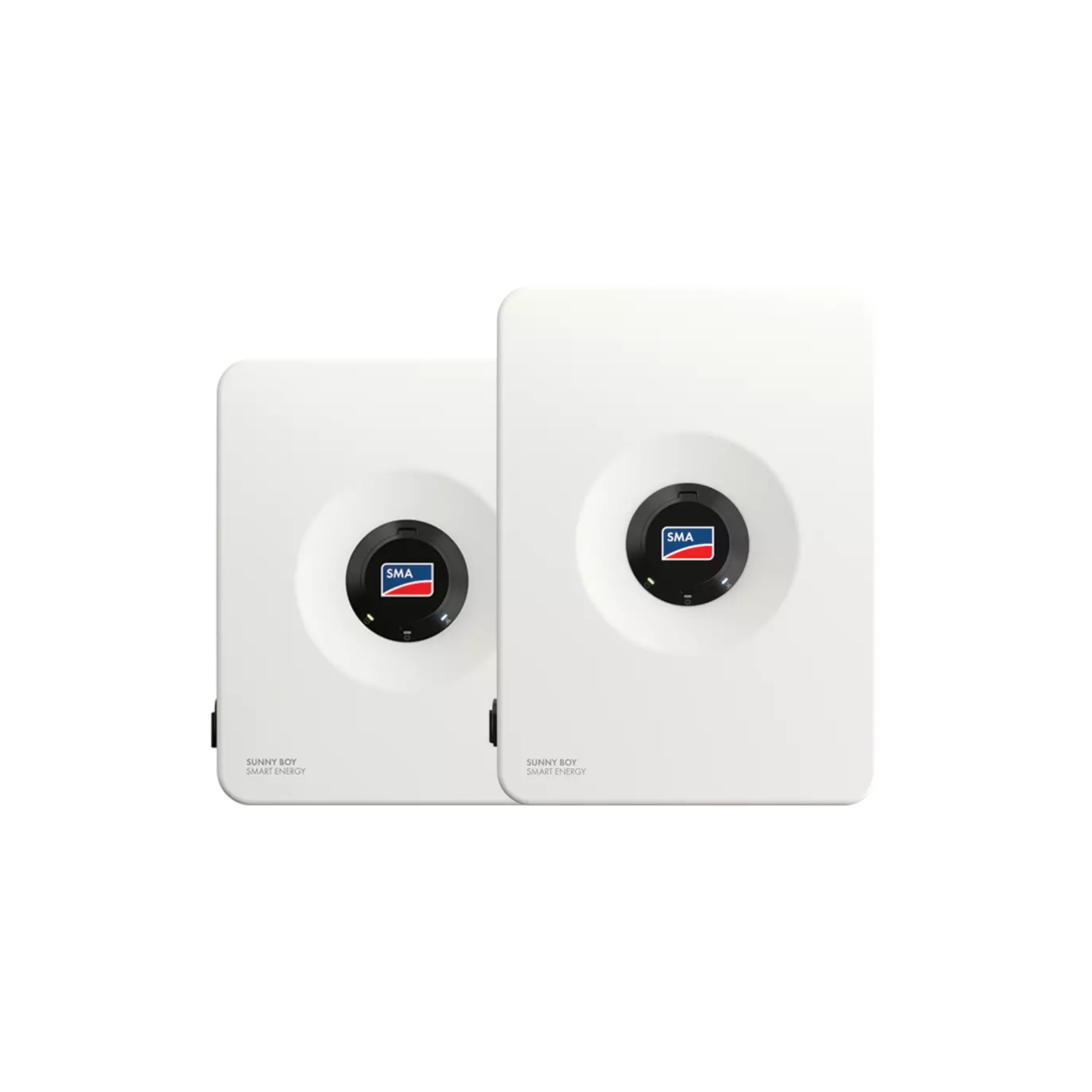

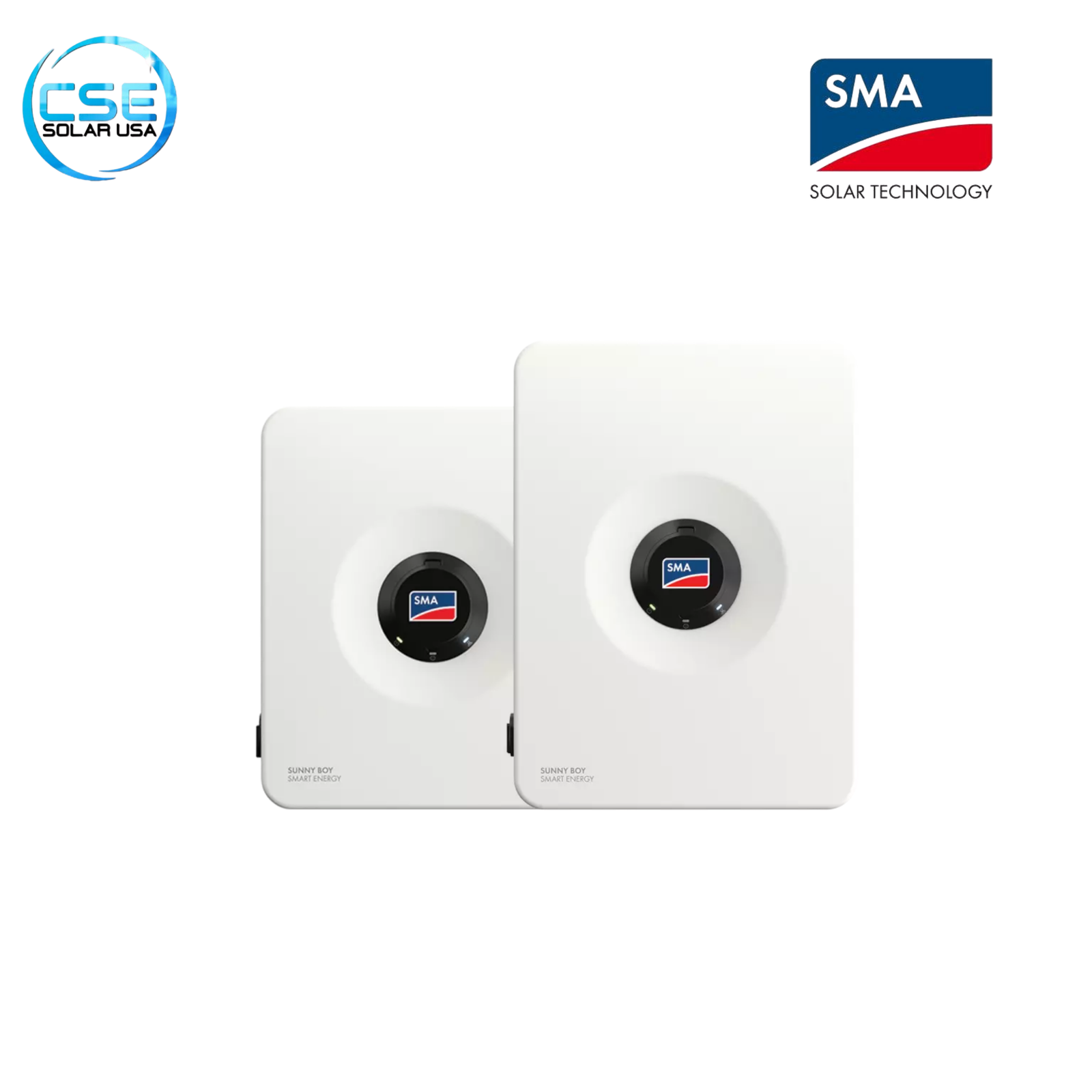

SMA Sunny Boy Smart Energy

The SMA Sunny Boy Smart Energy 9.6kW (SBSE9.6-US-50) is the ultimate all-in-one hybrid inverter. Combining solar PV and battery inverter functions into a single, compact unit, it eliminates the need for complex, multi-component setups. Built by one of the most trusted names in German engineering, this transformerless inverter is designed to maximize your energy independence while offering cutting-edge features like built-in rapid shutdown and the ability to draw backup power even without a battery.

Why Choose the SMA Sunny Boy Smart Energy

This inverter serves as the heart of a modern residential energy system. Rather than buying a standard solar inverter and adding an expensive AC-coupled battery system later, the SBSE9.6-US-50 does it all out of the box. It manages power directly from your roof, feeds your home, and pushes excess energy to an optional battery bank with incredible efficiency. Its fanless design makes it whisper-quiet, and the 200% DC oversizing capability means it can handle massive solar arrays to maximize energy production during winter months or cloudy days.

Benefits of the SMA Sunny Boy Smart Energy

• Massive Solar Capacity: With 200% DC oversizing capability, you can connect up to 19.2kW of solar panels to this 9.6kW inverter. This ensures your system captures maximum power during early mornings, late afternoons, and hazy conditions.

• Flexible Roof Layouts: Equipped with 4 independent MPPT channels, it easily handles complex roof designs where panels face different directions or experience varying shading conditions.

• Backup Power Made Simple: Features the optional SMA Backup Secure module. This provides up to 1,920W of emergency daytime power during grid outages, even if you do not have a battery installed.

• Silent Operation: Designed with natural convection cooling, this unit has no loud fans, ensuring quiet operation and reducing the risk of mechanical failure.

Frequently Asked Questions

Q1: Do I need a battery to use this inverter? No. While it is a hybrid inverter designed to work flawlessly with high-voltage batteries, it functions perfectly as a standard grid-tied solar inverter if you decide to add storage later.

Q2: What is SMA Backup Secure? It is a unique feature that allows you to wire a dedicated 120V outlet to the inverter. If the power grid goes down while the sun is shining, you can manually activate this outlet to draw up to 1,920 watts of emergency power directly from your solar panels, completely independent of a battery bank.

Q3: Which batteries are compatible with this unit? The SBSE series is optimized for high-voltage (90V to 500V) lithium-ion battery systems, such as the BYD Battery-Box Premium HVL series. Always check the latest SMA approved battery list for full compatibility.

Q4: Does this require microinverters or optimizers on the roof? No. SMA uses proprietary ShadeFix software optimization built directly into the inverter. This provides excellent shade mitigation without the added cost and potential failure points of installing optimizers on every single panel.

Q5: Can I install this inverter outdoors? Yes. The enclosure is NEMA 3R (IP65) rated, meaning it is protected against rain, sleet, and dust. However, installing it out of direct afternoon sunlight will help maximize its lifespan and efficiency.

If you have any questions about the item or your order, please feel free to message before purchasing. Thank you!
