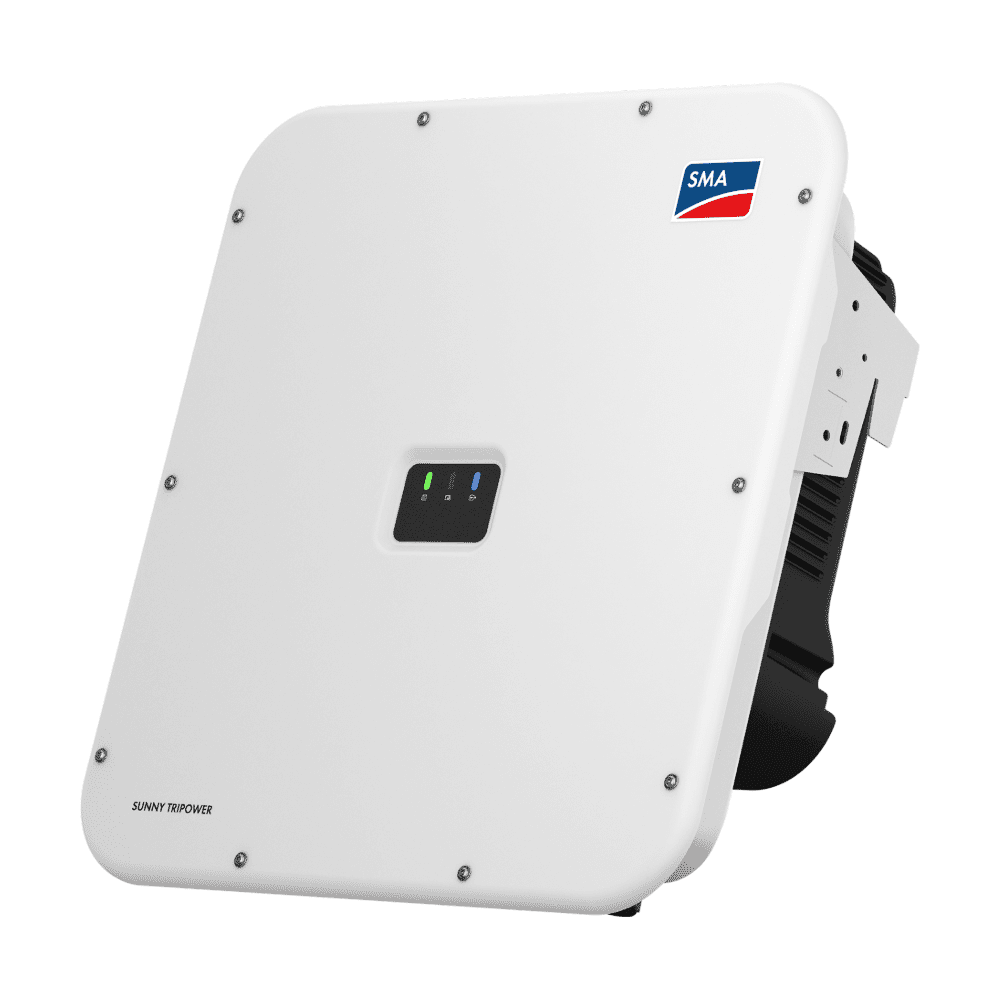

SMA Sunny Tripower X 13-US (STP 13-US-50) 13 kW Three-Phase Commercial String Inverter, 208 V

SMA Sunny Tripower X 13-US (STP 13-US-50): 13 kW commercial string inverter for 120/208 V three-phase systems

The SMA STP 13-US-50 (manufacturer part number 03-13-800-2-50) is the 13 kW model of the Sunny Tripower X 30 family, SMA’s proven three-phase string inverter platform for commercial and industrial PV systems in the United States. It converts up to 26,000 Wp of PV array power into 13,000 W of three-phase AC at 208 V / 120 V (3-phase WYE), using 3 independent MPP trackers with 2 string inputs each, so installers can split rooftops with different orientations, tilts or module counts across dedicated trackers.

This model is purpose-built for 120/208 V WYE service, the grid configuration found in many small and mid-size commercial buildings, schools, warehouses and multifamily properties. It connects directly without a step-up transformer, and supports up to 200 % DC:AC design flexibility per SMA.

Key features

• 3 independent MPP trackers (2 strings each) for flexible array design and maximum yield
• SMA ShadeFix string-level optimization without module-level electronics
• Integrated SunSpec PLC rapid shutdown transmitter (NEC 690.12) and UL 3741 PV Hazard Control listing
• DC AFCI arc-fault protection (UL 1699B) with ground-fault and residual-current monitoring
• Integrated SMA System Manager powered by ennexOS: commissioning, monitoring and control of up to 5 inverters from one device, no external data logger required for small systems
• Sunny Portal powered by ennexOS remote monitoring, SMA Smart Connected proactive service and SMA Dynamic Power Control (zero export, Volt-VAr)
• Ethernet (2 ports) and WLAN on board; SMA Modbus, SunSpec Modbus and Speedwire protocols
• Type 4X enclosure, -13 °F to +140 °F (-25 °C to +60 °C) operating range, OptiCool active cooling, C5 corrosivity class
• Load-rated DC disconnect integrated (AC disconnect kit 210841-00.01 optional)
• DC surge protection type 2 or type 1+2 (optional kits DC_SPD_KIT6-10 / DC_SPD_KIT7_T1T2)
• 10-year SMA Limited Factory Warranty, extendable to 15 or 20 years

Commercial and EPC applications

• Small and mid-size commercial buildings served at 120/208 V without a transformer
• Commercial and industrial rooftops (warehouses, distribution centers, manufacturing)
• Schools, municipal buildings and community facilities
• Retail centers, offices and multifamily properties
• Carports and ground-mount systems where multiple string inverters are combined
• Repowering of legacy string or central inverter systems (three-phase service)

Multiple Sunny Tripower X 30 inverters can be combined into larger plants: the integrated System Manager coordinates up to 5 inverters (max. 150 kVA) and one energy meter; larger systems use the SMA Data Manager M.

Technical specifications

Specifications from the official SMA datasheet (STP13-US-50-DS-en_us-18, last revision 08/2025). Data at nominal conditions; subject to change by SMA. Always confirm against the current datasheet before design.

Installation and application notes

• Mounting: Vertical rack or wall mount, up to 15° from horizontal.
• DC wiring: Amphenol H4 Plus connectors; AC wiring: Spring-cage terminal.
• Rapid shutdown: the inverter transmits the SunSpec PLC keep-alive signal; pair with SunSpec-certified module-level shutdown devices (e.g. SMA JMS-F / JMS-FA, sold separately).
• Commissioning and monitoring through the integrated System Manager web interface or the SMA 360° app; system registration in Sunny Portal powered by ennexOS.
• Grid support functions per UL 1741 SB / IEEE 1547-2018 including CA Rule 21 profiles; see the SMA derating and grid-management technical information for high-temperature and high-altitude operation.

What’s included

According to the SMA operating manual (section Scope of delivery):

• Inverter
• Mounting bracket
• 2x screw M5x14
• 6x positive and 6x negative DC connectors
• 6x sealing plugs for unused positive and negative DC inputs
• Unlocking tool for DC connectors
• Equipment grounding bar with screws, washers and conical spring washers
• Jumper
• 3-, 4- and 5-pole terminal blocks
• Documentation package with quick reference guide, PIC/RID registration keys and Wi-Fi password label

Optional accessories (SMA part numbers)

• DC terminal cover DC-TERM-COVER
• DC surge protection kits T2 DC_SPD_KIT6-10 / T1+2 DC_SPD_KIT7_T1T2
• SMA Sensor Module MD.SEN-US-40
• Roof Mount Kit 210462-00.01
• AC Disconnect Kit 210841-00.01
• SMA Data Manager M EDMM-US-10

Warranty

Covered by the SMA Limited Factory Warranty: 10 years for -US Sunny Tripower model types installed in the United States (5 years if installed outside the USA), starting at first commissioning or the invoice date. Optional ACTIVE / COMFORT warranty extensions of +5 or +10 years are available from SMA (total coverage cannot exceed 20 years). Source: SMA Limited Factory Warranty COM-RES-GB-en-88, effective for purchases after 2026-05-20.

Official SMA downloads

• Datasheet
• Operating manual / installation
• Online eManual
• SMA Limited Factory Warranty
• Efficiency and derating (technical information)
• ennexOS user manual
• Grounding of PV inverters (technical information)
• Manufacturer product page
• Warranty extension

Related SMA Sunny Tripower X models

• SMA Sunny Tripower X 20-US (STP 20-US-50) — 20 kW, 277/480 V, 3 MPPT
• SMA Sunny Tripower X 25-US (STP 25-US-50) — 25 kW, 277/480 V, 3 MPPT
• SMA Sunny Tripower X 30-US (STP 30-US-50) — 30 kW, 277/480 V, 3 MPPT
• SMA Sunny Tripower X 27-US (STP 27-US-80) — 27.5 kW, 120/208 V, 5 MPPT
• SMA Sunny Tripower X 50-US (STP 50-US-80) — 50 kW, 277/480 V, 5 MPPT
• SMA Sunny Tripower X 62-US (STP 62-US-80) — 62.5 kW, 277/480 V, 5 MPPT
• SMA Sunny Tripower X 70-US (STP 70-US-80) — 70 kW, 277/480 V, 5 MPPT

See also the SMA brand page for the CORE1 and Sunny Highpower PEAK3 series and SMA residential hybrid inverters.

Frequently asked questions

When will this model be available?

This is a newly released SMA model. CSE Solar USA is accepting pre-order inquiries; availability and lead time are confirmed by SMA and will be posted here. Contact CSE for the current status.

What grid voltage does the SMA STP 13-US-50 connect to?

It is designed for 208 V / 120 V (3-phase WYE) three-phase WYE service. Use the 480 V models (STP 20/25/30-US-50 or STP 50/62/70-US-80) for 277/480 V service.

How many strings can I connect?

3 MPP trackers with 2 string inputs each (6 strings total), up to 24 A operating current and 37.5 A short-circuit current per tracker.

Does it include rapid shutdown?

The inverter integrates the SunSpec PLC rapid shutdown transmitter and is UL 3741 PV Hazard Control listed. Module-level shutdown devices are purchased separately.

Do I need a separate data logger?

No for systems of up to 5 inverters: the integrated SMA System Manager (ennexOS) handles commissioning, monitoring and power control. Larger plants use the SMA Data Manager M.

What is the warranty?

10 years SMA Limited Factory Warranty in the USA, extendable to 15 or 20 years through SMA.

Is this the current model?

Yes. STP 13-US-50 is listed by SMA America as a current Sunny Tripower X 30 model (datasheet revision 08/2025).
