Fox ESS Smart 4GWiLAN Dongle | Wi-Fi + 4G Monitoring with Data Plan
$419.99
15 people are viewing this product right now
The Fox ESS Smart 4GWiLAN is a plug-in monitoring dongle that connects a Fox ESS PowerQ system to Fox ESS Cloud over Wi-Fi, LAN or 4G cellular. It is the right choice where home Wi-Fi is weak or unreliable.
- Wi-Fi 2.4 GHz, LAN and 4G LTE in one IP65 device
- Supplied with a 12.5-year 4G cellular data plan
- Plug and play on the Fox ESS PowerQ
- Available to order; ships from a U.S. distribution warehouse

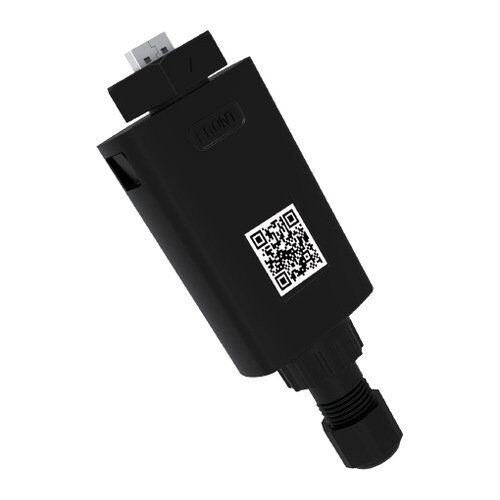

Fox ESS Smart 4GWiLAN Wi-Fi and 4G Monitoring Dongle
The Smart 4GWiLAN links a Fox ESS energy storage system to the Fox ESS Cloud monitoring platform so owners and installers can see live performance, history and alerts from the app or web portal. Alongside Wi-Fi and a wired LAN connection it carries a 4G cellular modem, which keeps the system online when the home network is weak, changes or goes down.
Staying online matters for warranty as well as monitoring: under the Fox ESS US Warranty Policy, a system operating without data communication to Fox Cloud is limited to a 60-month warranty instead of the standard 150 months.
Key Features
- Three ways to connect: Wi-Fi (2.4 GHz), LAN cable or 4G LTE cellular
- 12.5-year 4G cellular data plan, as listed by the U.S. distributor for part number 97-307-00001-00
- North American operators: Verizon, AT&T (FirstNet), T-Mobile and U.S. Cellular
- IP65 housing suitable for outdoor installation
- Plug and play: connects to the WIFI/4G port of the Fox ESS PowerQ
- Monitoring through the Fox ESS app and web portal, 24/7

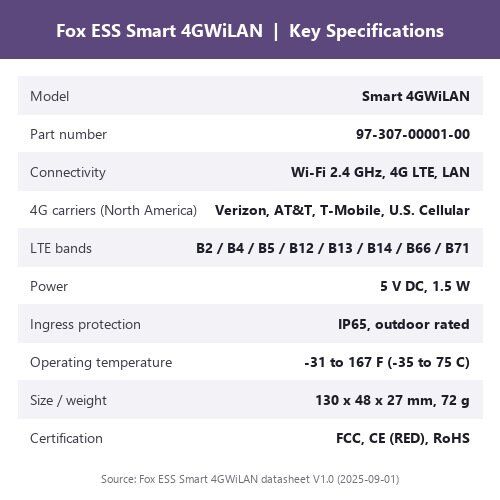

Technical Specifications
| Manufacturer / model | Fox ESS Smart 4GWiLAN |
|---|---|
| Manufacturer part number | 97-307-00001-00 |
| Connectivity | Wi-Fi 802.11 b/g/n (2.4 to 2.472 GHz), 4G LTE / WCDMA, LAN |
| 4G operators | North America: Verizon, AT&T (FirstNet), T-Mobile, U.S. Cellular |
| LTE / WCDMA bands | LTE-FDD B2 / B4 / B5 / B12 / B13 / B14 / B66 / B71; WCDMA B2 / B4 / B5 |
| Data rates | LTE-FDD 150 Mbps down / 50 Mbps up |
| Wi-Fi security | WEP / WPA-PSK / WPA2-PSK |
| Wi-Fi antenna gain | 3 dB; external 4G antenna |
| Power | 5 V DC, 0.2 to 0.3 A average, 1.5 W |
| Configuration | DHCP, static IP, firmware upload |
| Operating temperature | -31 to 167 F (-35 to 75 C) |
| Storage temperature | -40 to 221 F (-40 to 105 C) |
| Humidity | Up to 95 %, non-condensing |
| Ingress protection | IP65 |
| Installation | Pluggable |
| Certification | FCC, CE (RED), RoHS; cellular module GCF, FCC, PTCRB |
What Is Included
- 1 x Fox ESS Smart 4GWiLAN dongle (part number 97-307-00001-00)
Applications
- Remote monitoring of Fox ESS PowerQ systems where Wi-Fi coverage at the equipment is poor
- Sites where the homeowner may change routers or internet providers
- Installer fleet monitoring and keeping systems online for warranty
Compatibility
- Fox ESS PowerQ all-in-one systems: the Fox ESS PowerQ Quick Installation Guide shows the Smart WiLAN or Smart 4GWiLAN connecting to the PowerQ WIFI/4G port.
- For any other Fox ESS inverter, confirm compatibility with CSE before ordering.
Dimensions and Weight
| Product | 130 x 48 x 27 mm (5.1 x 1.9 x 1.1 in); 72 g (0.16 lb) |
|---|---|
| Shipping carton | 6 x 3 x 2 in, 0.2 lb |
Ordering Notes
- Available to order. This product is fulfilled from a U.S. distribution warehouse and is not stocked at CSE Solar USA’s own facility. Availability is confirmed when CSE reviews your order request, before any payment is taken.
- Cellular coverage depends on the carrier signal at the installation site.
Shipping Information
- Ships by ground parcel in a small carton, 6 x 3 x 2 in, 0.2 lb.
- Can ship together with a PowerQ system order.
Related Fox ESS Products
- Fox ESS PowerQ 11.4kW Hybrid Inverter
- Fox ESS Hub G2 200A Energy Management System
- PowerQ 11.4kW + 7.95kWh Bundle (2 x EQ4000)
- PowerQ 11.4kW + 11.92kWh Bundle (3 x EQ4000)
- PowerQ 11.4kW + 7.95kWh + Hub G2 Bundle
- All Fox ESS products at CSE Solar USA
Datasheets, Manuals and Installation Guides
- Fox ESS Smart 4GWiLAN Datasheet (PDF)
- PowerQ Quick Installation Guide, inverter and EQ4000 batteries (PDF)
- Fox ESS US Warranty Policy V3.0 (PDF)
Warranty
Accessories such as dataloggers carry a 24-month warranty under the Fox ESS US Warranty Policy. For the inverter, batteries and Hub, under the Fox ESS US Warranty Policy the term is 150 months from installation and commissioning, and no more than 155 months from the date of manufacture. Fox ESS limits coverage to 60 months from manufacture for a system that operates without data communication to Fox Cloud, so commission the system and keep it online. Warranty service is provided by Fox ESS under its published terms.
