Fox ESS PowerQ 11.4kW + 7.95kWh Battery Bundle | 2 x EQ4000
$5,649.99
8 people are viewing this product right now
Fox ESS PowerQ 11.4kW split-phase hybrid inverter bundled with two EQ4000 LFP battery modules for 7.95 kWh of storage.
- 1 x PowerQ 11.4kW inverter, 2 x EQ4000 3.97 kWh battery
- 5,760 W rated backup output with 2 modules; 11,400 W grid-tied
- Expandable to 5 modules (19.87 kWh) per inverter
- Ships LTL in 3 separate cartons, 308 lb total
- Available to order while every included component is available
Fox ESS PowerQ 11.4kW + 7.95kWh Battery Bundle
This CSE Solar USA bundle combines the Fox ESS PowerQ 11.4kW split-phase hybrid inverter with two EQ4000 lithium iron phosphate battery modules. The batteries stack beneath the inverter to form one floor-standing, outdoor-rated tower with 7.95 kWh of storage.
Sizing note: with 2 battery modules the PowerQ delivers 5,760 W of rated backup power (load start capacity 50 A LRA). Grid-tied output remains 11,400 W. Add EQ4000 modules if you need the full 11,400 W in backup.
Key Features
- 7.95 kWh of LFP storage from two EQ4000 modules, expandable to 5 modules (19.87 kWh) per inverter
- 11,400 W grid-tied AC output at 120/240 V split phase
- 5,760 W rated backup output with 2 battery modules (rises to 11,400 W with 4 or 5 modules)
- Up to 22,800 W of PV on 3 MPP trackers, 600 Vdc
- Type 4X inverter and IP65 batteries for indoor or outdoor installation

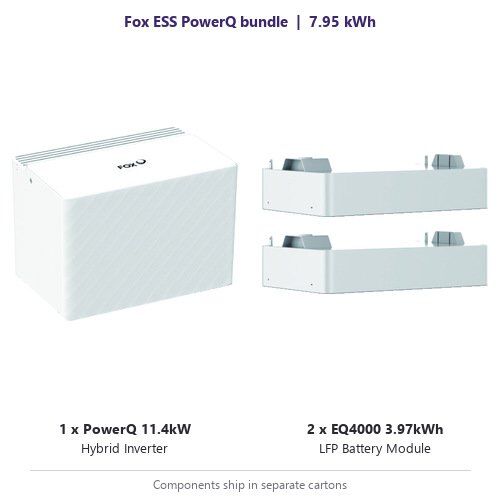

What Is Included

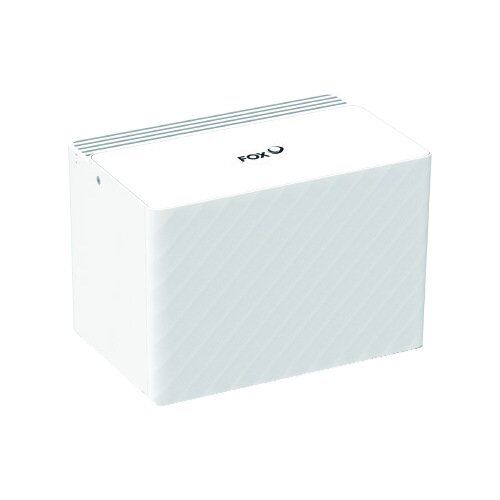

- 1 x Fox ESS PowerQ 11.4kW hybrid inverter with inverter base (AIO-H1-11.4-US, part number 30-139-1135F-00 or 30-139-1134F-00; see Ordering Notes)
- 2 x Fox ESS EQ4000 3.97 kWh LFP battery module (part number 97-223-00045-00), 7.95 kWh total
Not included: PV modules, racking, rapid-shutdown devices at the modules, AC and DC wiring, breakers, conduit, a backup gateway and installation.

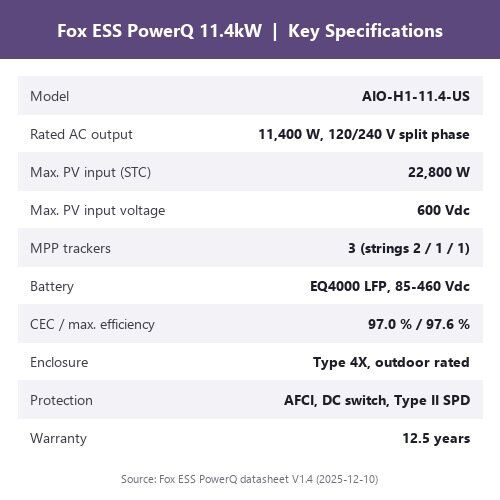

System Specifications
| Inverter | Fox ESS PowerQ AIO-H1-11.4-US, 11,400 W, 120/240 V split phase, 60 Hz |
|---|---|
| Storage | 2 x EQ4000 LFP, 7.95 kWh, nominal 115.2 V, 90 % depth of discharge |
| Backup output with this battery count | 5,760 W rated; load start capacity 50 A LRA |
| PV input | Up to 22,800 W STC, 600 Vdc max., 3 MPP trackers (2 / 1 / 1 strings), 28 / 14 / 14 A |
| Efficiency | 97.0 % CEC, 97.6 % max. |
| Battery current | 50 A continuous, 65 A for 60 s |
| Enclosures | Inverter Type 4X; batteries IP65 |
| Operating temperature | -13 to 131 F (-25 to 55 C), derating above 104 F (40 C) |
| Certifications | Inverter: UL 1741 SA / SB / CRD, UL 1699B, UL 1998, UL 9540, IEEE 1547-2018, Rule 21, HECO SRD-V2.0. Batteries: UL 1973, UL 9540, UL 9540A, UN 38.3. |
Applications
- Solar-plus-storage for homes with time-of-use rates or self-consumption goals
- Essential-load (partial-home) backup
- DC-coupled new installations or AC-coupled retrofits
- A starting point that can be expanded with more EQ4000 modules
Dimensions and Weight
| Assembled PowerQ tower | 22.4 W x 33.4 H x 15.0 D in; 282.9 lb |
|---|---|
| Total shipping weight | 308 lb in 3 cartons |
Installation: this is grid-interactive electrical equipment. It must be installed by a qualified, licensed installer in line with the Fox ESS manual, the National Electrical Code and local permitting and utility interconnection rules.
Ordering Notes
- This bundle is available only while every included component is available. CSE confirms all components at order review; if one is unavailable we will contact you before anything is charged.
- Available to order. This product is fulfilled from a U.S. distribution warehouse and is not stocked at CSE Solar USA’s own facility. Availability is confirmed when CSE reviews your order request, before any payment is taken, and lead time is confirmed with your order.
- Rapid-shutdown transmitter: the U.S. distributor lists this inverter as supplied with either an APsmart or a Tigo rapid-shutdown transmitter, under part number 30-139-1135F-00 or 30-139-1134F-00. The version cannot be selected online and depends on distributor stock. Tell CSE which module-level rapid-shutdown devices your array uses, and we will confirm the version available before the order is released and before any payment is taken.
- Need a different battery quantity or parallel inverters? Call 702-608-8385 or email in**@*********sa.com for a project quote.
Shipping and Freight Information
- This bundle ships as 3 separate cartons, 308 lb total. There is no single combined carton.
- PowerQ inverter: 1 carton, 28 x 26 x 22 in, 132 lb.
- EQ4000 batteries: 2 cartons, each 26 x 18 x 10 in, 88 lb.
- Ships by LTL freight. Cartons may arrive on one pallet or as multiple pieces.
- Additional freight services such as liftgate, residential, limited-access or appointment delivery may add charges, which are confirmed before the order is released.
- Inspect every carton at delivery and note any damage or shortage on the delivery receipt before signing.
Related Fox ESS Products
- PowerQ 11.4kW + 11.92kWh Bundle (3 x EQ4000)
- PowerQ 11.4kW + 7.95kWh + Hub G2 Bundle
- Fox ESS PowerQ 11.4kW Hybrid Inverter
- Fox ESS EQ4000 3.97kWh Battery Module
- Fox ESS Hub G2 200A Energy Management System
- Fox ESS Smart 4GWiLAN Wi-Fi + 4G Dongle
- All Fox ESS products at CSE Solar USA
Datasheets, Manuals and Installation Guides
- Fox ESS PowerQ All-in-One Datasheet (PDF)
- Fox ESS EQ4000 Battery Datasheet (PDF)
- PowerQ Quick Installation Guide, inverter and EQ4000 batteries (PDF)
- PowerQ User Manual, systems without Fox Hub (PDF)
- PowerQ Three-Line Diagram, without Hub (PDF)
- Fox ESS US Warranty Policy V3.0 (PDF)
Warranty
Fox ESS lists a 12.5-year standard warranty for this equipment. Under the Fox ESS US Warranty Policy the term is 150 months from installation and commissioning, and no more than 155 months from the date of manufacture. Fox ESS limits coverage to 60 months from manufacture for a system that operates without data communication to Fox Cloud, so commission the system and keep it online. Warranty service is provided by Fox ESS under its published terms.
