Fox ESS Hub G2 200A Smart Energy Management System
$549.99
13 people are viewing this product right now
The Fox ESS Hub G2 is a 200 A smart energy management system and microgrid interconnection device. It gives a Fox ESS storage system whole-home backup with switchover in under 20 ms, three smart load circuits, a generator input and a built-in energy meter.
- 200 A, 48 kW, 120/240 V
- Three smart circuits and generator input with 2-wire start
- Supports up to 4 Fox ESS inverters
- Type 3R enclosure, 37.4 lb
- Available to order; ships from a U.S. distribution warehouse
Fox ESS Hub G2 200A Smart Energy Management System

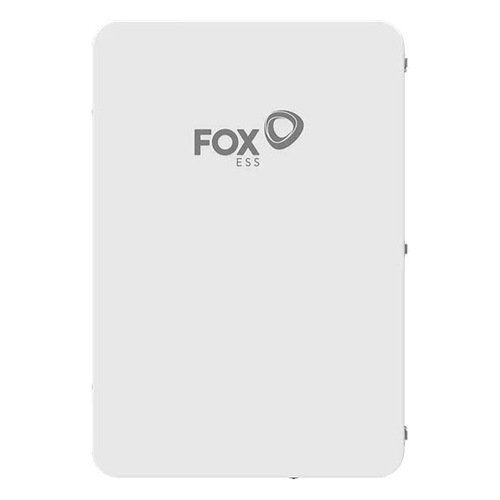

The Hub G2 sits between the utility meter and the home and turns a Fox ESS PowerQ or US Series storage system into a whole-home backup solution. Its 200 A microgrid interconnection device isolates the home from the grid in under 20 milliseconds during an outage, while a built-in revenue-style energy meter removes the need for external CT and meter wiring.
Key Features
- 200 A service rating, 48 kW rated AC power, 22 kA short-circuit breaking capacity
- Grid-to-backup switchover in under 20 ms
- Three integrated smart circuits (one 240 V, two 120 V, 80 A) for intelligent load control
- Generator input up to 48 kW with 2-wire start; Fox ESS states compatibility with Generac generators
- Built-in import / export energy meter, 0.5 % accuracy
- Supports up to four Fox ESS inverters in parallel

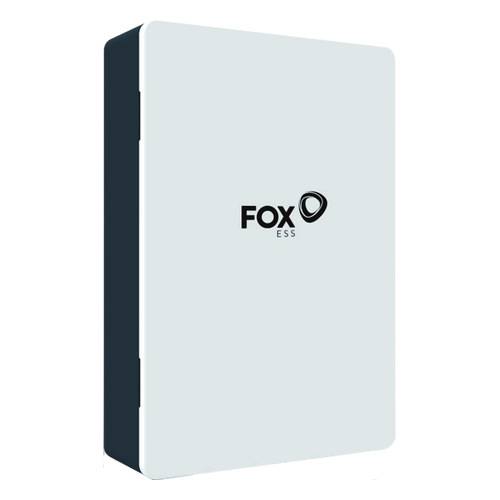

- Type 3R enclosure for indoor or outdoor wall mounting

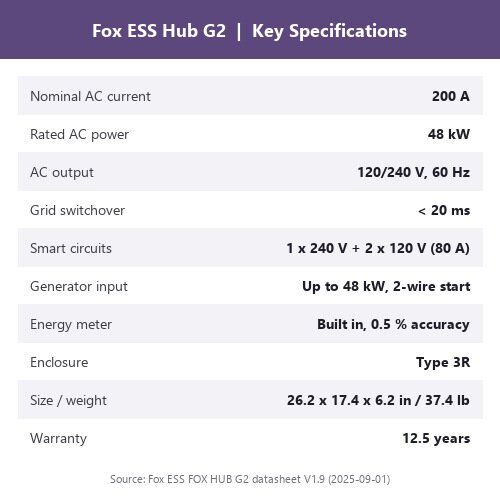

Technical Specifications
| Manufacturer / model | Fox ESS FOX HUB G2 |
|---|---|
| Manufacturer part number | 30-403-00004-B0 |
| Nominal AC current / rated power | 200 A / 48 kW |
| AC voltage | 240 V input, 120/240 V output, 211 to 264 V range, 60 Hz |
| Microgrid interconnection device | 200 A |
| Short-circuit breaking capacity | 22 kA |
| Grid disconnection switchover | Under 20 ms |
| Connections | Solar 80 A, Fox inverter 80 A, smart circuit 1 (240 V) 80 A, smart circuits 2 and 3 (120 V) 80 A, backup load 200 A, non-backup load 200 A, busbar 280 A |
| Generator input (optional use) | Up to 48 kW, 200 A, 2-wire start, dry contact 250 Vac / 30 Vdc |
| Inverters supported | Up to 4 Fox ESS inverters in parallel |
| Energy meter | Built in, 0.5 % accuracy, import and export |
| Communication | CAN, RS485 |
| Conduit entries | Grid and generator 2.5 in (6 AWG to 250 kcmil), communication 1 in (24 to 16 AWG) |
| Enclosure / cooling | Type 3R, natural convection, under 35 dB |
| Operating temperature | -4 to 122 F (-20 to 50 C) |
| Compliance | UL 67, UL 869A, UL 916, UL 1741, CSA 22.2 No. 107, FCC Part 15 Class B |
What Is Included
- 1 x Fox ESS Hub G2 (part number 30-403-00004-B0), the version with generator input, smart circuits and WLAN
Inverters, batteries, breakers for customer loads and a standby generator are not included.
Applications
- Whole-home backup for Fox ESS PowerQ and US Series systems
- Partial-home backup where the Hub G2 is not the service panel
- Homes that combine solar, storage and a standby generator
- Parallel systems with up to four inverters
Dimensions and Weight
| Product | 26.2 H x 17.4 W x 6.2 D in (665 x 443 x 156.6 mm); 37.4 lb (17 kg) |
|---|---|
| Shipping carton | 31 x 22 x 12 in, 52 lb |
Installation: this is grid-interactive electrical equipment. It must be installed by a qualified, licensed installer in line with the Fox ESS manual, the National Electrical Code and local permitting and utility interconnection rules.
Ordering Notes
- Available to order. This product is fulfilled from a U.S. distribution warehouse and is not stocked at CSE Solar USA’s own facility. Availability is confirmed when CSE reviews your order request, before any payment is taken, and lead time is confirmed with your order.
- Confirm the service size, backup architecture and generator model with your installer before ordering.
Shipping and Freight Information
- Ships in one carton, 31 x 22 x 12 in, 52 lb.
- Additional freight services such as liftgate, residential, limited-access or appointment delivery may add charges, which are confirmed before the order is released.
- Inspect every carton at delivery and note any damage or shortage on the delivery receipt before signing.
Related Fox ESS Products
- Fox ESS PowerQ 11.4kW Hybrid Inverter
- Fox ESS EQ4000 3.97kWh Battery Module
- PowerQ 11.4kW + 7.95kWh + Hub G2 Bundle
- Fox ESS Smart 4GWiLAN Wi-Fi + 4G Dongle
- All Fox ESS products at CSE Solar USA
Datasheets, Manuals and Installation Guides
- Fox ESS Hub G2 Datasheet (PDF)
- PowerQ User Manual, systems with Fox Hub G2 (PDF)
- PowerQ Three-Line Diagram with Hub G2, Fox ESS website (PDF)
- Fox ESS US Warranty Policy V3.0 (PDF)
Warranty
Fox ESS lists a 12.5-year standard warranty for this equipment. Under the Fox ESS US Warranty Policy the term is 150 months from installation and commissioning, and no more than 155 months from the date of manufacture. Fox ESS limits coverage to 60 months from manufacture for a system that operates without data communication to Fox Cloud, so commission the system and keep it online. Warranty service is provided by Fox ESS under its published terms.
