Fox ESS EQ4000 3.97kWh LiFePO4 Battery Module
$1,379.99
46 people are viewing this product right now
The Fox ESS EQ4000 is a 3.97 kWh lithium iron phosphate battery module for the PowerQ all-in-one system. Modules stack under the PowerQ inverter, 2 to 5 per inverter, for 7.95 to 19.87 kWh of storage.
- 3.97 kWh LFP module, 90 % depth of discharge
- IP65, indoor or outdoor
- UL 1973, UL 9540 and UL 9540A
- For Fox ESS PowerQ inverters only; minimum 2 modules
- Available to order; ships by LTL freight from a U.S. distribution warehouse

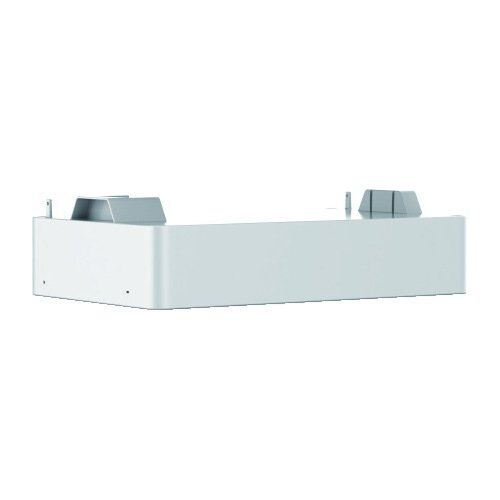

Fox ESS EQ4000 3.97kWh Lithium Iron Phosphate Battery Module

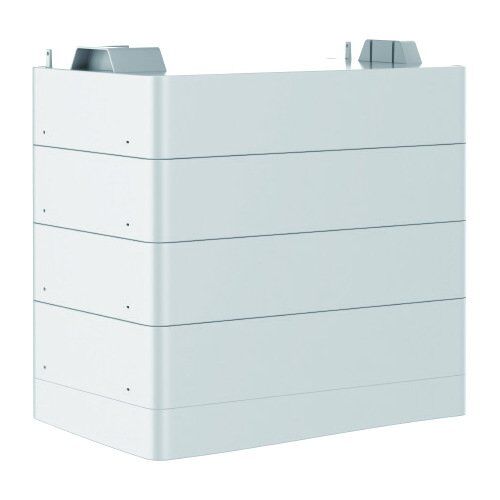

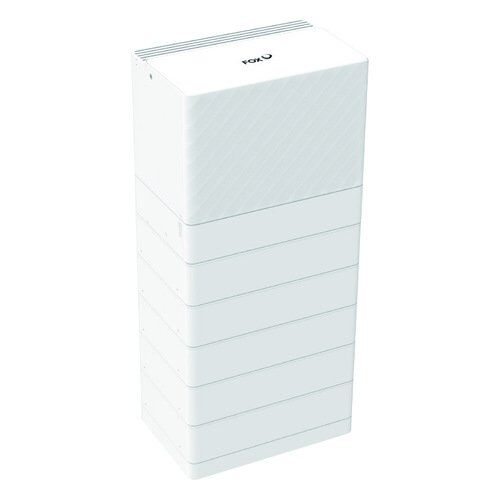

The EQ4000 is the stackable high-voltage battery module for the Fox ESS PowerQ all-in-one energy storage system. Each module stores 3.97 kWh. Modules stack vertically beneath the PowerQ inverter and connect through the built-in stacking connectors, so capacity is added one module at a time without external battery cabling between modules.
This listing is for one EQ4000 module. A PowerQ inverter needs at least two modules, and up to five modules per inverter are supported in the US mainland.
Key Features
- 3.97 kWh per module using LFP (LiFePO4) chemistry
- Stack 2 to 5 modules per PowerQ inverter: 7.95, 11.92, 15.9 or 19.87 kWh
- 50 A continuous charge and discharge, 65 A peak for 60 seconds
- Over 95 % round-trip efficiency and 90 % depth of discharge
- IP65 protection for indoor or outdoor floor-standing installation
- Listed to UL 1973, UL 9540 and UL 9540A; UN 38.3 transport tested

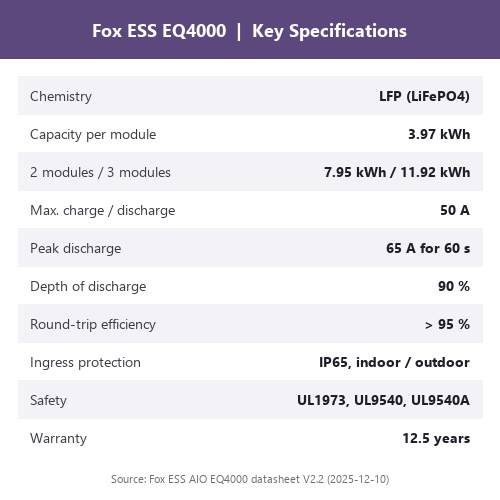

Technical Specifications
| Manufacturer / model | Fox ESS AIO EQ4000 |
|---|---|
| Manufacturer part number | 97-223-00045-00 |
| Chemistry | LFP (LiFePO4) |
| Capacity | 3.97 kWh per module; 7.95 kWh with 2, 11.92 kWh with 3, 15.9 kWh with 4, 19.87 kWh with 5 modules |
| Nominal stack voltage | 115.2 V (2 modules), 172.8 V (3), 230.4 V (4), 288 V (5) |
| Max. charge / discharge current | 50 A; peak discharge 65 A for 60 s |
| Round-trip efficiency | Over 95 % |
| Depth of discharge | 90 % |
| Communication | CAN |
| Installation | Indoor or outdoor, floor standing, modules stacked under the PowerQ inverter |
| Operating temperature | -13 to 131 F (-25 to 55 C), derating above 104 F (40 C) |
| Storage temperature | -4 to 131 F (-20 to 55 C) |
| Ingress protection | IP65 |
| Max. altitude | 6,560 ft |
| Certifications | UL 1973, UL 9540, UL 9540A, UN 38.3 |
What Is Included
- 1 x Fox ESS EQ4000 3.97 kWh battery module (part number 97-223-00045-00)
- Module fixing hardware supplied by Fox ESS in the battery carton
The PowerQ inverter and inverter base are sold separately.
Applications
- Energy storage for new Fox ESS PowerQ systems
- Capacity expansion of an existing PowerQ system, within the 2 to 5 module range per inverter
- Backup power, self-consumption and time-of-use shifting
Compatibility and Sizing
- For Fox ESS PowerQ (AIO 3.8 to 11.4 kW) inverters only. Not compatible with other inverter brands or other Fox ESS battery series.
- PowerQ 11.4kW backup output by battery count: 5,760 W with 2 modules, 8,640 W with 3, 11,400 W with 4 or 5.
Dimensions and Weight
| Battery stack, 2 modules | 22.4 W x 13.0 H x 15.0 D in; 157.6 lb |
|---|---|
| Battery stack, 3 modules | 22.4 W x 16.5 H x 15.0 D in; 234.8 lb |
| Battery stack, 4 modules | 22.4 W x 21.3 H x 15.0 D in; 312 lb |
| Battery stack, 5 modules | 22.4 W x 26.0 H x 15.0 D in; 389.1 lb |
| Shipping carton, per module | 26 x 18 x 10 in, 88 lb |
Installation: this is grid-interactive electrical equipment. It must be installed by a qualified, licensed installer in line with the Fox ESS manual, the National Electrical Code and local permitting and utility interconnection rules.
Ordering Notes
- Priced and sold per module. Order at least two modules for each PowerQ inverter.
- Available to order. This product is fulfilled from a U.S. distribution warehouse and is not stocked at CSE Solar USA’s own facility. Availability is confirmed when CSE reviews your order request, before any payment is taken, and lead time is confirmed with your order.
- Lithium batteries are regulated for transport and ship by freight only.
Shipping and Freight Information
- Ships by LTL freight. Each module ships in its own carton, 26 x 18 x 10 in, 88 lb.
- Additional freight services such as liftgate, residential, limited-access or appointment delivery may add charges, which are confirmed before the order is released.
- Inspect every carton at delivery and note any damage or shortage on the delivery receipt before signing.
Related Fox ESS Products
- Fox ESS PowerQ 11.4kW Hybrid Inverter
- Fox ESS Hub G2 200A Energy Management System
- PowerQ 11.4kW + 7.95kWh Bundle (2 x EQ4000)
- PowerQ 11.4kW + 11.92kWh Bundle (3 x EQ4000)
- PowerQ 11.4kW + 7.95kWh + Hub G2 Bundle
- All Fox ESS products at CSE Solar USA
Datasheets, Manuals and Installation Guides
- Fox ESS EQ4000 Battery Datasheet (PDF)
- PowerQ Quick Installation Guide, inverter and EQ4000 batteries (PDF)
- PowerQ User Manual, systems without Fox Hub (PDF)
- Fox ESS US Warranty Policy V3.0 (PDF)
Warranty
Fox ESS lists a 12.5-year standard warranty for this equipment. Under the Fox ESS US Warranty Policy the term is 150 months from installation and commissioning, and no more than 155 months from the date of manufacture. Fox ESS limits coverage to 60 months from manufacture for a system that operates without data communication to Fox Cloud, so commission the system and keep it online. Warranty service is provided by Fox ESS under its published terms.
