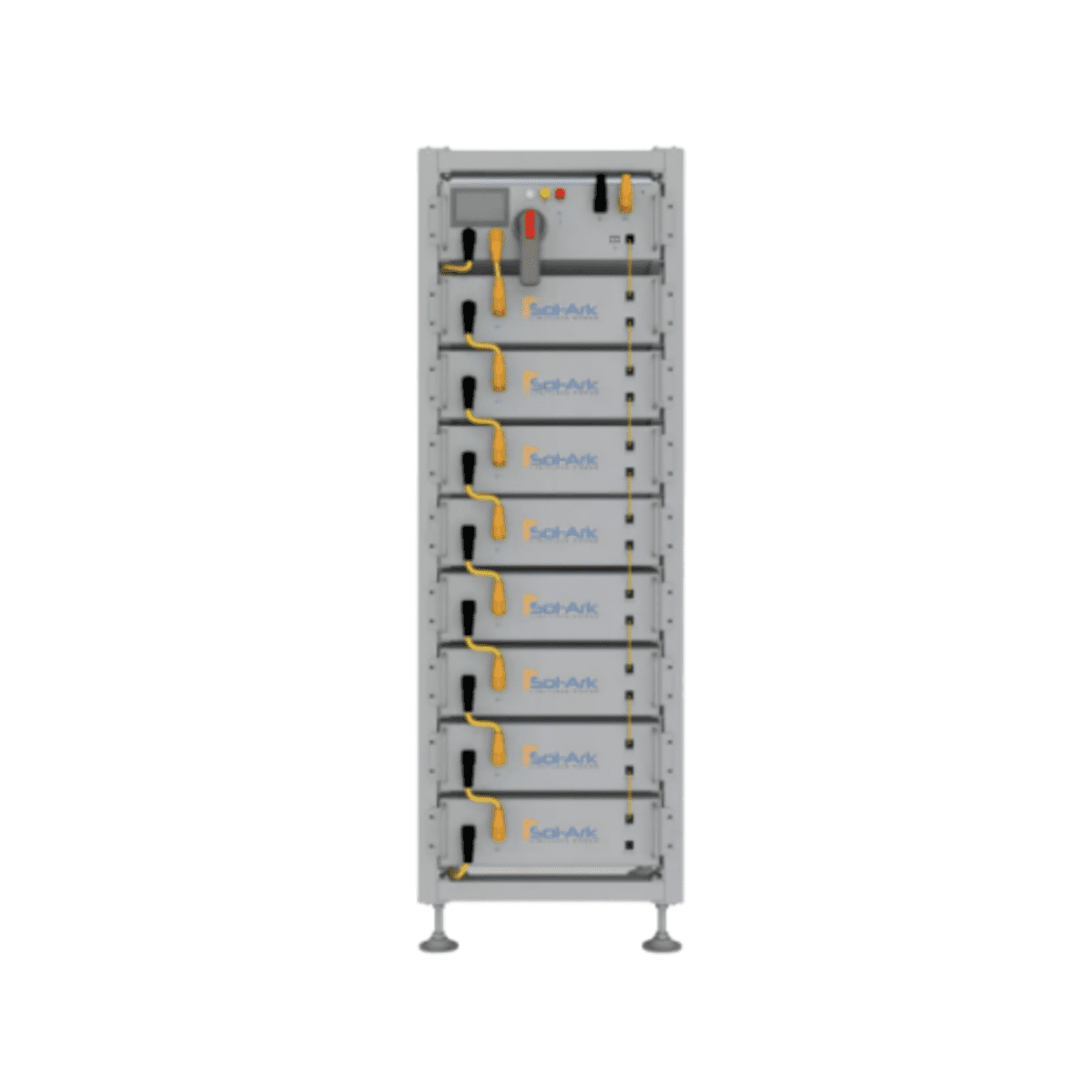

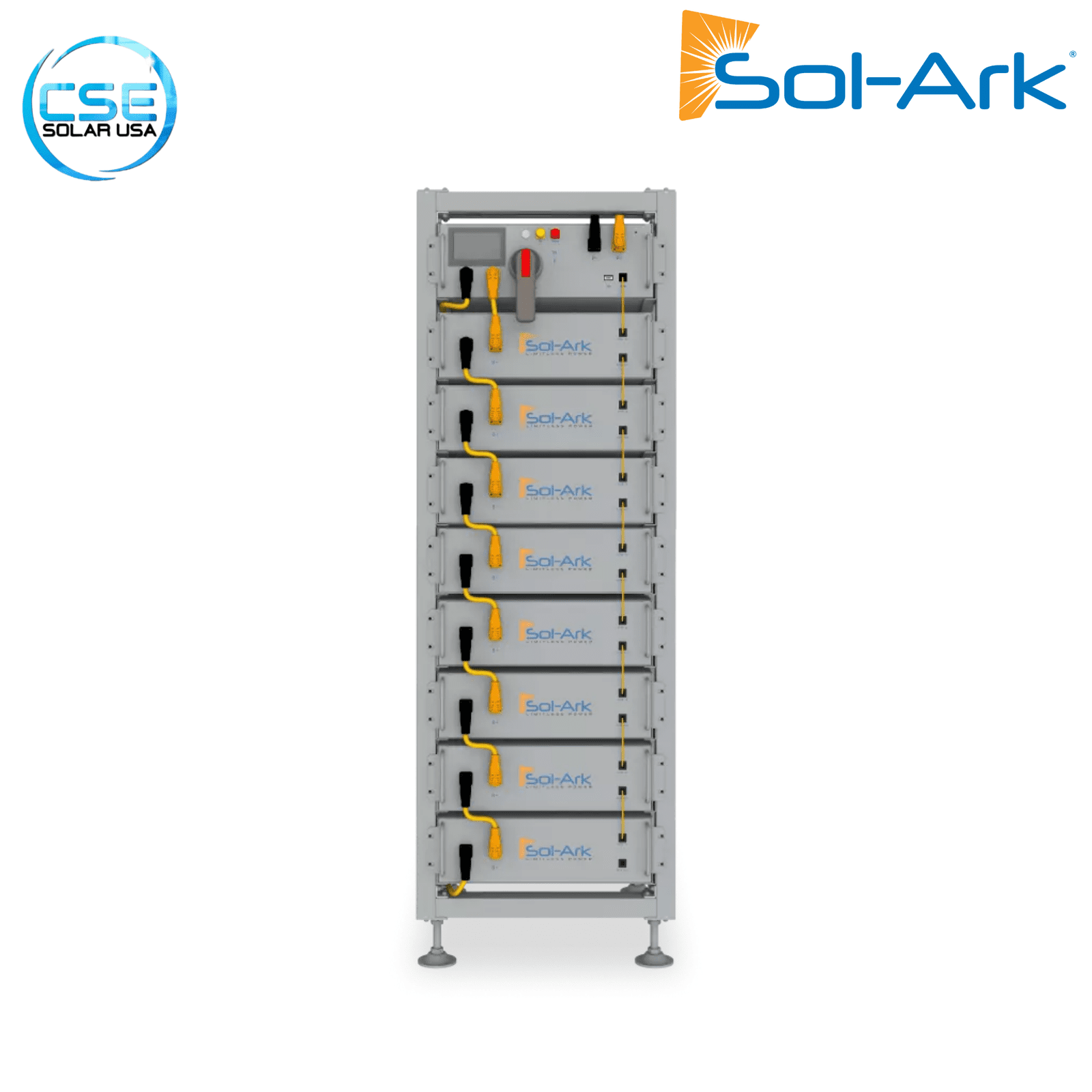

Sol-Ark 60kWh High Voltage Battery Bank – IP20 Indoor – Use with Sol-Ark 60K

*Please note that the Sol-Ark 60K Inverter is sold separately*

The Sol-Ark 60kWh HV Battery Bank (L3-HV-60-IP20) is a commercial-grade energy storage solution engineered specifically for the Sol-Ark 60K-3P-480V inverter. This indoor-rated (IP20) system features a high-voltage stack of Lithium Iron Phosphate (LFP) modules, delivering ~61.4 kWh of total capacity. It is designed for commercial peak shaving, demand management, and robust backup power in climate-controlled environments.

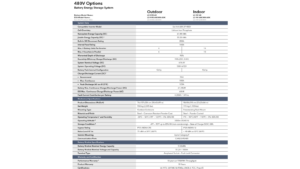

Product Specifications

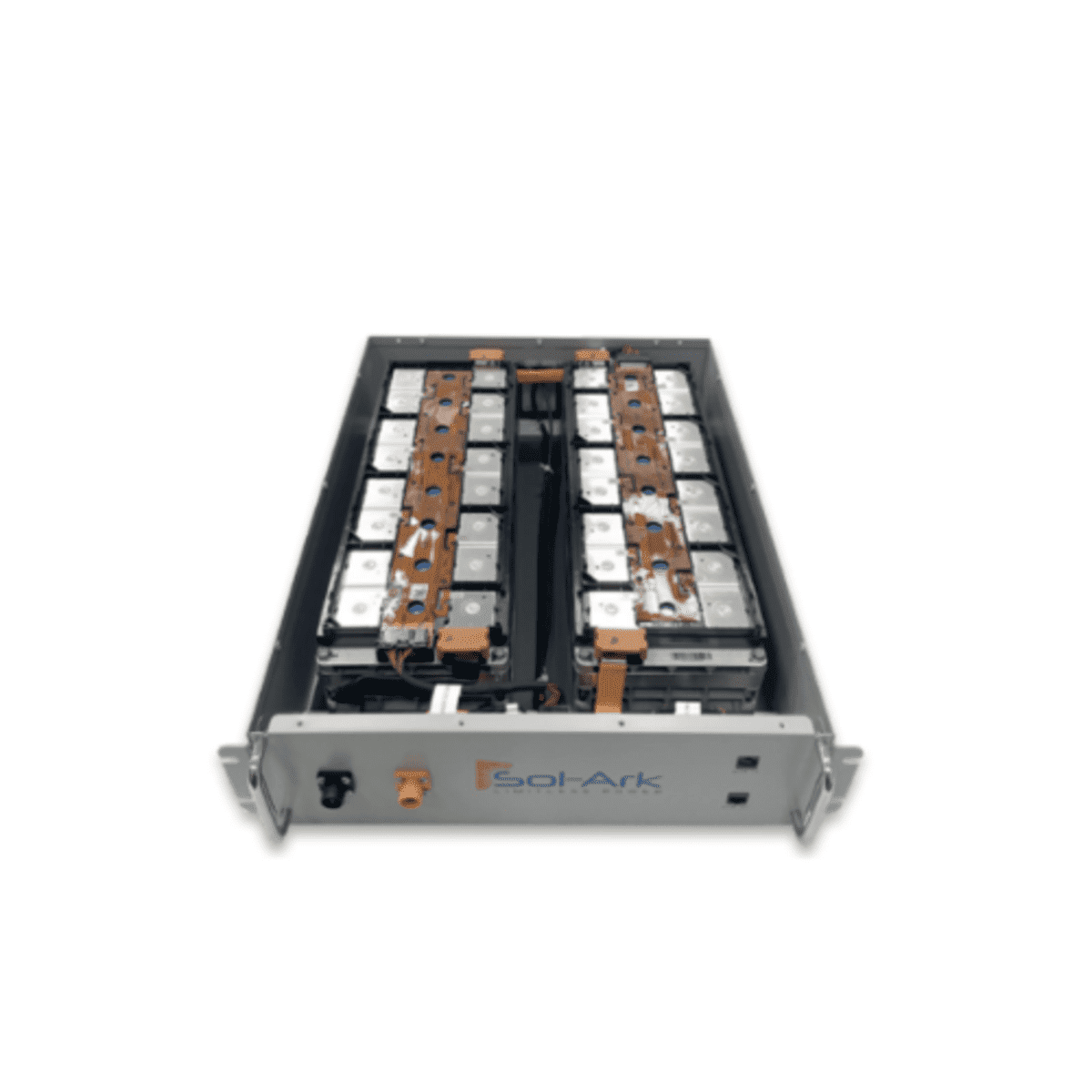

• Battery Module: 5.12 kWh (100Ah)

• Configuration: 12 Modules in Series

• Nominal Voltage: 614.4 V

• Voltage Range: 561V – 700V

• Max Continuous Charge/Discharge: 100 A

• Cycle Life: > 6000 Cycles (@ 80% DoD)

• Communication: CAN / RS485

Why Choose Sol-Ark 60kWh HV Battery

This battery bank is the dedicated energy reservoir for the Sol-Ark 60K commercial inverter. By operating at a high nominal voltage (~614V), it minimizes current loss and cabling costs compared to low-voltage systems, ensuring maximum efficiency for large commercial loads. Its modular rack-mount design allows for easy installation in electrical rooms, providing a compact yet powerful solution for businesses looking to cut demand charges or secure critical operations.

Benefits of Sol-Ark 60kWh HV Battery

• High Voltage Efficiency: The native high-voltage architecture pairs perfectly with the Sol-Ark 60K, reducing conversion losses and enabling thinner, less expensive wiring.

• Commercial Safety: Built with stable LFP chemistry and integrated aerosol fire suppression in every module, ensuring compliance with strict commercial fire codes.

• Demand Charge Reduction: Massive capacity allows businesses to store cheap solar power and deploy it during peak rate hours, drastically lowering utility bills.

• Modular Scalability: The system is built on 5.12kWh modules, allowing you to easily expand storage capacity as your business grows without replacing the entire system.

General Data

• Dimensions (WxDxH): 23 x 23 x 86 in

• Weight (Total): Approx. 1,705 lbs

• Enclosure Rating: IP20 (Indoor Use Only)

• Operating Temperature: 32°F to 113°F (0°C to 45°C)

• Certifications: UL1973, UL9540, UL9540A

Frequently Asked Questions

Q1: Is this battery compatible with the smaller Sol-Ark 15K?

No. This is a High Voltage (HV) battery system (~614V) designed specifically for the Sol-Ark 60K-3P commercial inverter. The Sol-Ark 15K uses low-voltage (48V) batteries.

Q2: Can I install this battery outside?

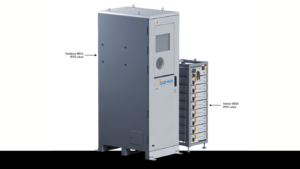

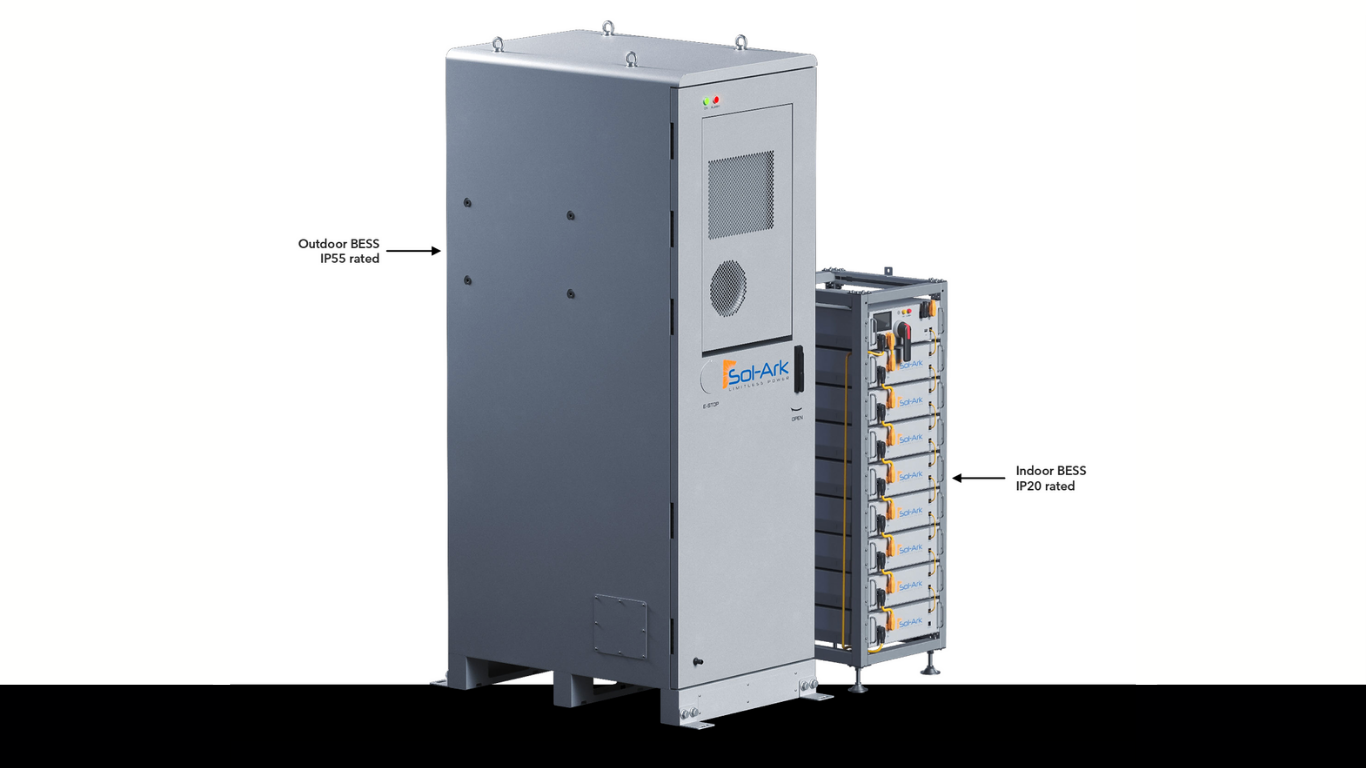

No. This specific model is rated IP20, which means it is designed for indoor use only in a climate-controlled environment (like an electrical room or garage). For outdoor needs, you would need the NEMA 3R version.

Q3: How many of these can I connect to one inverter?

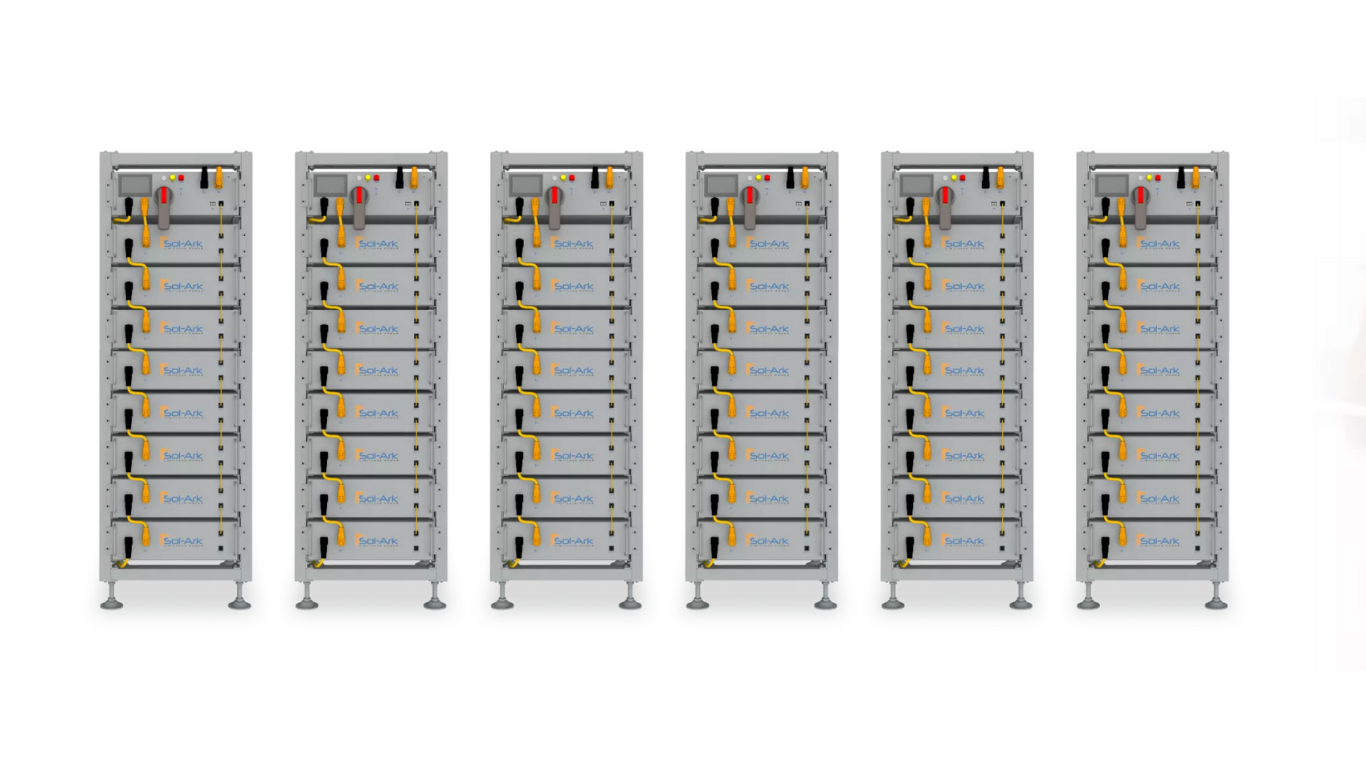

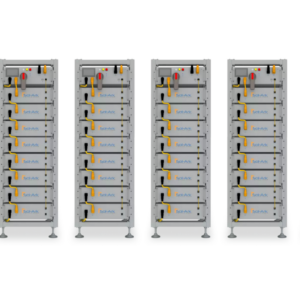

You can parallel multiple battery racks to a single Sol-Ark 60K inverter to reach mega-watt hour (MWh) scale capacities, depending on the specific project requirements.

Q4: Does it have fire safety features?

Yes. Sol-Ark L3 commercial batteries feature lithium iron phosphate (LFP) chemistry, which is thermally stable, and they typically include built-in aerosol fire suppression units within the modules for added safety.

Q5: What is the actual usable energy?

The total nameplate energy is 61.44 kWh. However, to maintain battery health and warranty (typically 90% Depth of Discharge), the usable energy is approximately 55.3 kWh.
