Sol-Ark High Voltage 60kWh Battery Bank – IP55 Outdoor – Use with Sol-Ark 60K

*Please note that the Sol-Ark 60K Inverter is sold separately*

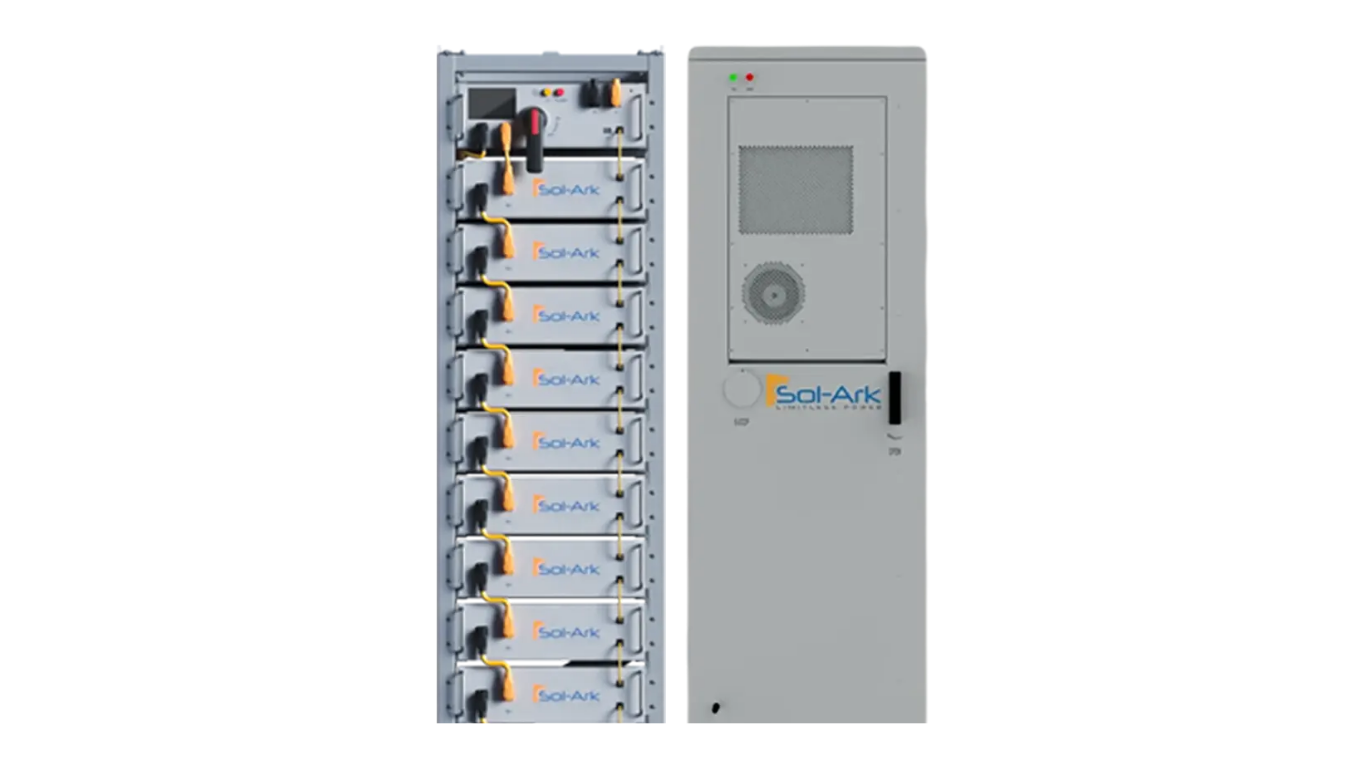

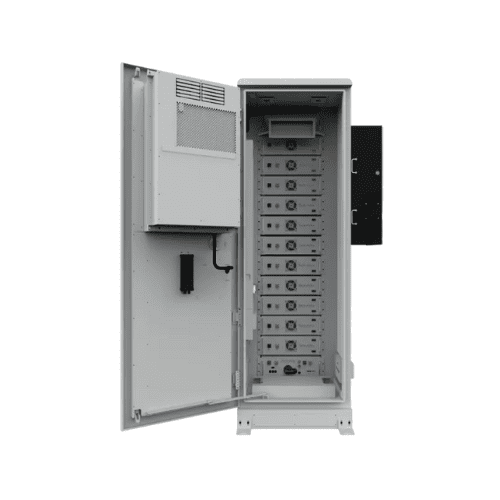

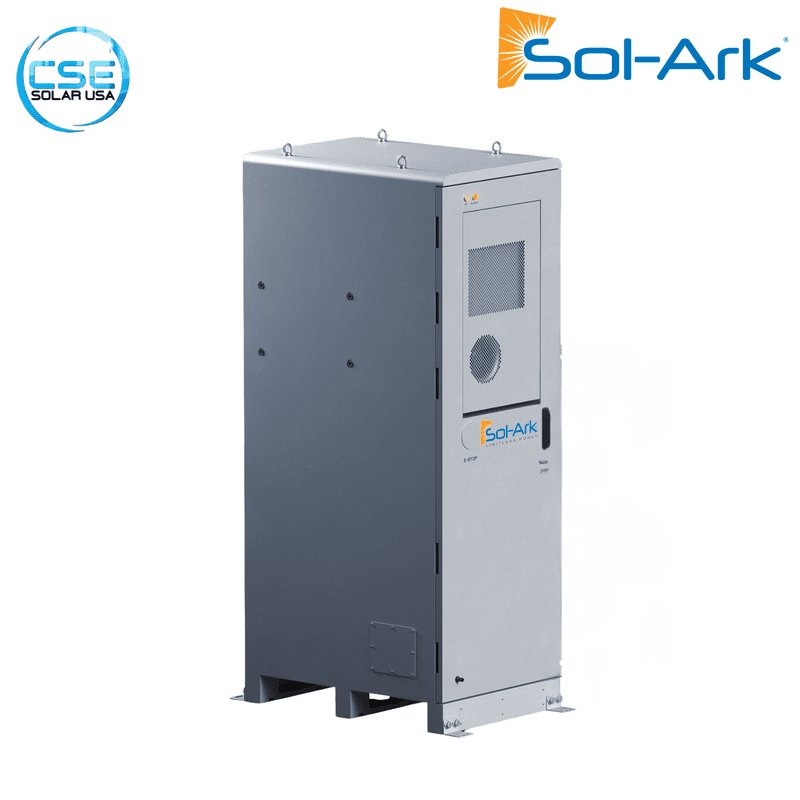

The Sol-Ark L3 HVR 60K-3P-480V Outdoor BESS is a commercial-grade energy storage system engineered specifically for the Sol-Ark 60K-3P-480V inverter. Housed in a rugged IP55 / NEMA 3R outdoor enclosure with integrated climate control, this battery bank provides ~61.4 kWh of capacity at a nominal 614V. This high-voltage configuration matches the Sol-Ark 60K’s native input, ensuring maximum efficiency for commercial installations.

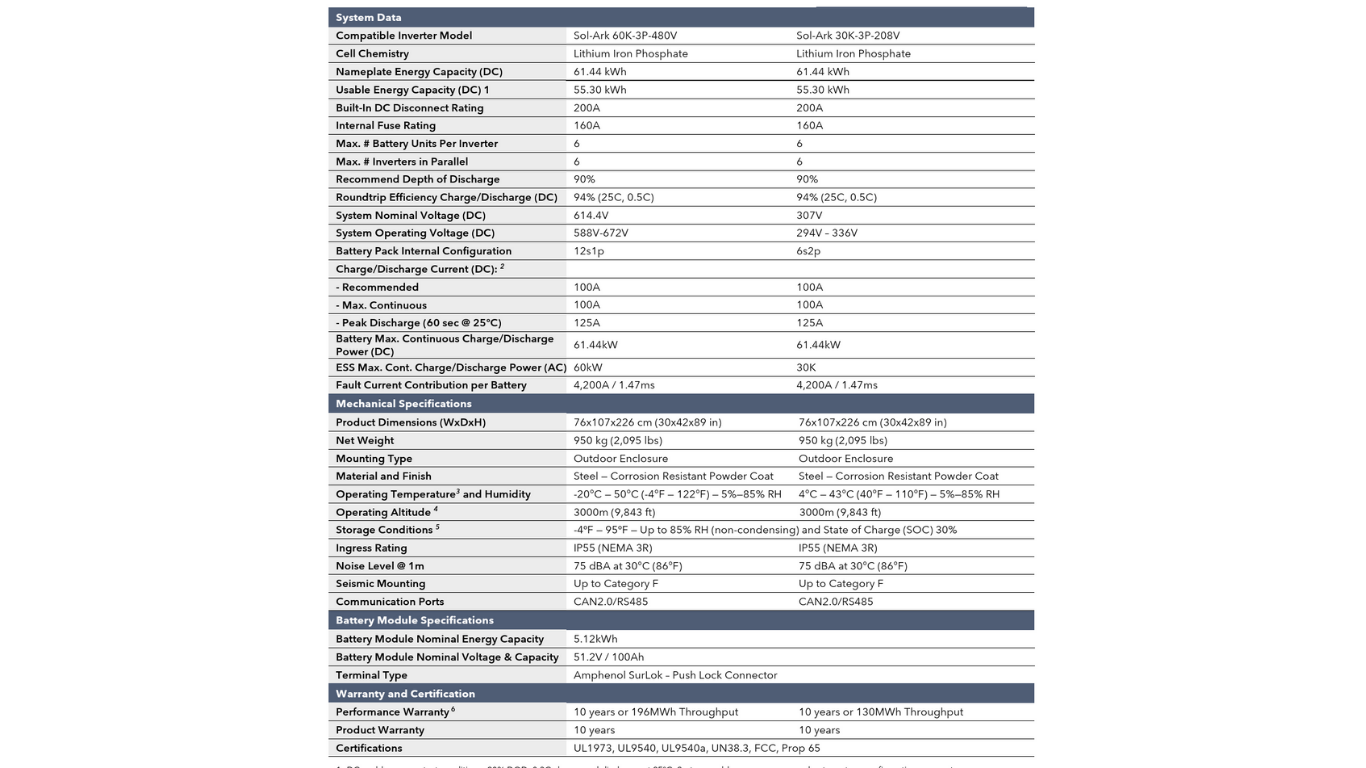

Product Specifications

• Configuration: 12 Modules (12s1p Internal Topology)

• Nominal Voltage: 614.4 V

• Voltage Range: 561V – 700V

• Max Continuous Current: 100 A

• Peak Discharge: 125 A (2 minutes)

• Chemistry: Lithium Iron Phosphate (LFP)

• Communication: CAN / RS485

Why Choose Sol-Ark L3 HVR 60K-3P-480V Outdoor Battery (60K Version)

This battery is the premier choice for commercial projects where indoor space is at a premium. Its IP55-rated cabinet allows for outdoor installation on a concrete pad, freeing up valuable square footage inside the facility. The integrated HVAC system manages extreme heat and cold automatically, protecting the lithium cells and warranty without requiring a separate climate-controlled structure. Its 614V architecture ensures ultra-low transmission losses, perfectly pairing with the Sol-Ark 60K inverter.

Benefits of Sol-Ark L3 HVR 60K-3P-480V Outdoor Battery

• Zero Indoor Footprint: Completely weatherproof and climate-controlled, it can be installed in parking lots, equipment yards, or behind buildings, saving expensive interior commercial space.

• Maximum Efficiency: Operating at ~614V means lower current for the same power, resulting in thinner wire requirements and less energy lost as heat compared to lower voltage systems.

• Commercial Safety Compliance: Features aerosol fire suppression at both the module and cabinet level, along with a lockable steel enclosure and accessible emergency stop, meeting strict commercial fire and safety codes.

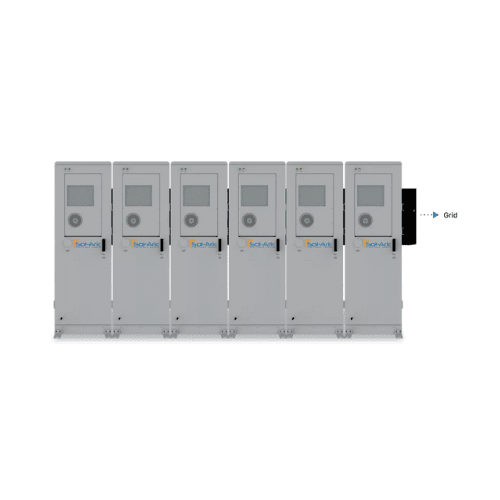

• Seamless Scalability: You can parallel up to 6 of these cabinets to a single inverter for over 360 kWh of storage, or stack multiple inverters and batteries for MWh-scale projects.

General Data

• Dimensions (H x W x D): 89″ x 30″ x 42″

• Weight: 2,095 lbs (950 kg)

• Enclosure Rating: IP55 / NEMA 3R (Outdoor)

• Operating Temperature: -22°F to 131°F (-30°C to 55°C) (w/ HVAC)

• Certifications: UL1973, UL9540, UL9540A, UN38.3
