Trina Solar TSM-435NEG9R.28 435W Vertex S+ N-Type TOPCon Black-on-Black Solar Panel
Original price was: $189.99.$159.99Current price is: $159.99.
16 people are viewing this product right now
At CSE Solar USA, we carry this model in stock and ready to ship nationwide, available for bulk, pallet, and container orders.
Availability : CA, stock
Please call us at 702-608-8385 to confirm stock and secure your order

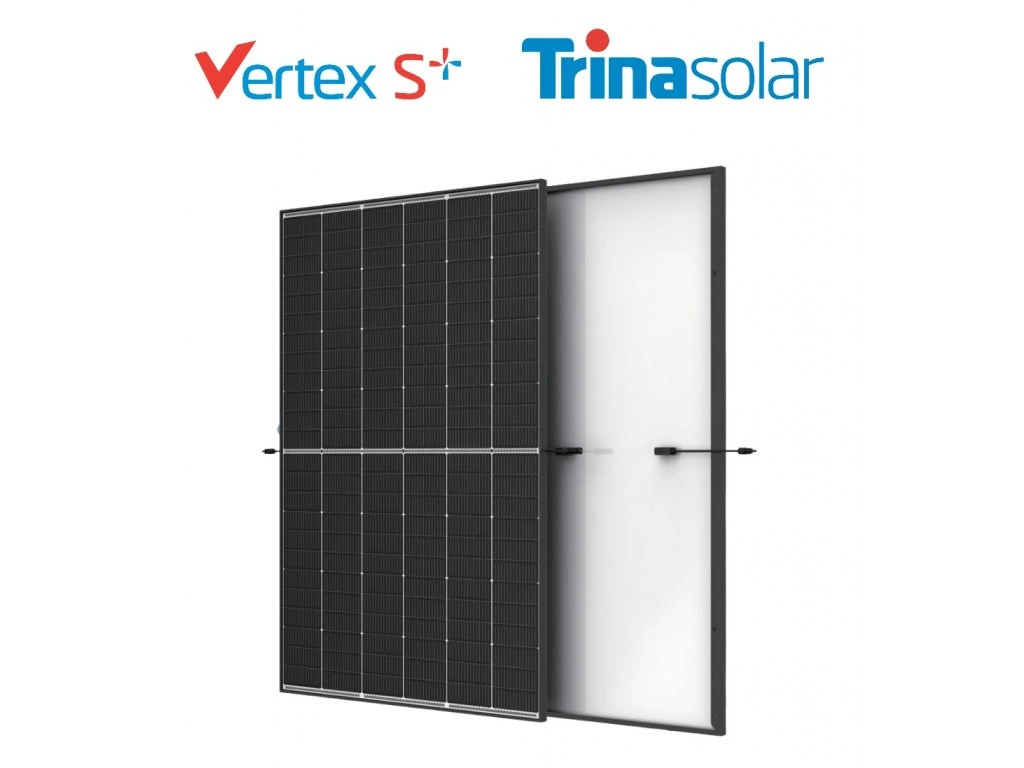

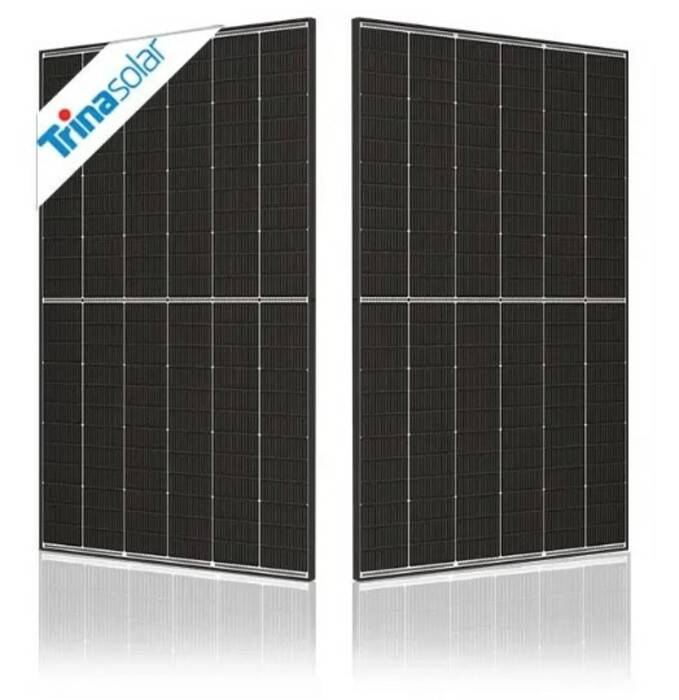

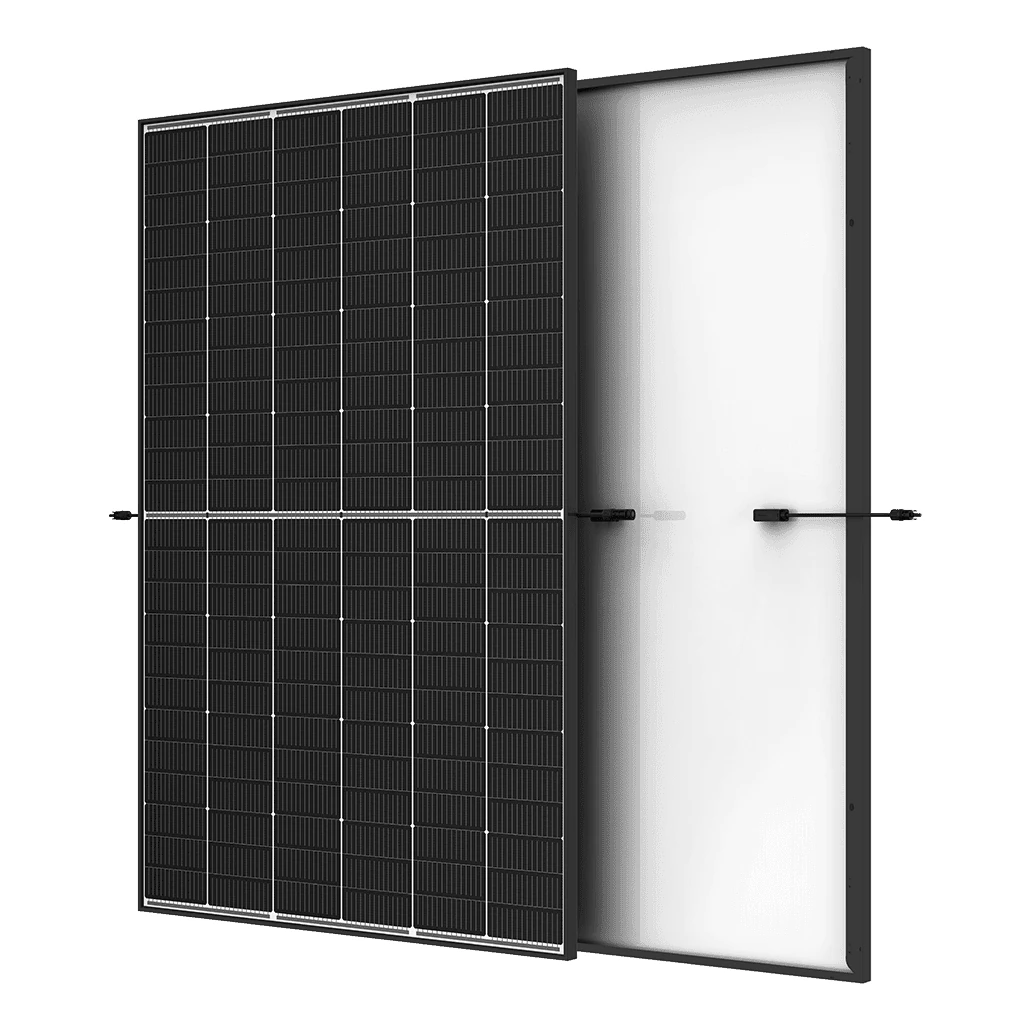

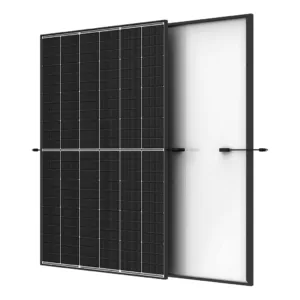

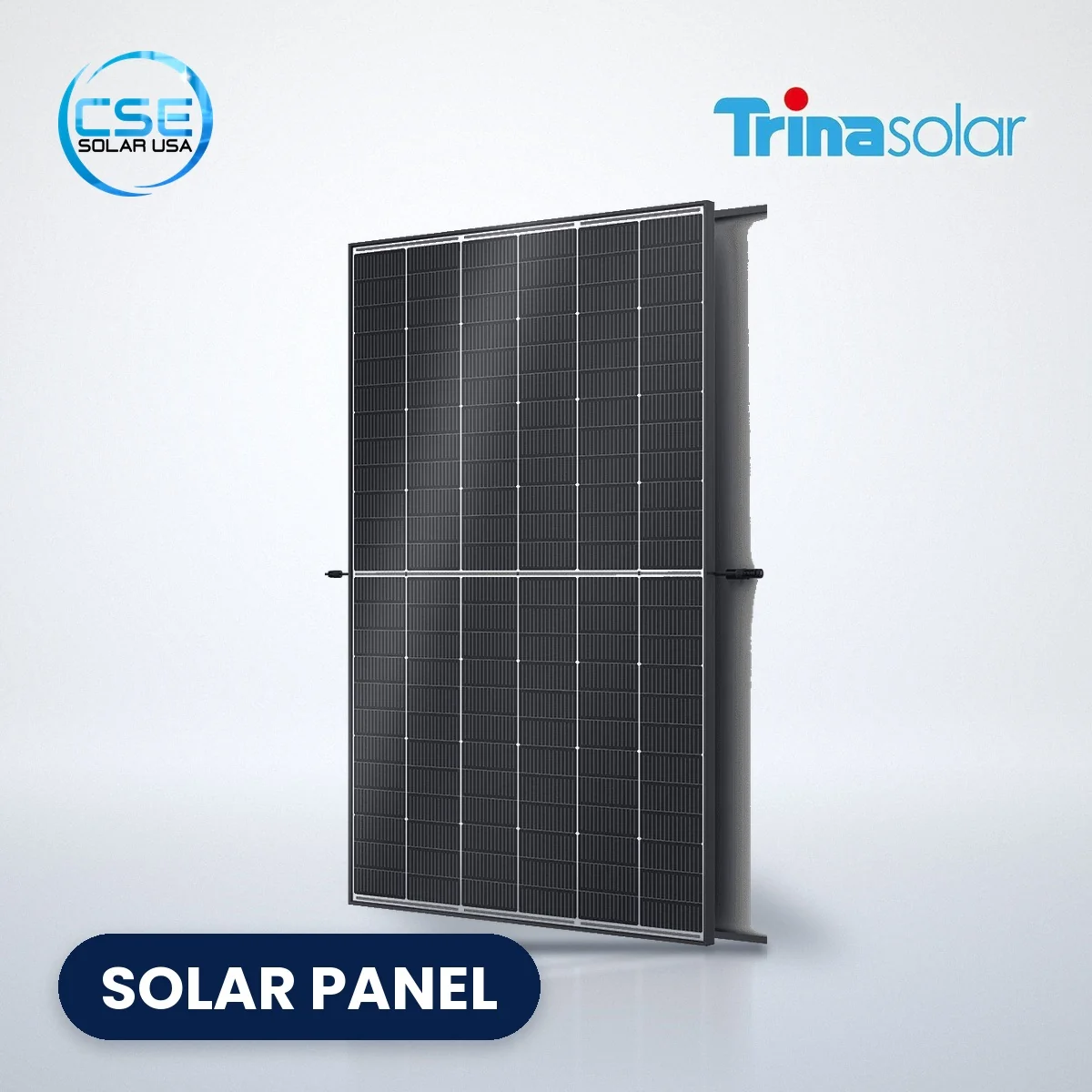

Trina Solar TSM-435NEG9R.28 435W Vertex S+ N-Type TOPCon Black-on-Black Solar Panel
The Trina Solar TSM-435NEG9R.28 Vertex S+ is a high-efficiency 435W N-Type TOPCon solar panel engineered for performance, aesthetics, and durability. Designed with Trina’s cutting-edge Vertex S+ technology, this dual-glass module combines excellent temperature tolerance, superior energy yield, and a modern all-black look ideal for residential and commercial solar systems.
Built with 210mm rectangular N-Type cells and multi-busbar (MBB) design, this panel ensures outstanding reliability and maximum power generation over time.
At CSE Solar USA, we stock the Trina Solar TSM-435NEG9R.28 and offer nationwide shipping across the USA. Panels are available by pallet, container, or kit, making them perfect for installers, wholesalers, and project developers.
Key Features
-
Power Output: 435W
-
N-Type TOPCon cell technology for superior energy efficiency
-
Dual-glass construction for enhanced durability and longevity
-
Sleek black-on-black aesthetic for premium installations
-
Excellent performance under low-light and high-temperature conditions
-
25-year product warranty and 30-year performance warranty
-
Resistance to PID, salt mist, and ammonia corrosion
-
Engineered for both residential and commercial applications
Electrical Specifications
| Maximum Power (Pmax) | 435 W |
| Module Efficiency | 22.0% |
| Open Circuit Voltage (Voc) | 40.7 V |
| Voltage at Max Power (Vmp) | 33.8 V |
| Current at Max Power (Imp) | 12.88 A |
| Short-Circuit Current (Isc) | 13.58 A |
| Maximum System Voltage | 1500 V DC |
| Power Tolerance | 0 ~ +5 W |
| Temperature Coefficient (Pmax) | -0.30% / °C |
Mechanical Specifications
| Dimensions | 67.8 x 44.6 x 1.18 inches (1722 x 1134 x 30 mm) |
| Weight | 46.3 lb (21 kg) |
| Frame | Black anodized aluminum alloy |
| Glass | Dual 1.6 mm tempered glass (front and back) |
| Junction Box | IP68 rated with 3 bypass diodes |
| Cable Length | 47.2 inches (1200 mm) |
| Connector | MC4-compatible |
| Cell Type | 210mm rectangular N-Type TOPCon, 144 half-cells (72 full-size equivalent) |
| Panels per Pallet | 36 panels per pallet |
Performance and Reliability
The Vertex S+ series represents Trina Solar’s commitment to innovation and sustainability. With dual-glass encapsulation, these modules offer better mechanical strength, reduced degradation, and long-term performance even in extreme environments.
The N-Type cells provide higher conversion efficiency, lower temperature coefficients, and minimal power loss over time—only 1% in the first year and 0.4% annually thereafter.
Applications
-
Residential rooftop systems
-
Commercial and industrial solar projects
-
Ground-mount and carport installations
-
Off-grid and hybrid energy systems
Shipping Details
-
Shipping Weight: 46.3 lb (21 kg) per panel
-
Shipping Dimensions: 67.8 x 44.6 x 1.18 inches per panel
-
Quantity per Pallet: 36 panels
-
Ships From: California or Texas warehouse
-
Available: By pallet, container,
| Weight | 46.3 lbs |
|---|---|
| Dimensions | 67.8 × 44.6 × 1.18 in |
| MPN | TSM-435NEG9R.28 |
