Waaree BiN-08-580 Elite Series 580W N-Type TOPCon Bifacial Solar Panel – Pallet Pricing (31 Panels | 17.98kW) – New Jersey

The Waaree BiN-08-580 580W solar panel pallet is the top bin of the 35 mm-frame Elite Series lots in CSE Solar USA’s New Jersey stock: 31 modules and 17.98 kW DC per pallet, the most power you can get on the 31-panel configuration. Choose it when pallet count is fixed by your site or freight plan and you want the highest wattage per module within that count.

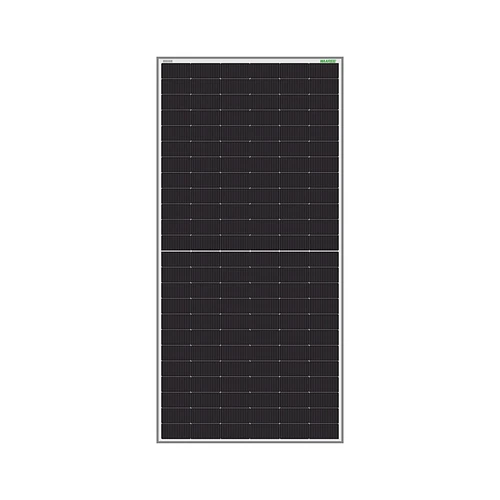

Datasheet values for the 580 W bin. 580 W at STC and 437.9 W at NOCT; 22.45% module efficiency; 52.50 V open-circuit, 13.93 A short-circuit, 44.01 V / 13.18 A at maximum power; −0.30 %/°C power coefficient; NOCT 43 ± 2 °C; 144 N-type TOPCon half-cells, framed dual glass, 2278 × 1134 × 35 mm, 32.5 kg, 1500 V / 30 A, 5400 / 2400 Pa mechanical load. Waaree lists 667 W at a 15% rear-side gain.

580 W on a 35 mm frame versus 585 W on a 30 mm frame. The BiN-08-585 pallet uses Waaree’s 30 mm frame and packs 36 modules (21.06 kW), so it delivers more kW per pallet; this 580 W lot uses the 35 mm frame with 31 modules. Frame depth can matter for clamp and rail compatibility, so match the frame to your racking. The lower-priced 35 mm bins are the BiN-08-570 and BiN-08-575; the BiN-08-590 is the highest bin overall. See the Waaree brand page.

Pallet, pickup and ordering. 31 new A-grade modules, 12-year product / 30-year power warranty, EXW a CSE-controlled New Jersey pickup location, freight quoted, full pallet only. Submit an order request and CSE confirms stock, pickup and freight before payment. The 35 mm-edition datasheet is linked below; manual and warranty statement available on request.

Specifications (Waaree Elite Series BiN-08 datasheet, 35 mm edition)

Documents & Downloads

Installation manual and warranty documentation available on request.

Pallet ordering

Sold by the full pallet only. Prices are per pallet, EXW a CSE-controlled pickup location; freight is quoted separately. Submit an order request and our team confirms availability, pickup point and freight before any payment is due.
