Waaree BiN-08-575 Elite Series 575W N-Type TOPCon Bifacial Solar Panel – Pallet Pricing (31 Panels | 17.82kW) – 35 mm Frame

The Waaree BiN-08-575 575W solar panel pallet is the middle bin of the three 35 mm-frame Elite Series BiN-08 listings at CSE Solar USA. It carries 31 modules (17.82 kW DC) and sits between the 570 W and 580 W bins in both output and pallet price.

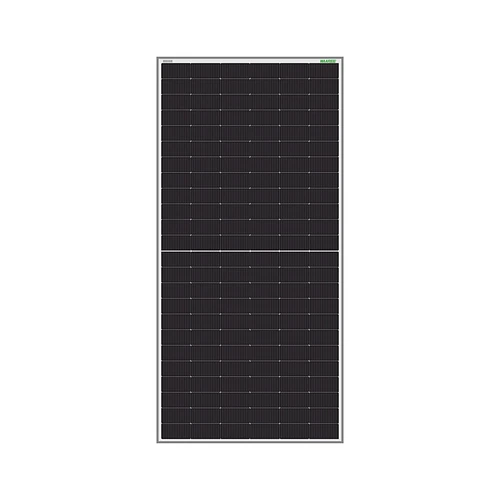

Datasheet values for the 575 W bin. 575 W at STC and 434.1 W at NOCT; 22.26% module efficiency; 52.30 V open-circuit, 13.87 A short-circuit, 43.86 V / 13.11 A at maximum power; power temperature coefficient −0.30 %/°C; 144 N-type M10/M10R TOPCon half-cells, 2 mm + 2 mm framed dual glass, 2278 × 1134 × 35 mm, 32.5 kg, 1500 V / 30 A. Waaree lists 661 W at a 15% rear-side gain for this bin.

Choosing between 570, 575 and 580. The three pallets are physically identical apart from binned output. The BiN-08-570 pallet is the lowest price, the BiN-08-580 pallet the highest output at 17.98 kW, and the 575 W bin here sits between them at 17.82 kW. If you need more kW per pallet, the 30 mm-frame BiN-08-585 and BiN-08-590 pack 36 panels. All Waaree listings are on the Waaree brand page.

Pallet, pickup and ordering. 31 new A-grade modules per pallet with Waaree’s 12-year product and 30-year linear power warranty (87.4% at year 30). Availability, pickup or freight confirmed with your quote, full pallet only; submit an order request and CSE confirms availability and freight before any payment. The 35 mm-edition datasheet is under Documents & Downloads; installation manual and warranty statement on request.

Specifications (Waaree Elite Series BiN-08 datasheet, 35 mm edition)

Documents & Downloads

Installation manual and warranty documentation available on request.

Pallet ordering

Sold by the full pallet only. Prices are per pallet. Availability, pickup or freight and lead time are confirmed with every quote. Submit an order request and our team confirms availability, pickup point and freight before any payment is due.
