Waaree BiN-08-570 Elite Series 570W N-Type TOPCon Bifacial Solar Panel – Pallet Pricing (31 Panels | 17.67kW) – New Jersey

The Waaree BiN-08-570 570W solar panel pallet is the entry point to CSE Solar USA’s Waaree Elite Series stock in New Jersey: 31 modules on a 35 mm-frame pallet, 17.67 kW DC, at the lowest pallet price of the five Waaree bins we list. It is a new A-grade module with Waaree’s full 12-year product and 30-year power output warranty, not a B-grade or cosmetic lot.

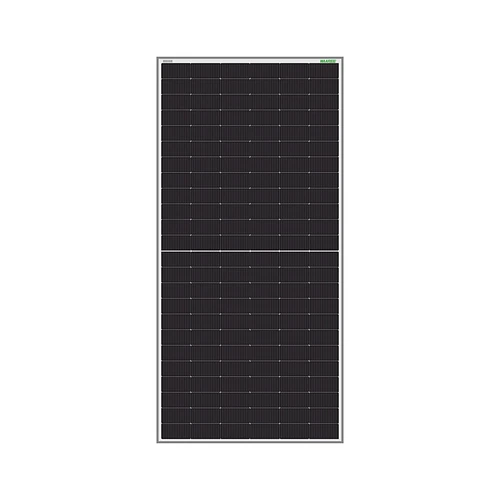

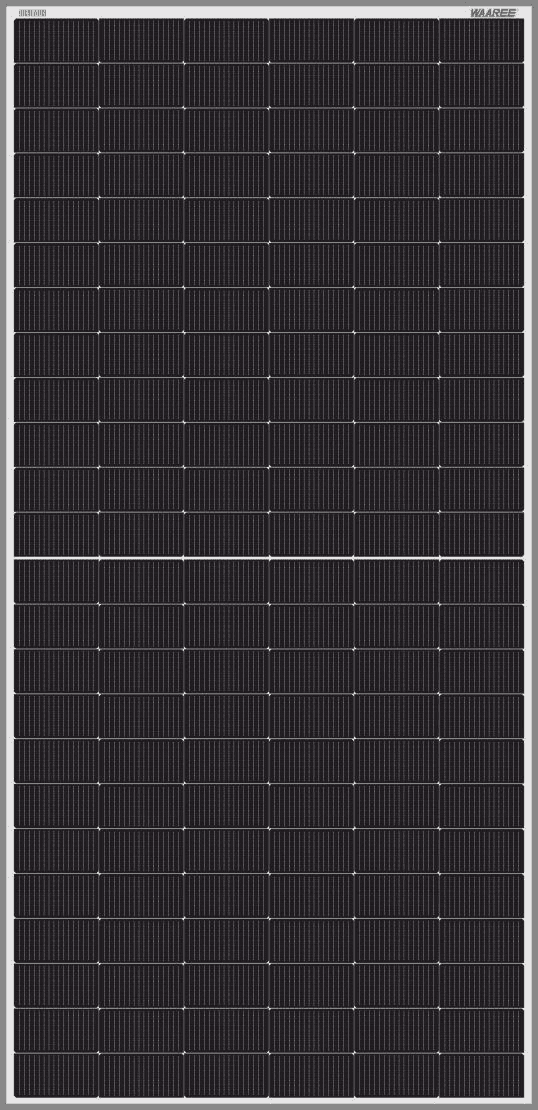

Datasheet values for the 570 W bin. 144 half-cut N-type M10/M10R TOPCon cells in a framed dual-glass bifacial construction (2 mm + 2 mm low-iron semi-tempered glass); 570 W at STC and 430.4 W at NOCT; 22.07% module efficiency; 52.10 V open-circuit, 13.81 A short-circuit, 43.71 V / 13.04 A at maximum power; 1500 V system voltage, 30 A fuse rating; 2278 × 1134 × 35 mm, 32.5 kg. Waaree’s rear-side table lists 656 W at a 15% bifacial gain for this bin.

How it compares with the 575 W and 580 W lots. All three 35 mm-frame bins share the same pallet count (31), frame, glass and warranty; they differ only in binned output and price. The 570 W pallet gives the lowest cost per pallet, while the BiN-08-575 and BiN-08-580 deliver 17.82 kW and 17.98 kW from the same footprint. For 36-panel pallets on the 30 mm frame see the BiN-08-585 and BiN-08-590, or visit the Waaree brand page.

Pallet, pickup and ordering. 31 modules per pallet, EXW a CSE-controlled pickup location in New Jersey, freight quoted for delivery elsewhere, full pallet only, no online payment: submit an order request and CSE confirms stock, pickup point and freight first. The official Waaree Elite Series datasheet (35 mm edition) is linked under Documents & Downloads; the installation manual and warranty statement are available on request.

Specifications (Waaree Elite Series BiN-08 datasheet, 35 mm edition)

Documents & Downloads

Installation manual and warranty documentation available on request.

Pallet ordering

Sold by the full pallet only. Prices are per pallet, EXW a CSE-controlled pickup location; freight is quoted separately. Submit an order request and our team confirms availability, pickup point and freight before any payment is due.
