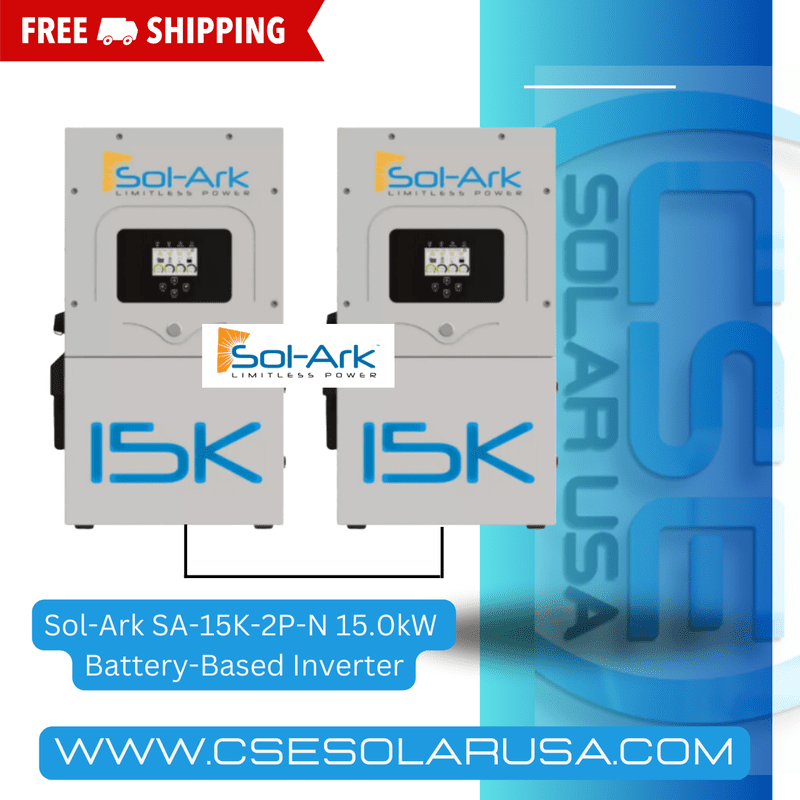

2 x Sol-Ark SA-15K-2P-N 15.0kW Battery-Based Inverter
Original price was: $16,999.50.$13,599.95Current price is: $13,599.95.
40 people are viewing this product right now
2 x Sol-Ark, 15K Battery or Battery-Less Inverter,
15kW/12kW from Battery, 120/240/208Vac, 50/60Hz, 48VDC, Transformerless Sinewave, Grid Tie/Off-Grid, AC and/or DC Coupled,
Dual AC inputs, 200A Load Breaker, 3 MPPT PV inputs, with AFCI/GFDI, BTS, 100A CT’s,
10 Yr. Warr,
UL1741-SB, NEMA 3R, SA-15K-2P-N
200A passthrough, so there’s no subpanel needed! This inverter is perfect for whole-home up. Features and benefits include parallel stacking, grid sell, meter zero, time of use, smart load, AC coupling, & peak shaving. The Sol-Ark 15k Outdoor Case is a pre-wired system that contains the inverter, charge controller, and more, all in one package; no fuses, breakers, or combiner boxes necessary! With minimal additional hardware required, your install stays simple and low-cost. Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.
Features
- French cleat for easy installation
- Built-in solar array disconnect
- Remote Wi-Fi/Ethernet and local monitoring
- Outdoor rated NEMA 3R
- Battery agnostic
- 19.5 kW solar input power
- 15 kW output power off-grid
- Full generator compatibility
- Manufacturer: Sol-Ark
- Model: 15K-2P-N
- Other Vendor Codes: Limitless 15K-LV
- Rated Power Output [W]: 15000
- Length [mm (in)]: 807.72 mm (31.8 in)
- Width [mm (in)]: 463.82 mm (18.3 in)
- Depth [mm (in)]: 276.86 mm (10.9 in)
- Weight [kg (lb)]: 61.3 kg (135 lbs)
- Wormanship Warranty Period [Years]: 10
Inverters
- Inverter Type: Hybrid inverter
- Maximum/Peak Efficiency [%]: 97.5
- CEC weighted efficiency @ 240V [%]: 96.5
- Transformer / Transformerless: Transformerless DC
- DC Power Rating [W]: 19,500
- Max. Input Power [W]: 19500
- Max. Input Voltage [V]: 500
- Min. DC voltage / start voltage [V]: 125
- Min. DC voltage / start voltage [V]: 125
- Number of DC String Inputs (Inlets): 6
- Number of MPP Trackers: 3
- Max. Input Power per MPPT [W]: 6500
- Max. Input Voltage per MPPT [V]: 500
- Max. Input Current per MPPT [A]: 26
- Voltage Lower Limit for MPP Range [V]: 125
- Voltage Upper Limit for MPP Range [V]: 425
- DC Disconnection Type: Integrated
- Reverse-Polarity Protection: true
- Ground-Fault Isolation Detection: Integrated
- AC Power Rating [W]: 15000
- Nominal AC Power [W]: 15000
- Max. AC Power [W]: 15000
- AC voltage range [V]: 185-265
- AC grid frequency [Hz]: 60
- Max. output current [A]: 62.5
- Nominal AC Voltage [V]: 120/240/208
- Maximum AC Voltage Range [V]: 265
- Nominal AC Frequency [Hz], range [Hz-Hz]: 60
- Max. AC Line Current [A]: 200
- AC Connection Type: L1/L2/Neutral/Ground
- AC Current Distortion [THD%]: =<3
- AC Input Wire Gauge Range [AWG]: 1/0 AWG – 4/0 AWG
- Sleep (Night) Consumption [W]: 90
- NEMA Enclosure Rating: IP65 / NEMA 3R
- Cooling Method: Integrated Fan
- Ambient Temperature Range [°C(°F)]: -40°C to +60°C (-40°F to +140°F)
- Display: LCD Touch Screen
- Communication: Wi-Fi, LAN, CanBus, RS485
- Basic Warranty [Years]: 10
- Compliances: UL1741-2010/2018, IEE-E1547a-2003/2014, FCC 15 Class B, UL1741SA, CA Rule21, HECO Rule 14H
- AC grid range [Hz]: 55-65
- Max. recommended PV power (@ module STC): 19,500
Documents
Please verify the latest information, specifications, and document versions on the manufacturer’s website.
| Weight | 136 lbs |
|---|---|
| Dimensions | 9.37 × 17.38 × 28 in |
| MPN | SA-15K-2P-N |
- Spec Sheet (Created 10/25/2022)
- Installation Manual (Created 12/19/2022)
