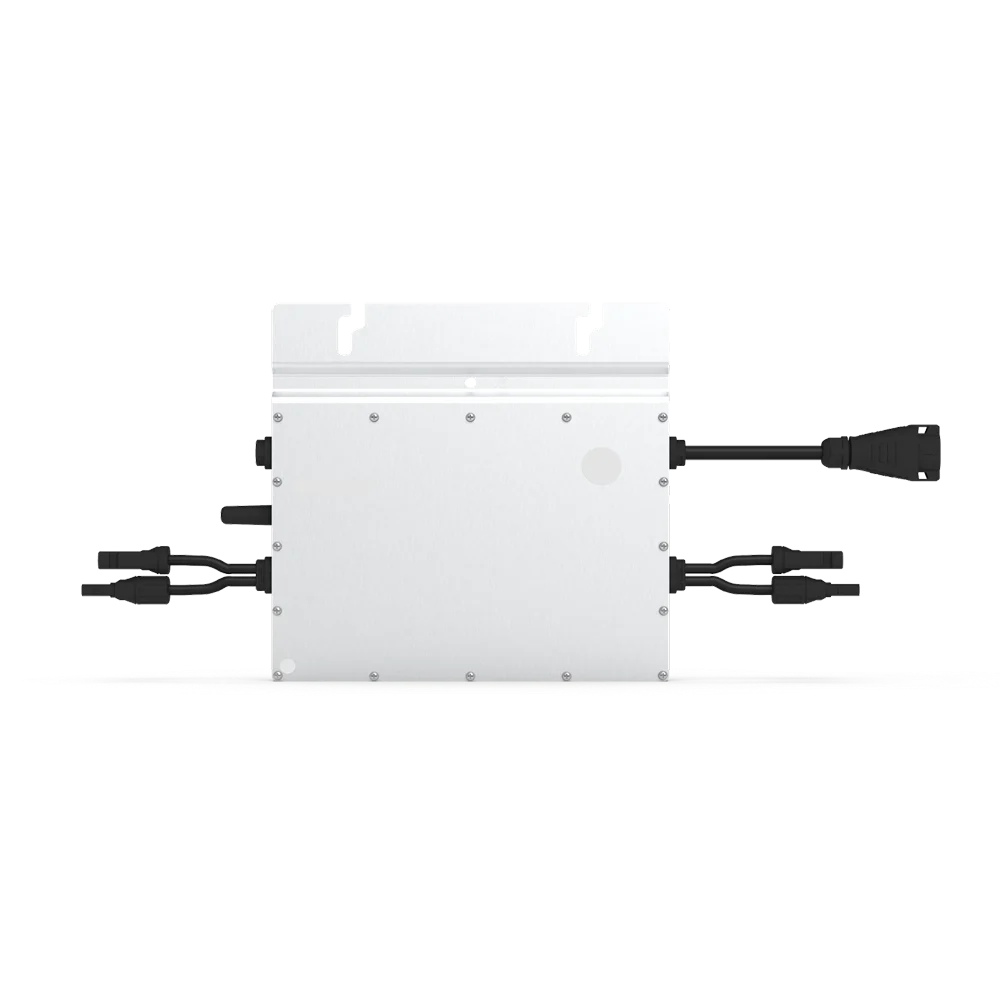

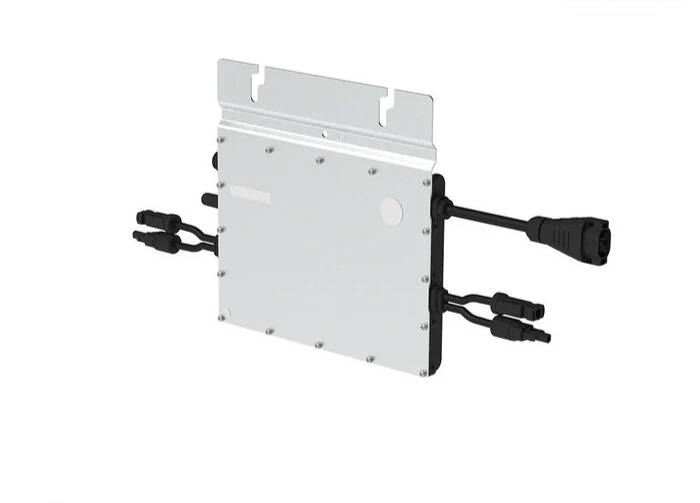

Hoymiles HM-800NT | 2-in-1 Microinverter for 320–540W PV Panels
$285.90
38 people are viewing this product right now
Unlock reliable solar power with the Hoymiles HM-800NT 2-in-1 Microinverter. Supports 2 panels, split-phase output, high efficiency, and IP67 weatherproof design.
The Hoymiles HM-800NT 2-in-1 Microinverter is a high-performance single-phase, split-phase solar solution designed to connect up to two PV panels simultaneously, maximizing energy harvest from your installation. With a robust maximum DC input voltage of 60V, it ensures safe and efficient power conversion while complying with NEC-2017 & NEC-2020 Article 690.12 and CEC-2021 Sec 64-218 for PV Rapid Shutdown systems.
Equipped with advanced reactive power control, the HM-800NT meets industry standards including IEEE 1547, UL 1741, and CA Rule 21, providing reliable grid-tie operation, enhanced system stability, and long-term durability for residential and commercial solar projects.
Key Features of Hoymiles Split-Phase Solar Grid Tie Microinverter
Plug-and-Play Installation – Quick setup with easy panel connections
Reactive Power Control – Ensures optimal energy output, CA Rule 21 compliant
Rapid Shutdown Safety – Meets NEC-2017 & NEC-2020 Article 690.12 standards
Enhanced Communication – External antenna for reliable DTU connectivity
Durable & Weatherproof – NEMA 6 (IP67) rated enclosure with 6000V surge protection
| Manufacturer | Hoymiles |
| Type | Single-Phase Grid-Tie |
| Maximum Input Voltage | 60V |
| MPPT Voltage Range | 16~60V |
| Maximum Input Current | 2 × 11.5A |
| Number of MPPTs | 2 |
| Peak Output Power (VA) | 800 |
| Max. Continuous Output Power (VA) | 766 |
| CEC Peak Efficiency | 96.7% |
| CEC Weighted Efficiency | 96.5% |
| Nominal MPPT Efficiency | 99.8% |
| Enclosure Rating | IP67 (Outdoor-NEMA6) |
| Warranty | 25 years |
| Compliance | UL 1741, IEEE 1547, UL 1741 SA (240 Vac), CA Rule 21 (240 Vac), CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C |
| Rapid Shutdown | Conforms with NEC-2017 & NEC-2020 Article 690.12 and CEC-2021 Sec 64-218 |
| Weight | 5.37 lbs |
|---|---|
| Dimensions | 6.69 × 9.84 × 1.10 in |
| MPN | HM-800NT |
