Liniotech 15kVA Split-Phase Hybrid Inverter | 10kW AC, 15kW PV, 200A Pass-Through | LNT10K0228UL200A
$3,465.00
8 people are viewing this product right now
The Liniotech LNT10K0228UL200A is a 15kVA split-phase hybrid inverter with 10 kW AC output, up to 15 kW of PV input on three MPPTs, and 200 A grid pass-through for whole-home backup with 48 V batteries. It is CEC-listed at 10 kW. Freight is quoted with your order.

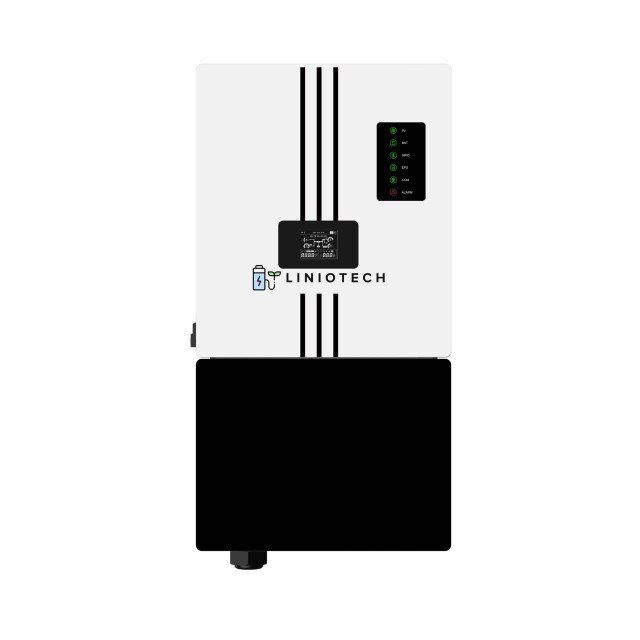

Liniotech LNT10K0228UL200A 15kVA Split-Phase Hybrid Inverter
The Liniotech 15kVA hybrid inverter (model LNT10K0228UL, order code LNT10K0228UL200A) combines a 10 kW split-phase inverter, three solar MPPT charge controllers and a 200 A grid pass-through in one NEMA 3R enclosure. It runs grid-tied, off-grid or hybrid with 48 V-class batteries, and it is listed by the California Energy Commission at 10 kW. See all Liniotech products.
Power and solar input
- 10,000 W nominal AC output; 11,400 VA maximum apparent power
- Off-grid surge: 20,000 VA for 1 s / 14,000 VA for 10 s
- Up to 15,000 W PV on 3 MPPTs: 600 V max, 90 V start-up, 70–540 V MPPT range, 30 / 22 / 22 A max input
- CEC weighted efficiency 96.5%
Battery and backup
- Battery voltage 40–64 V (lithium-ion or lead-acid); 210 A / 10,000 W max charge and discharge
- 200 A grid pass-through; transfer time typically 10 ms or less
- Up to 9 units in parallel; totals are confirmed for each system design
Communication and environment
- RS485/CAN for the battery BMS and RS485 for the meter; WiFi/LAN optional
- NEMA 3R enclosure; operating temperature −25 to 60 °C (derating above 45 °C)
Listings, certification and warranty
CEC-listed as LNT10K0228UL (10 kW). Certification documents for this exact model are available on request. Warranty: 10 years, per Liniotech’s current price list.
Ordering and shipping
Shipping, lead time and delivery are confirmed in your quote before payment. Ask CSE Solar USA to confirm the battery and system design for your project.
Specifications
| Model / order code | LNT10K0228UL / LNT10K0228UL200A |
|---|---|
| Type | Split-phase hybrid inverter |
| AC output | 10,000 W nominal; 11,400 VA max |
| Off-grid surge | 20,000 VA (1 s) / 14,000 VA (10 s) |
| PV input | 15,000 W max; 3 MPPTs; 600 V max; 70–540 V MPPT; 30/22/22 A |
| Battery | 40–64 V, Li-ion / lead-acid; 210 A max charge/discharge |
| Grid pass-through | 200 A; transfer ≤10 ms typical |
| Parallel | Up to 9 units |
| Communication | RS485/CAN (BMS), RS485 (meter); WiFi/LAN optional |
| Enclosure | NEMA 3R |
| Operating temp. | −25 to 60 °C (derating above 45 °C) |
| CEC | Listed as LNT10K0228UL, 10 kW; CEC efficiency 96.5% |
| Dimensions | 31.5 × 16.5 × 9.4 in (800 × 420 × 240 mm) |
| Warranty | 10 years (Liniotech price list) |
| Certification | Documents available on request |
Documents
| Weight | 88 lbs |
|---|---|
| Dimensions | 31.5 × 16.5 × 9.4 in |
| MPN | LNT10K0228UL200A |
