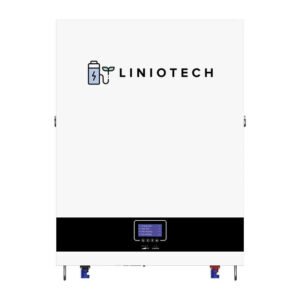

14.34 kWh Wall-Mount Battery
LNT051280A-B-GBP2
- ChemistryLiFePO₄, 51.2 V · 280 Ah
- Energy (nominal)14.34 kWh
- EnclosureIP20/IP21, indoor
- ParallelUp to 16
- CertificationDocuments on request
CEC listed
View product
Liniotech at CSE Solar USA
Liniotech Batteries & Hybrid Inverters
LiFePO₄ home and commercial battery storage and hybrid inverters from Liniotech, listed by exact manufacturer model number. CSE Solar USA helps size your system, quotes project and installer quantities, and ships nationwide by freight.
Certifications, ratings and compatibility differ by model, so we list them for each exact model number.
Shop by exact model
Liniotech models at CSE Solar USA
Each card shows the manufacturer model number (MPN) and the facts documented for that model. Open the product page for its full specifications and documents.
Floor-Standing
14.34 kWh · IP65
14.34 kWh · IP65

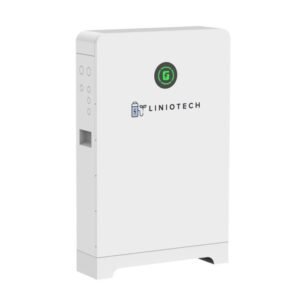

14.34 kWh Floor-Standing Battery, IP65
LNT051280A-B-GBP2F
- ChemistryLiFePO₄, 51.2 V · 280 Ah
- Energy (nominal)14.34 kWh
- EnclosureIP65, outdoor rated
- ParallelUp to 16
- CertificationDocuments on request
CEC listed
Request a quote

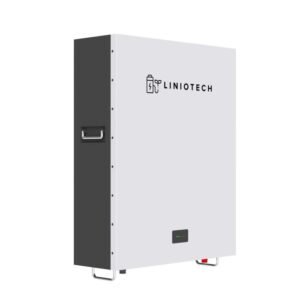

10.24 kWh Wall-Mount Battery
LNT051200A-B-GBP2
- ChemistryLiFePO₄, 51.2 V · 200 Ah
- Energy (nominal)10.24 kWh
- ConfigurationConfirmed in your quote
CEC listed
Request a quote Hybrid Inverter
10 kW
10 kW

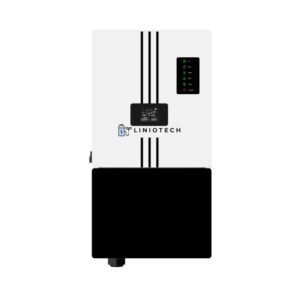

Hybrid Inverter
LNT10K0228UL200A
- CEC rated output10 kW
- EnclosureNEMA 3R
- Warranty10 years
CEC listed
View product "CEC listed" means the model appears on the California Energy Commission equipment list. Energy figures are nominal. Usable energy depends on depth of discharge and system design. Browse all batteries and battery-based inverters.
Coming soon — request a quote
Liniotech bundles
Upcoming Liniotech Bundles
We're preparing Liniotech battery and inverter bundles. We publish each bundle only after we've verified its exact models, the manufacturer's compatibility documents and its price. No bundles are available to order yet. In the meantime, tell us about your project and we'll quote the equipment you need.
Exact models
Every bundle will list the manufacturer model number of each component.
Documented compatibility
Pairings will be backed by manufacturer documents, and we won't infer compatibility.
Quoted before you pay
Price, freight and lead time are confirmed in writing in your quote.
Liniotech + Sol-Ark
Liniotech batteries with Sol-Ark inverters
Liniotech is listed as a Sol-Ark Low Voltage (48V) Certified Battery Partner.
Planning a Sol-Ark system with Liniotech batteries? Ask us for a quote. We confirm the exact inverter and battery models, and the documents behind the pairing, with you before you order. See our Sol-Ark inverters.
In the field
Liniotech installations
Battery sizing tool
How many Liniotech batteries do you need?
This is a planning estimate only. Your installer or CSE confirms the final design, including inverter output, battery discharge limits and local code.
Engineering assumptions (editable)
These are planning assumptions, not manufacturer ratings. Liniotech documents for these models state different recommended depths of discharge (80% and 90%).
Default is the manufacturer's recommended current (100 A). The documented maximum is 150 A.
Estimated batteries needed
—
Required usable energy—
Nominal storage required—
Nominal storage installed—
Battery discharge capacity—
Formula: required usable energy ÷ (DoD × efficiency) = nominal storage, rounded up to whole batteries of the selected MPN. Energy alone doesn't guarantee power: inverter output and battery discharge are checked separately, and motor starting surge needs its own check. Ask us to check your design.
Project quotes & shipping
Project quotes and nationwide shipping
Project & installer quotes
Multi-battery, installer and commercial quantities are quoted per project.
Nationwide shipping
We ship across the USA by freight, including Alaska and Hawaii (extra charges apply).
Freight confirmed first
Freight, lead time and delivery details are confirmed in your quote before payment. Tell us if you need liftgate or residential delivery.
Matched to the exact model
We quote by manufacturer MPN, so the documents for your permit match the equipment that ships.
Technical resources
Certifications and documents
Manufacturer datasheets are available on request. LNT10K0228UL200A hybrid inverter datasheet (PDF).
Certification documents available on request
Certifications differ by exact model number. Ask us for the certification documents for the model you're considering, and we'll send the documents that apply to it.
FAQs
Liniotech FAQs
Are Liniotech bundles available to order?
Not yet. We're preparing Liniotech battery and inverter bundles and will publish each one only after its exact models, compatibility documents and price are verified. You can request a quote for your project now.
Is every Liniotech battery UL 9540 listed?
No. UL 9540 applies to a complete energy storage system, not to a battery on its own, and certifications differ by exact model and configuration. Certification documents are available on request for the exact model you're considering.
Can I install a 14.34 kWh Liniotech battery outdoors?
The wall-mount LNT051280A-B-GBP2 is documented as IP20/IP21 and is meant for indoor installation. The floor-standing LNT051280A-B-GBP2F has an IP65 enclosure and is outdoor rated.
How many batteries can be connected in parallel?
For the 14.34 kWh models, Liniotech documents up to 16 batteries in parallel (about 229 kWh nominal). Your inverter may allow fewer, so check its battery limits.
What warranty applies?
Per Liniotech's current price list: 12 years on the 14.34 kWh batteries (LNT051280A-B-GBP2 and LNT051280A-B-GBP2F) and 10 years on the LNT10K0228UL200A hybrid inverter. Warranty terms are confirmed in your quote.
Do you ship Liniotech equipment nationwide?
Yes. We ship across the USA by freight, including Alaska and Hawaii (extra charges apply). Freight, lead time and delivery details are confirmed in your quote before payment.
Can I get project or installer pricing?
Yes. Multi-battery, installer and commercial quantities are quoted per project. Send us your project details through our contact page.
Does battery capacity alone tell me if my loads will run?
No. Energy (kWh) sets how long you can run. Power (kW) depends on the inverter's continuous output and each battery's discharge current. The sizing tool above checks both.
