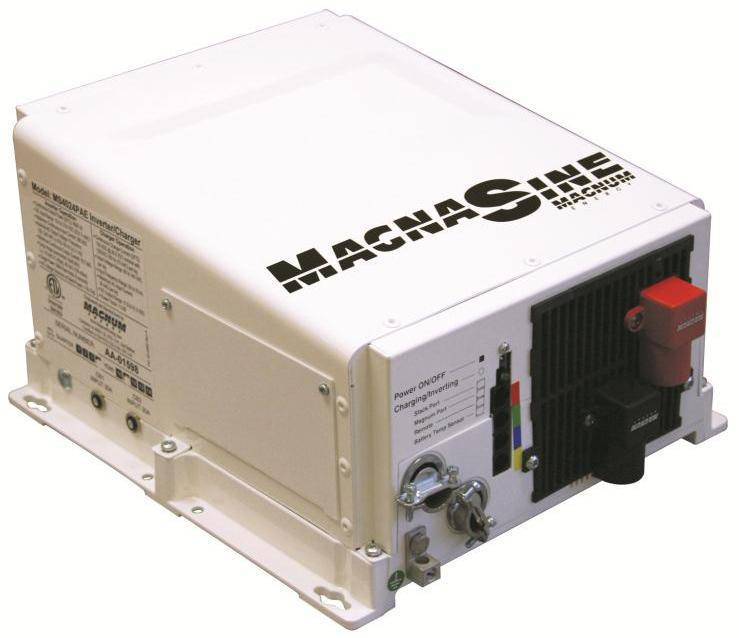

Magnum MS-PAE MS4024PAE 4.0kW Battery-Based Inverter

Magnum MS-PAE MS4024PAE 4.0kW Battery-Based Inverter

Magnum Energy’s MS4024PAE (MS-PAE Series) 120/240V Inverter/Charger is a pure sine wave inverter tailored to the most demanding renewable energy applications. The MS-PAE Series is capable, simple to use, and, most importantly, cost-effective.

The MS-PAE Series’ unique design allows it to provide 120 and 240 volts output in one unit, removing the need to stack two units together to achieve 240 volts.

Parallel stacking: Up to four inverter/chargers can be connected in parallel for a total performance of 17.6kw at 120/240V. For parallel stacking the MS-PAE Series, the MP panels and router are needed.

Magnum Energy’s Power Factor Corrected (PFC) charger is integrated into all of their inverter chargers. It uses less energy from a generator than a normal battery, drawing 25-30% less AC current.

Safe and dependable: For renewable energy installations, the MS-PAE Series is ETL Listed to the stringent specifications of UL 1741, 1st edition, and CSA C22.2 #107.1-01.

Features

• Compatibility – Parallel stacking: Up to four inverter/chargers can be connected in parallel for a total performance of 17.6kw at 120/240V. For parallel stacking the MS-PAE Series, the MP panels and router are needed.
• Safety – For renewable energy installations, the MS-PAE Series is ETL Listed to the stringent specifications of UL 1741, 1st edition, and CSA C22.2 #107.1-01.
• User Friendly – Magnum Energy’s Power Factor Corrected (PFC) charger is integrated into all of their inverter chargers. It uses less energy from a generator than a normal battery, drawing 25-30% less AC current.
