RUiXU 15 kWh Self-Heating Battery Cabinet Kit | RX-15kWH-HC
Original price was: $4,196.00.$3,896.00Current price is: $3,896.00. Call for AvailabilityCheck Availability
37 people are viewing this product right now

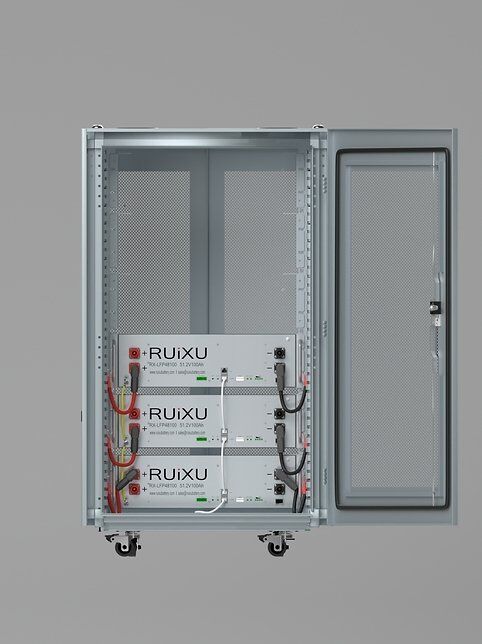

RUiXU RX-15kWH-HC: three self-heating RX-LFP48100-H batteries (15.36 kWh) in a pre-assembled RUiXU 6-slot cabinet with busbar and all battery cables.
The RUiXU RX-15kWH-HC is RUiXU’s 15 kWh self-heating cabinet kit: three RX-LFP48100-H batteries (3 × 5.12 kWh) installed in a pre-assembled 6-slot cabinet. For the standard (non-heating) version and larger sizes, see the RUiXU 15–30 kWh cabinet kits.
What is included

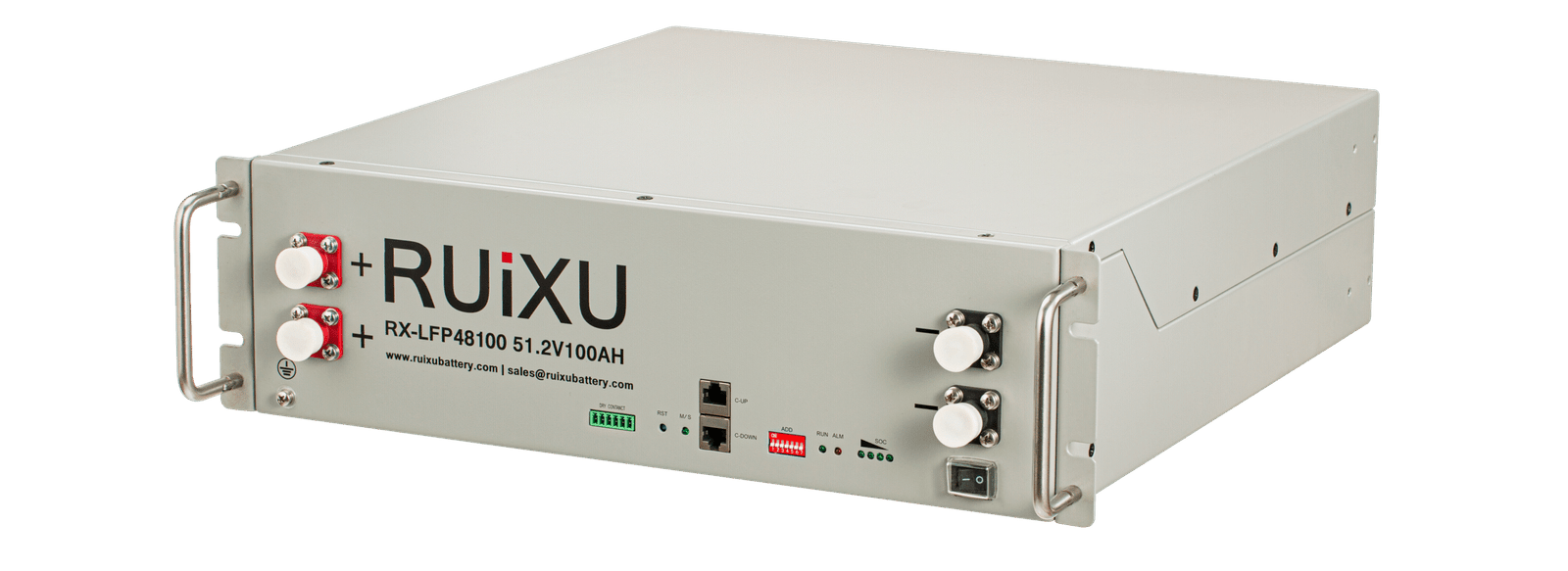

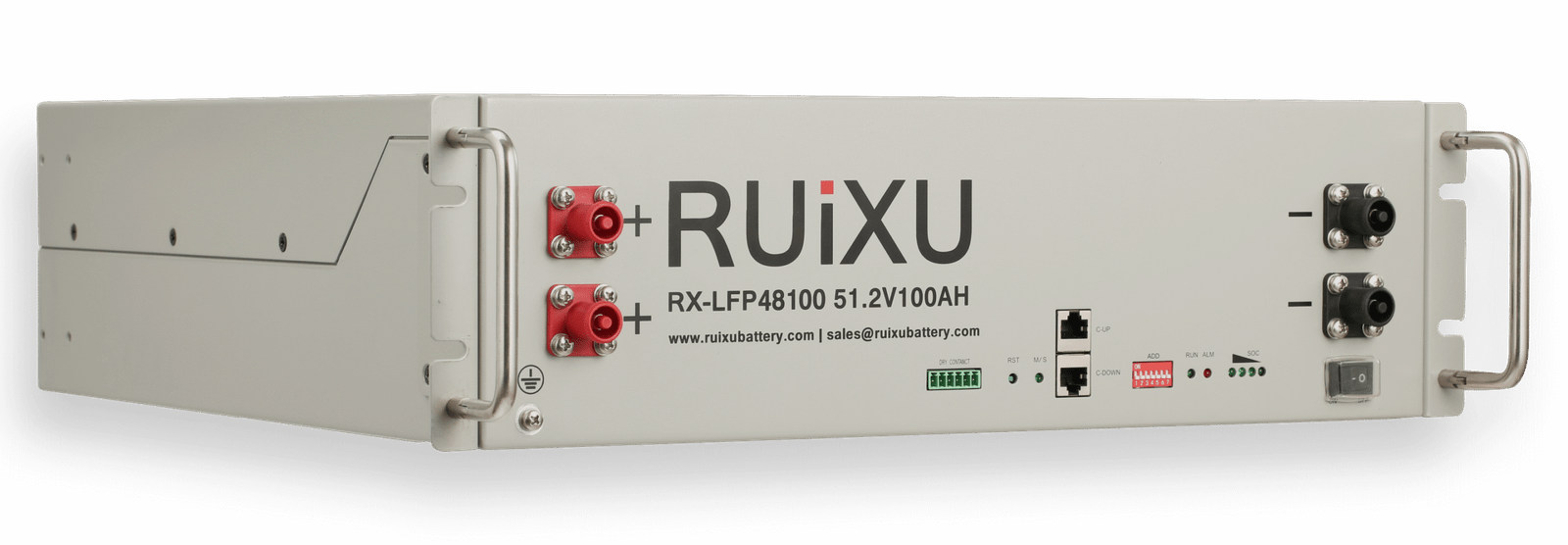

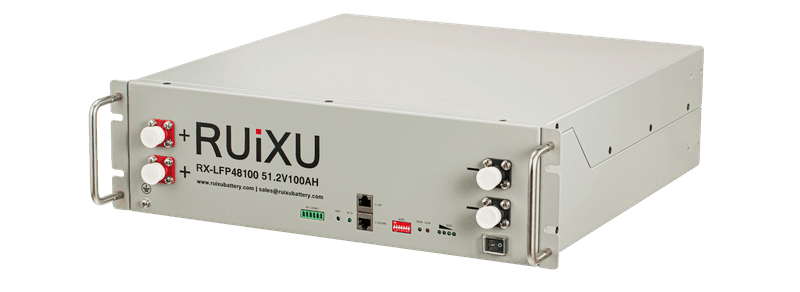

- 3 × RUiXU RX-LFP48100-H battery
- Pre-assembled RUiXU 6-slot battery cabinet (RX6075100) with busbar
- 3 × RJ45/CAT5e patch cable, 3 × ground cable, 3 × set of 30 cm 4AWG parallel cables
| Kit model | RX-15kWH-HC |
|---|---|
| Batteries | 3 × RX-LFP48100-H, 51.2 V 100 Ah each (15.36 kWh nominal) |
| Cycle life | ≥6,000 cycles at 90% DoD |
| Heater | Per battery: on at ≤5 °C, off at ≥12 °C |
| Cabinet | RX6075100 6-slot · approx. 23.6 × 29.5 in footprint · 300 A busbar |
Certifications
- Batteries: UL 1973 (Intertek control no. 5025601).
- UL 9540A unit-level test report (SGS CQES240700066401) covering RUiXU RX-…kWh-HC cabinet kits.
RUiXU documentation
- RX-LFP48100 / RX-LFP48100-H datasheet (RUiXU)
- RX-LFP48100 / RX-LFP48100-H Intertek UL 1973 certificate (control no. 5025601)
- SGS UL 9540A unit-level test report excerpt, RUiXU cabinet kits

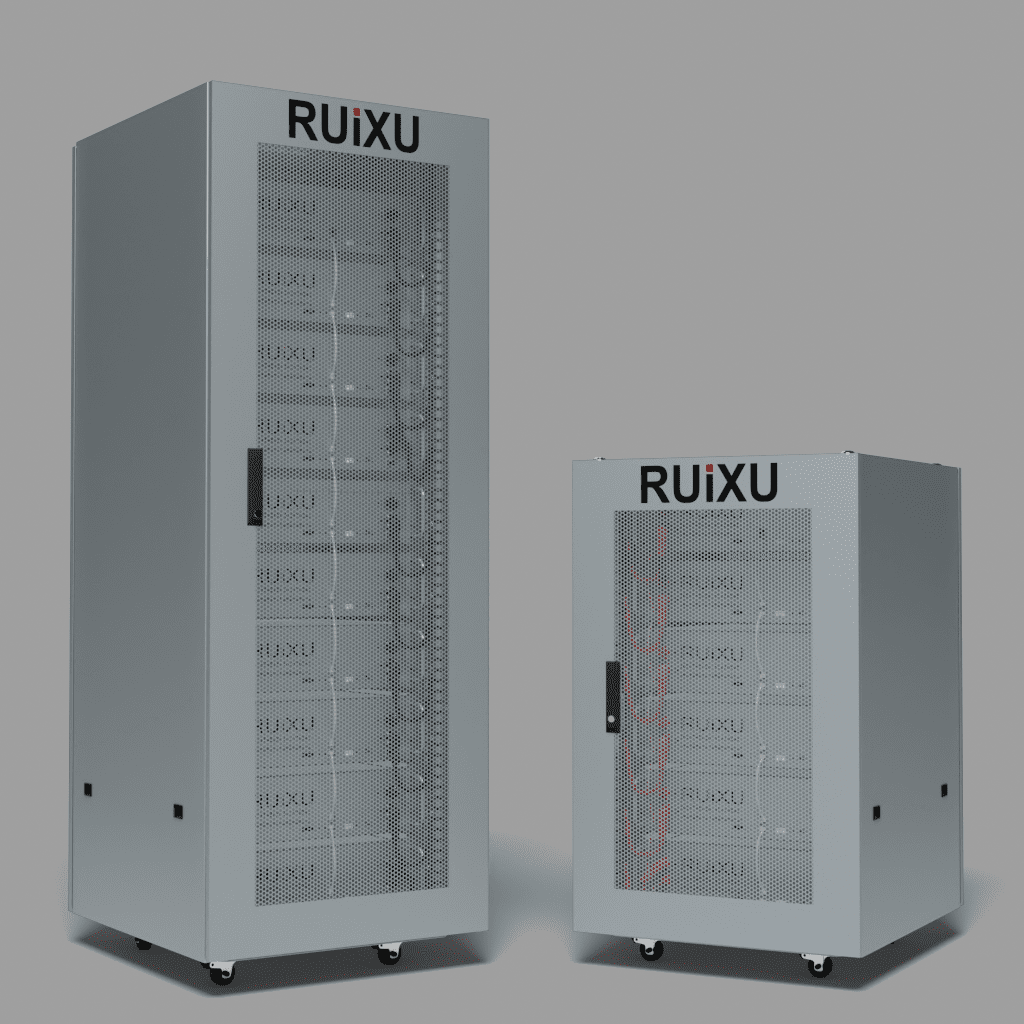

- 6-slot / 10-slot battery cabinet specification (RUiXU)
Availability: CSE confirms current availability, lead time and freight for every RUiXU order. Contact CSE Solar USA to check availability or request a quote.
| MPN | RX-15kWH-HC |
|---|
Disclaimer: While we strive to keep our item documents updated, item documents may have been updated by our manufacturers. Please note the date the document was created - for the most up-to-date item details, please refer to the manufacturer's website.
