Liniotech 14.34kWh 51.2V 280Ah Wall-Mount LiFePO₄ Battery | LNT051280A-B-GBP2
$3,724.99
8 people are viewing this product right now
Liniotech LNT051280A-B-GBP2 is a 14.34 kWh, 51.2 V, 280 Ah wall-mount LiFePO₄ battery for indoor home and small-business energy storage. It is CEC-listed, and up to 16 units can run in parallel. Freight is quoted with your order.

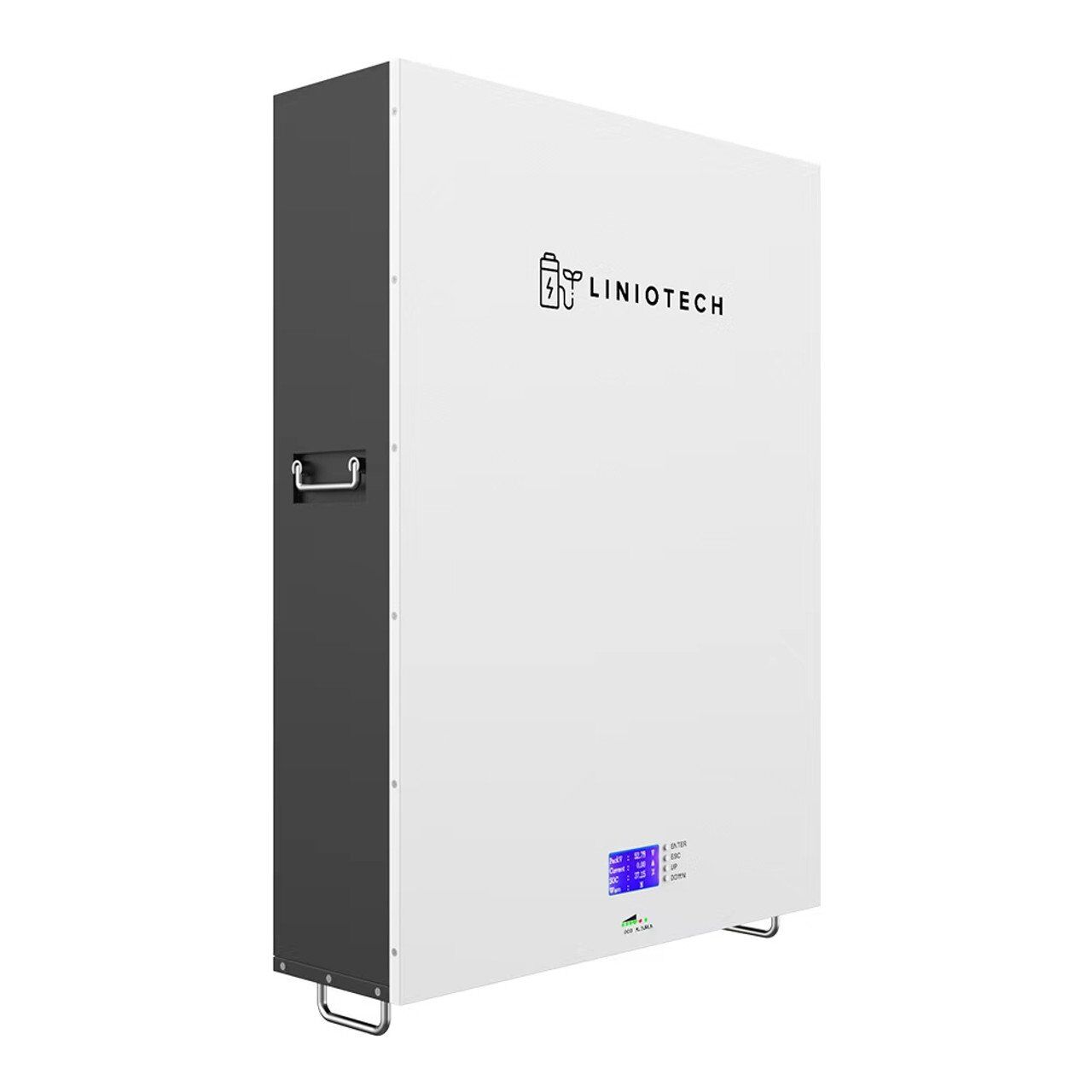

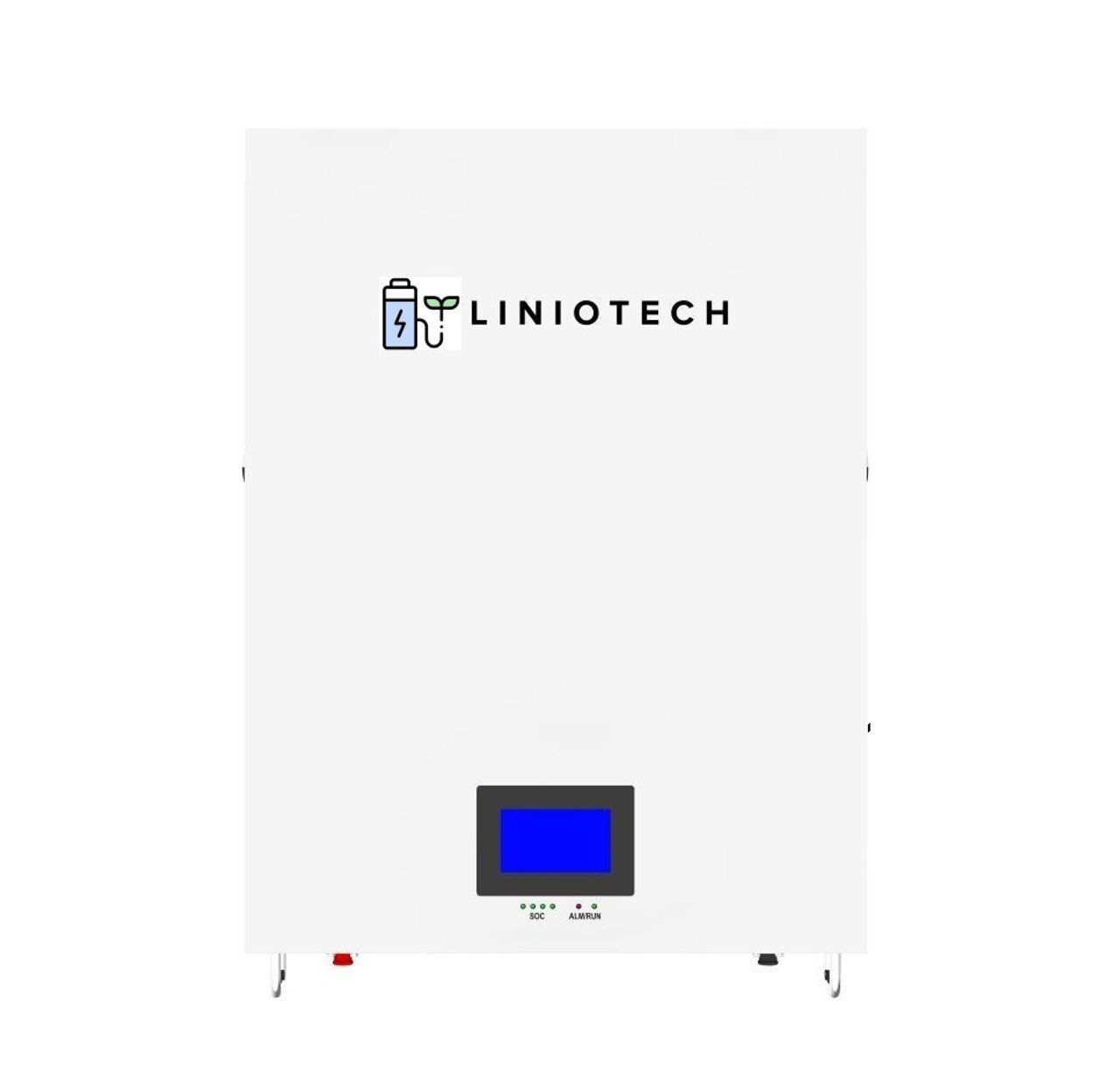

Liniotech LNT051280A-B-GBP2 14.34 kWh Wall-Mount Battery
The Liniotech LNT051280A-B-GBP2 is a 51.2 V, 280 Ah lithium iron phosphate (LiFePO₄) battery that stores 14.34 kWh in a single wall-mounted module. It is built for indoor installation in homes and small businesses that pair solar with backup or time-of-use storage. Each module has its own battery management system, and up to 16 modules can be connected in parallel (about 229 kWh nominal).
This is the wall-mount model. For an outdoor-rated, floor-standing unit, ask us about the Liniotech LNT051280A-B-GBP2F. See all Liniotech products.
Key facts
- Capacity: 14.34 kWh nominal, 280 Ah at 51.2 V nominal (46–56 V operating)

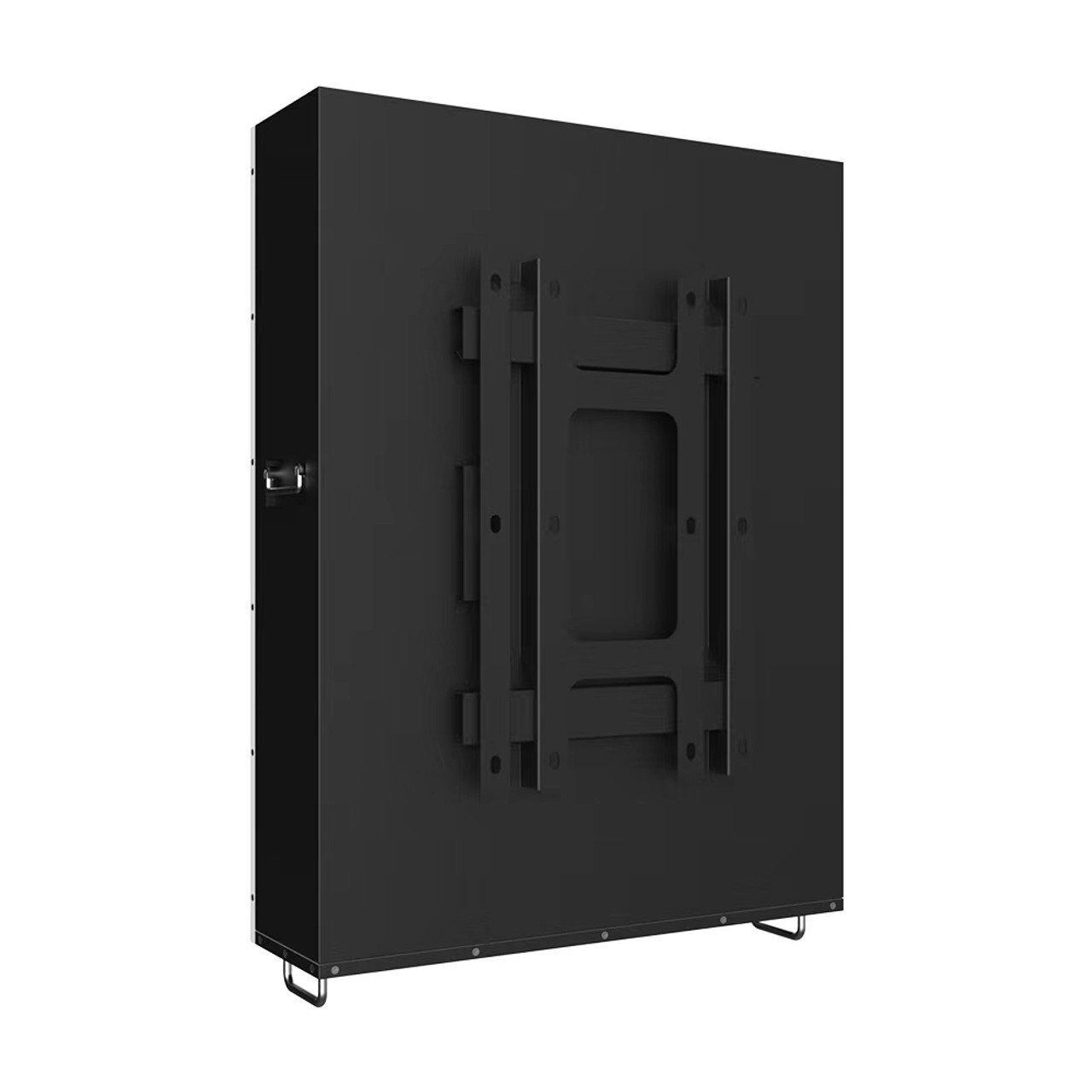

- Mounting: wall bracket, indoor installation
- Expansion: up to 16 batteries in parallel
- Communication: CAN 2.0 and RS485
- Warranty: 12 years, per Liniotech’s current price list
Listings and certification
Listed on the California Energy Commission (CEC) battery list. Certification documents for this exact model are available on request.

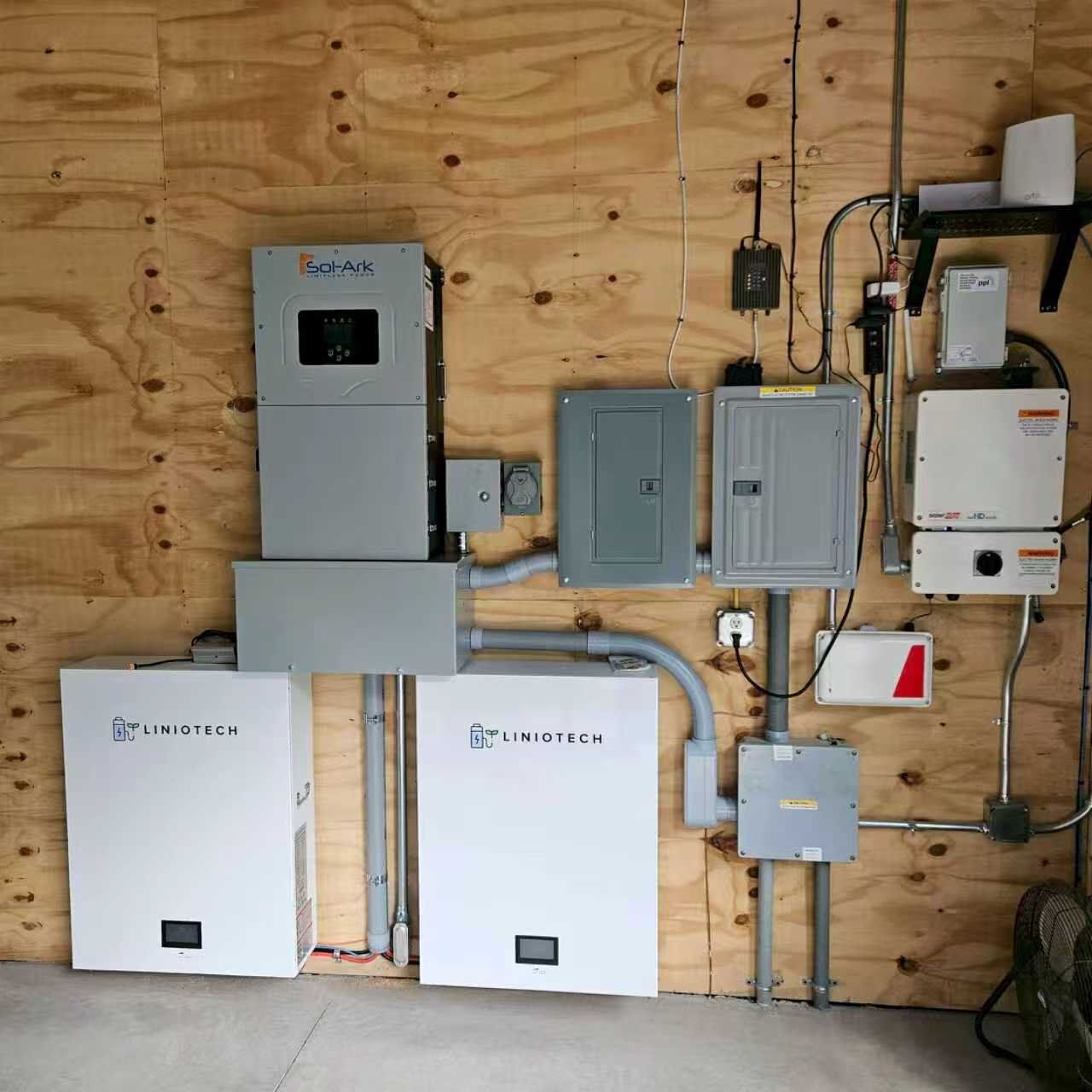

Inverter pairing
Liniotech is listed as a Sol-Ark Low Voltage (48V) Certified Battery Partner, and Sol-Ark’s LV Battery Integration Guide includes setup instructions for this battery. For any other inverter, ask us to confirm compatibility for your exact model before you order.
Ordering and freight
This battery ships by freight. Freight, lead time and delivery are confirmed in your quote before payment. Contact CSE Solar USA for sizing help or project pricing.
Specifications
| Model No | LNT051280A-B-GBP2 |
|---|---|
| Mounting | Wall-mount (bracket), indoor |
| Battery chemistry | LiFePO₄ |
| Nominal energy | 14.34 kWh |
| Capacity | 280 Ah |
| Nominal voltage | 51.2 V |
| Operating voltage | 46–56 V |
| Charge/discharge current | 100 A recommended / 150 A max continuous |
| Parallel | Up to 16 units (about 229 kWh nominal) |
| Enclosure | IP20 / IP21 per manufacturer documents (indoor) |
| Dimensions | 35.4 × 26.6 × 7.9 in (900 × 675 × 200 mm, incl. bracket) |
| Communication | CAN 2.0, RS485 |
| Warranty | 12 years (Liniotech price list) |
| Listings | CEC-listed · certification documents available on request |
Documents
| Weight | 283.41 lbs |
|---|---|
| Dimensions | 35.43 × 26.57 × 7.87 in |
| MPN | LNT051280A-B-GBP2 |
