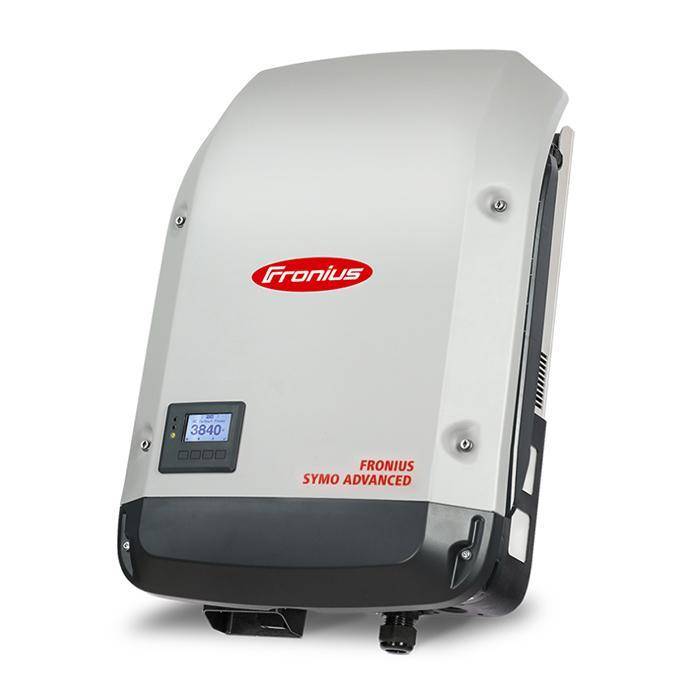

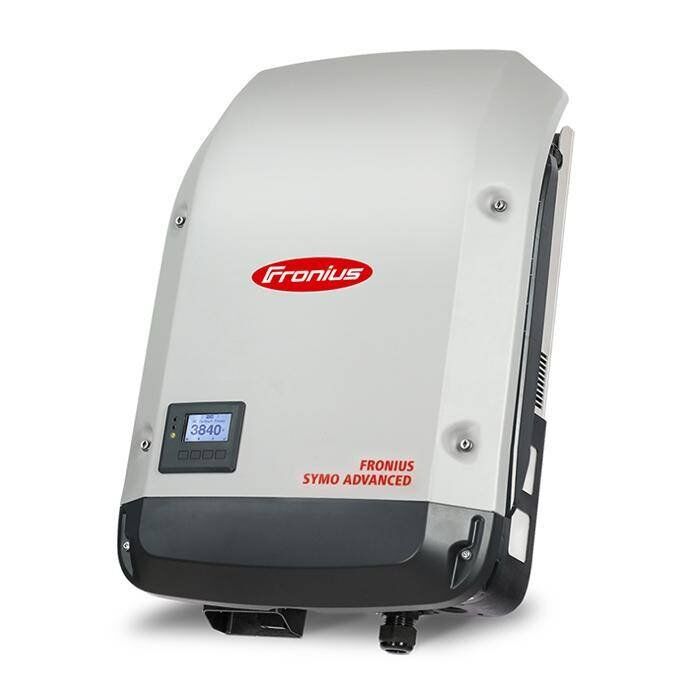

Fronius Symo Advanced 10.0-3 | 10kW 3-Phase String Inverter (208/240V Grid-Tied)
The Fronius Symo Advanced 10.0-3 is a reliable, transformerless, 3-phase string inverter built for high-efficiency commercial and light industrial solar projects. Delivering 10 kW AC output power and supporting up to 13 kW DC input, this inverter provides flexibility for system designers and robust performance in demanding environments.
Smart Design & Easy Installation:

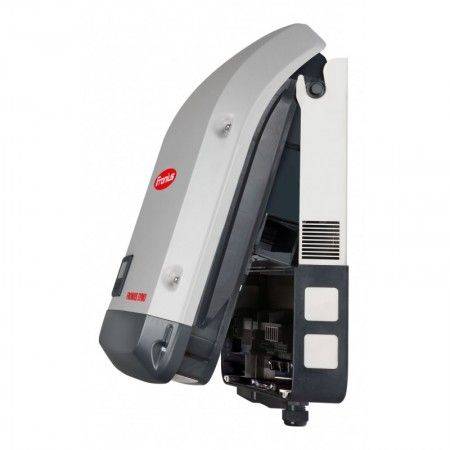

Featuring the proven SnapINverter mounting system, the Symo Advanced allows for quick, tool-free installation and field serviceability. Its compact, low-profile design supports zero-tilt mounting and low roof loading, making it suitable for a wide range of mounting options, including wall, roof, or pole configurations.
Advanced Safety & Compliance:
This latest Advanced version includes an integrated PLC transmitter that meets SunSpec Rapid Shutdown communication standards and complies with NEC 2014, 2017, and earlier codes. Built with NEMA 4X protection, it ensures reliable performance in outdoor environments.
Connectivity & Monitoring:
Equipped with built-in Wi-Fi and SunSpec Modbus interfaces, the Fronius Symo Advanced seamlessly connects to Fronius Solar.web for real-time monitoring, performance analytics, and remote updates. It also includes Arc Fault Circuit Interruption (AFCI) and is fully UL 1741-SA (Rule 21) and FCC certified.
Technical Specifications:
-
Model: Fronius Symo Advanced 10.0-3
-
AC Power Output: 10,000 W
-
Max DC Input: 13,000 W
-
Voltage: 208/240 V (3-Phase)
-
Efficiency: Up to 98.1%
-
MPPT Channels: 2 (Dual MPPT)
-
Enclosure Rating: NEMA 4X / IP66
-
Certifications: UL Certificate
-
Connectivity: Wi-Fi, Ethernet, SunSpec Modbus
-
Weight: 97 lb
-
Dimensions: 35 × 26 × 19 in (Shipping)
-
Pallet Quantity: 8
Why Choose Fronius Symo Advanced Solar Inverter:
-
Integrated rapid shutdown communication for full compliance
-
Lightweight, field-serviceable design
-
High-efficiency power conversion for commercial solar arrays
-
Reliable performance under diverse weather conditions
-
Smart connectivity for easy monitoring and maintenance
