Hoymiles Microinverters HMS microinverters, DTU monitoring gateways and HYS hybrid storage for North America
Hoymiles makes module-level power electronics: microinverters that convert each solar module’s DC to grid-ready AC at the array, DTU gateways for S-Miles Cloud monitoring, and HYS hybrid inverters with LB batteries for storage. Shop current Hoymiles North America models at CSE Solar USA with live pricing, or get help planning branch circuits, monitoring and storage.
Product images: Hoymiles official product renders.
Shop Hoymiles microinverters, gateways and storage
Current Hoymiles listings at CSE Solar USA, with live pricing and availability from our store.
Hoymiles HMS-2000-4T-NA Microinverter – 2000W Output, 4 MPPT Inputs, for 400–670W+ Solar Panels

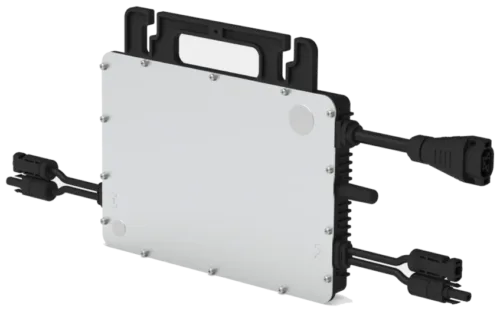

Hoymiles HMS-800-2T-NA 2-in-1 Microinverter | 800W Peak Output for 360-600W Solar Panels

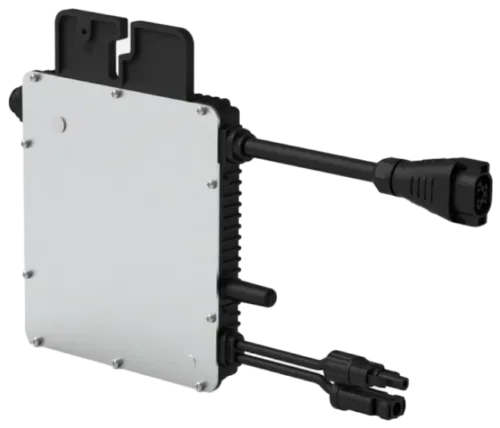

Hoymiles HMS-500-1T-NA 1-in-1 Microinverter | 500W Peak Output for 400–670W Solar Modules
Hoymiles HMS-1000-2T-NA 2-in-1 Microinverter | Dual-Module 1000W Solar Inverter for 400–670W+ Panels

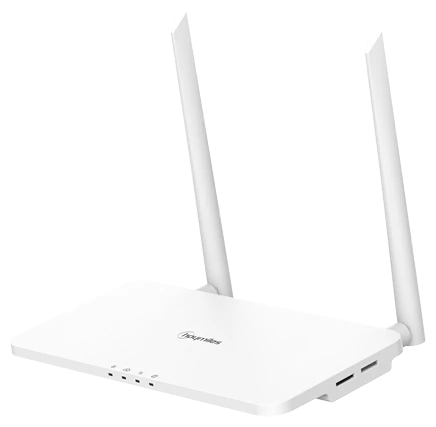

Hoymiles DTU-PRO-S Communication Module | Wireless Data Transfer & Monitoring Solution for PV Inverters

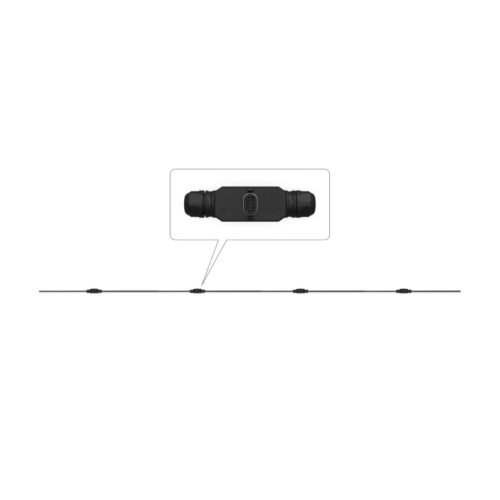

Hoymiles AC Trunk Cable 10AWG – 2 Meter, 20-Port Bulk Accessory

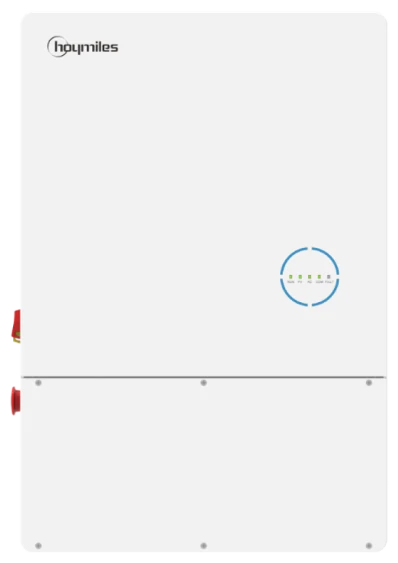

Hoymiles HYS-9.6LV-USG1 9.6kW Hybrid inverter| Split-Phase 120/240V | 48V Battery Compatible

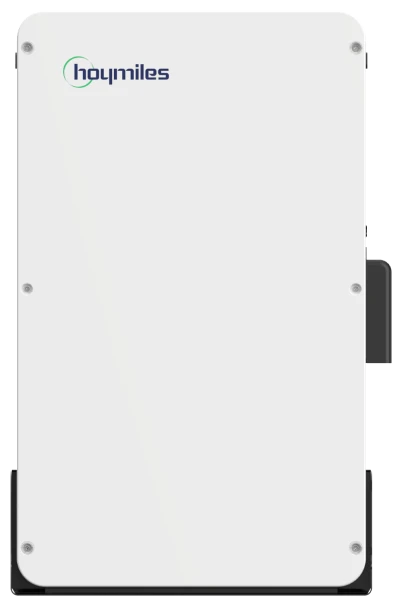

Hoymiles LB-10D-USG2 51.2V 10.24kWh Low Voltage LFP Battery – Power Storage for Hybrid Inverters
Listed prices are CSE Solar USA prices. Availability, lead time and freight are confirmed for every order.
Hoymiles product families
From single-module microinverters to 4-in-1 units, monitoring gateways and hybrid storage. Choose a family to see the CSE listings.

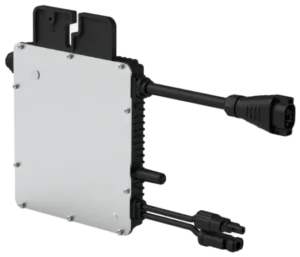

HMS-1T-NA
One microinverter per module, 319 to 475 VA continuous. Sub-1G communication, UL 1741 SB, NEC 690.12 rapid shutdown.

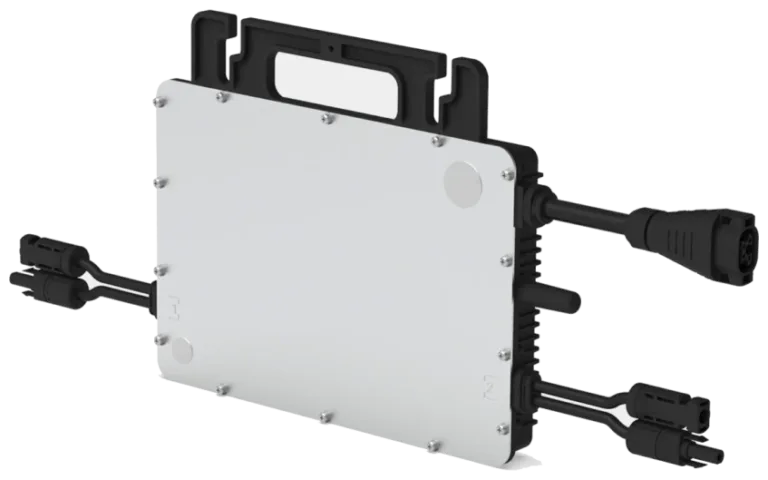

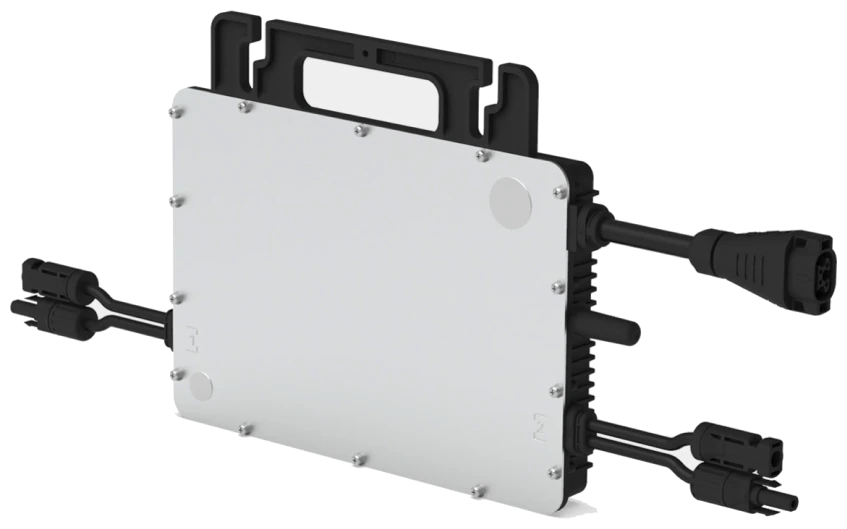

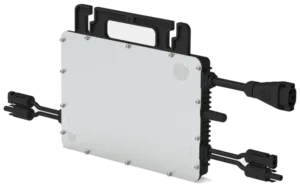

HMS-2T-NA
Two modules on one unit with an independent MPPT for each, 638 to 958 VA continuous.

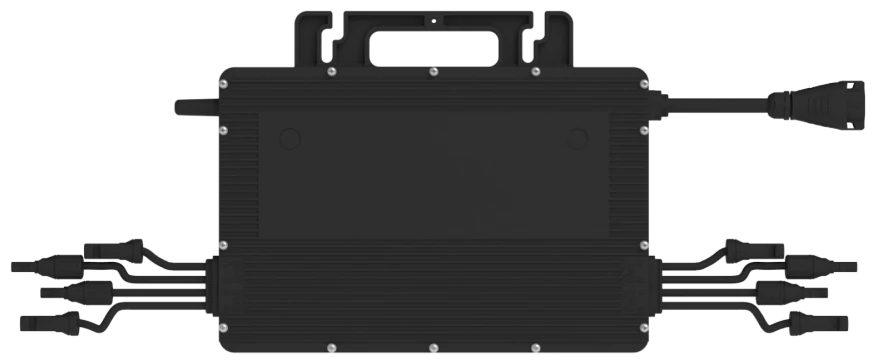

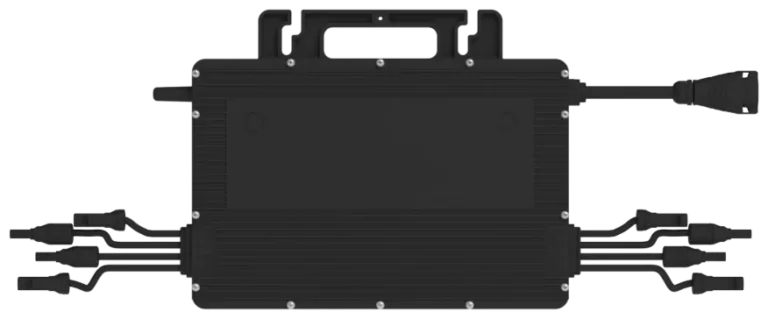

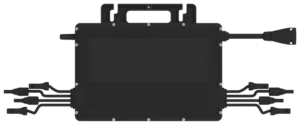

HMS-4T-NA
Four modules and four MPPTs per unit, 1,440 to 1,918 VA continuous, on a 10 AWG AC branch.
DTU gateways and DTS
DTU-Pro-S (Sub-1G, for HMS-NA) and DTU-Pro (2.4 GHz, for HM series) each monitor up to 99 modules in S-Miles Cloud. DTS-Wi-Fi-G1 connects HYS inverters.
HYS-LV-USG1 and LB-10D-USG2
HYS hybrid inverters from 3.8 to 11.5 kW, 120/240 V split-phase with a 48 V battery input. LB-10D-USG2: 10.24 kWh LFP, up to 10 in parallel.
Every module, its own conversion
Each Hoymiles microinverter tracks its modules independently and converts DC to AC right at the array. Units of different sizes can share an AC branch, and a DTU gateway collects module-level data for S-Miles Cloud.

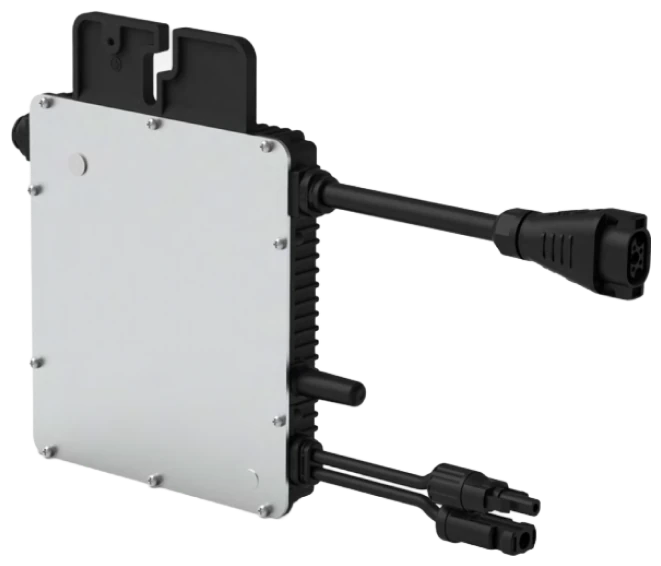

HMS-1T-NA
HMS-2T-NA
HMS-4T-NA
DTU-Pro-S gatewaySub-1G link to HMS-NA units, up to 99 modules- S-Miles CloudModule-level monitoring over Ethernet, Wi-Fi or 4G
- Home and gridAC power to your loads and the utility through the main panel
| Model | 12 AWG branch (20 A) | 10 AWG branch (30 A) |
|---|---|---|
| HMS-350-1T-NA | 12 / 10 | 18 / 15 |
| HMS-400-1T-NA | 10 / 9 | 16 / 13 |
| HMS-450-1T-NA | 9 / 8 | 14 / 12 |
| HMS-500-1T-NA | 8 / 7 | 12 / 10 |
| HMS-700-2T-NA | 6 / 5 | 9 / 7 |
| HMS-800-2T-NA | 5 / 4 | 8 / 6 |
| HMS-1000-2T-NA | 4 / 3 | 6 / 5 |
| HMS-1600-4T-NA | n/a | 4 / 3 |
| HMS-1800-4T-NA | n/a | 3 / 3 |
| HMS-2000-4T-NA | n/a | 3 / 2 |
Illustration of a typical Hoymiles microinverter system. Branch limits are Hoymiles datasheet maximums; follow local code and the Hoymiles installation manual.
Hoymiles HYS hybrid inverters and LB-10D-USG2 batteries
HYS-LV-USG1 hybrid inverters bring solar, battery and backup together on 120/240 V split-phase systems. Hoymiles lists the LB-10D-USG2 low-voltage battery alongside the HYS series. CSE confirms the exact configuration for your project.
- HYS-LV-USG1: 3.8 to 11.5 kW, 48 V battery input, up to 10 units in parallel
- LB-10D-USG2: 10.24 kWh LFP, up to 10 in parallel (102.4 kWh)
- LB-10D-USG2 listed to UL 1973, UL 9540 and UL 9540A
- 10-year warranty on HYS-LV-USG1 and LB-10D-USG2 (datasheets)
Hoymiles HYS-9.6LV-USG1 9.6kW Hybrid inverter| Split-Phase 120/240V | 48V Battery Compatible
Hoymiles LB-10D-USG2 51.2V 10.24kWh Low Voltage LFP Battery – Power Storage for Hybrid Inverters
Where Hoymiles microinverters fit
Residential rooftops
Module-level conversion keeps DC wiring short and every module independently tracked.
Mixed orientations and shade
Independent MPPT per module helps when modules face different directions or see partial shade.
Module-level monitoring
DTU gateways report each module to S-Miles Cloud for installers and owners.
Solar with storage
HYS hybrid inverters and LB-10D-USG2 batteries for backup and self-consumption.
Why buy Hoymiles through CSE Solar USA
Live pricing and availability
Prices and stock status on this page come straight from the CSE store and update with every change.
Help planning branches
Tell us your modules and roof layout; we help match microinverter models, branch counts and the right gateway.
Microinverters to storage
From single-module HMS units to HYS hybrid inverters and LB batteries, quoted per project.
One supplier for the whole system
Solar panels, microinverters, racking and balance-of-system from one order.
Hoymiles datasheets and documents
Official Hoymiles datasheets (open hoymiles.com), plus the CSE Hoymiles Resource Center for guides and technical help.
Hoymiles Resource Center
Open →WebHMS-1T-NA datasheet
Open →WebHMS-2T-NA datasheet
Open →WebHMS-4T-NA datasheet
Open →WebHM-600/700/800NT datasheet
Open →WebHM-1200/1500NT datasheet
Open →WebDTU-Pro-S datasheet
Open →WebHYS-LV-USG1 datasheet
Open →WebLB-10D-USG2 datasheet
Open →WebAC trunk cable accessories
Open →Hoymiles microinverters: frequently asked questions
What does Hoymiles make?
Hoymiles makes microinverters (HMS-NA, HM-NT and HM-N series for North America), DTU monitoring gateways for S-Miles Cloud, AC trunk and daisy-chain cable systems, and HYS hybrid inverters with LB-10D-USG2 batteries for storage.
Which Hoymiles microinverters are current for North America?
The HMS-NA series (1-in-1, 2-in-1 and 4-in-1) is Hoymiles’ current North America line and communicates over Sub-1G with the DTU-Pro-S. HM-NT and HM-N are the earlier North America generation using 2.4 GHz RF and the DTU-Pro gateway.
Do Hoymiles microinverters support rapid shutdown?
Yes. Hoymiles North America microinverter datasheets state that the units are PV rapid shutdown equipment conforming with NEC 2017 and NEC 2020 Article 690.12 and CEC 2021 Sec 64-218.
How many microinverters can go on one AC branch?
It depends on the model and wire size. For example, Hoymiles lists up to 3 HMS-2000-4T-NA units on a 10 AWG (30 A) branch at 240 V, and up to 8 HMS-500-1T-NA units on a 12 AWG (20 A) branch at 240 V. See the table above and follow local code.
Which gateway do I need for monitoring?
HMS-NA microinverters work with Sub-1G gateways such as the DTU-Pro-S. HM-NT and HM-N microinverters use the 2.4 GHz DTU-Pro. Each gateway monitors up to 99 modules and connects to S-Miles Cloud.
Where is Hoymiles based?
Hoymiles was founded in 2012 and is headquartered in Hangzhou, China. It is listed on the Shanghai Stock Exchange STAR Market (688032), and its U.S. company is Hoymiles Power Electronics USA Inc. in Richardson, Texas.
Where can I find Hoymiles guides and manuals?
Our Hoymiles Resource Center collects CSE guides on sizing, rapid shutdown, monitoring and installation, and the official datasheets are linked above.
Get a quote for a Hoymiles system
Microinverter systems
Send your module model and count, roof layout and delivery ZIP. CSE matches microinverter models, branch counts and the gateway before invoicing.
Request a system quoteStorage and larger projects
HYS hybrid storage or multi-branch projects: send your loads, backup goals and timeline.
Request project pricingExplore more microinverter brands
Compare other microinverter and module-level power electronics manufacturers available through CSE Solar USA.
Enphase microinverters
APsystems microinverters
Aptos Solar microinverters
Tigo microinverters
NEP microinverters
View all microinverter brands (7)
Can’t find the model you need? Request a special order
All Hoymiles products at CSE Solar USA (44)
Every Hoymiles listing on CSE Solar USA. Open a product for specifications, documents and current pricing.
HMS-4T-NA (4-in-1) (3)

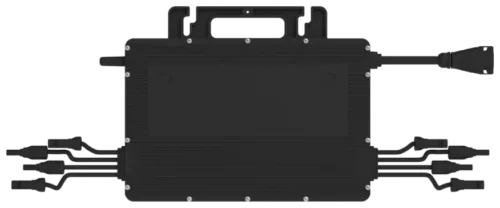

Hoymiles HMS-2000-4T-NA Microinverter – 2000W Output, 4 MPPT Inputs, for 400–670W+ Solar Panels
Hoymiles HMS-1800-4T-NA 4-in-1 Grid-Tie Microinverter | 1800W Peak Output for High-Power PV Modules
Hoymiles HMS-1600-4T-NA PV Microinverter – 1600W Output, 4 MPPT Inputs, for 320–540W+ Solar Panels
HMS-2T-NA (2-in-1) (3)
Hoymiles HMS-1000-2T-NA 2-in-1 Microinverter | Dual-Module 1000W Solar Inverter for 400–670W+ Panels
Hoymiles HMS-800-2T-NA 2-in-1 Microinverter | 800W Peak Output for 360-600W Solar Panels
Hoymiles HMS-700-2T-NA 2-in-1 Microinverter | 700W Peak Output for 280-470W Solar Panels
HMS-1T-NA (1-in-1) (4)
Hoymiles HMS-500-1T-NA 1-in-1 Microinverter | 500W Peak Output for 400–670W Solar Modules
Hoymiles HMS-450-1T-NA Microinverter | 450W Peak | For 360–600W Solar Panels
Hoymiles HMS-400-1T-NA Microinverter | Reliable, Efficient Power for 320–540W+ Solar Modules
Hoymiles HMS-350-1T-NA | Microinverter for 280-470W Solar Panels

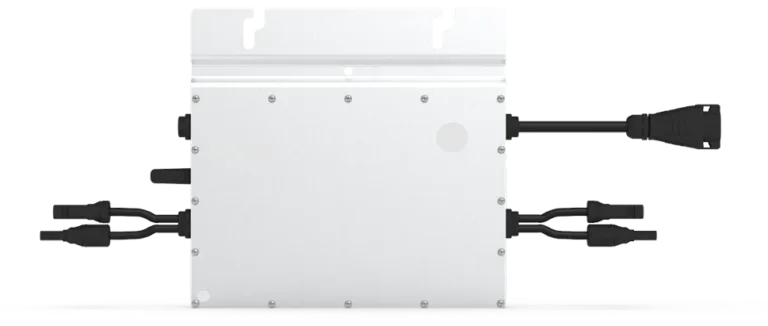

HM-NT and HM-N (2.4 GHz generation) (7)

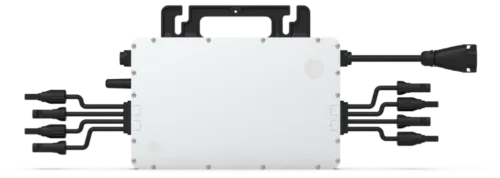

Hoymiles HM-1500NT 4-in-1 Microinverter | Single-Phase Grid-Tie | 1500W Peak Output | 4 Panel Solar
Hoymiles HM-1200NT | 4-in-1 Solar Microinverter 1200W Output | Grid Tied MPPT Solar

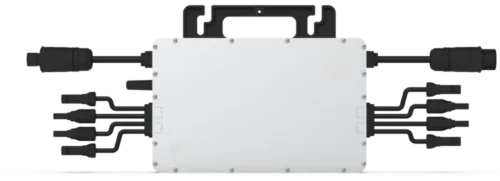

Hoymiles HM-1500N 4-in-1 Solar Microinverter 1500W | 300–505W+ Panels

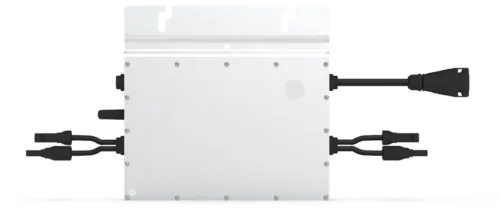

Hoymiles HM-800NT | 2-in-1 Microinverter for 320–540W PV Panels
Hoymiles HM-700NT 2-in-1 Microinverter | Single-Phase Grid-Tie, 280–470W Module Power
Hoymiles HM-600NT 2-in-1 Microinverter – Single-Phase Grid-Tie, 600W Peak Output for 2 Solar Panels

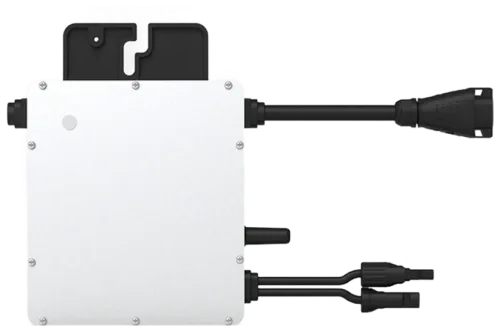

Hoymiles HM-350NT 1-in-1 Microinverter – Single-Phase Grid-Tie, 280–470W Module Power, 350W Peak Output
Monitoring and gateways (4)
Hoymiles DTU-PRO-S Communication Module | Wireless Data Transfer & Monitoring Solution for PV Inverters
Hoymiles DTU-PRO (WiFi) Communication Gateway | Real-Time Solar System Monitoring for PV Microinverters

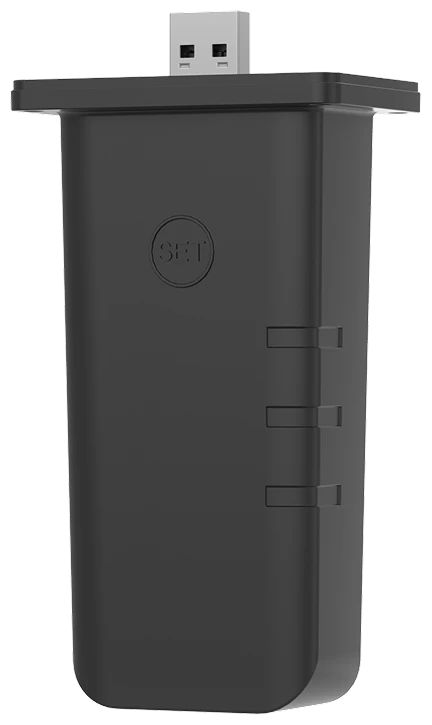

Hoymiles DTS-WIFI-G1 Communication Gateway | Connects HYS 48V Hybrid Inverters to S-Miles Cloud
Hybrid inverters and batteries (8)
Hoymiles HYS-11.5LV-USG1 | Single-Phase 11.5kW Hybrid Solar Inverter | Battery Ready
Hoymiles HYS-9.6LV-USG1 9.6kW Hybrid inverter| Split-Phase 120/240V | 48V Battery Compatible
Hoymiles HYS-7.6LV-USG1 7.6kW Hybrid Inverter | Single-Phase On/Off-Grid | 97.6% Efficiency
Hoymiles HYS-6.0LV-USG1 6.0kW Single-Phase DC Hybrid Solar Inverter | Battery Backup
Hoymiles HYS-4.8LV-USG1 | High-Performance 4.8kW Single-Phase Hybrid Inverter

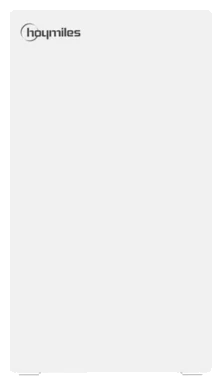

Hoymiles HYS-3.8LV-USG1 | 3.8kW Single-Phase Hybrid Inverter | Compatible with HBX-10.2LV-USG1 Battery
Hoymiles LB-10D-USG2 51.2V 10.24kWh Low Voltage LFP Battery – Power Storage for Hybrid Inverters
AC trunk cable system (7)

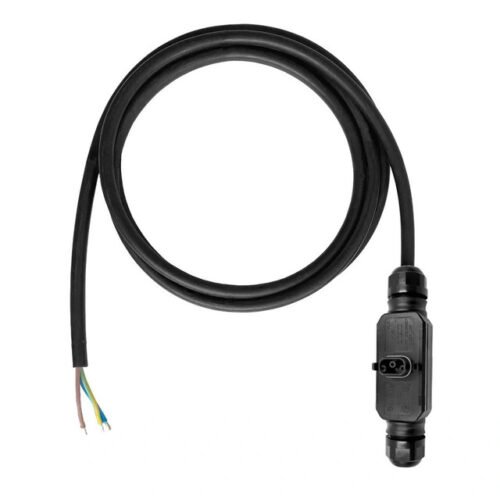

Hoymiles AC Trunk Cable 10AWG – 2 Meter, 20-Port Bulk Accessory
Hoymiles HM/HMS Microinverters AC Trunk Connector – Durable Power Accessories

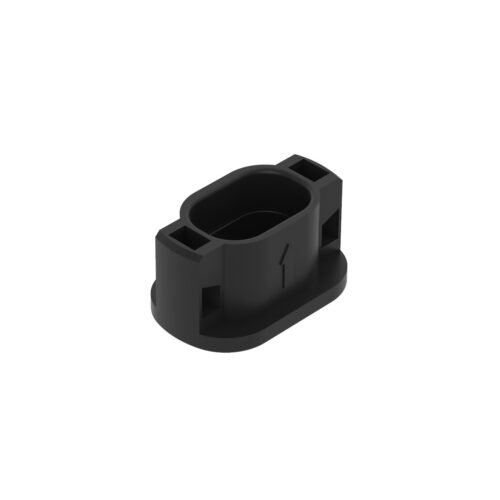

Hoymiles AC Trunk Port Cap | Protective Cover Accessory for HM & HMS Microinverters

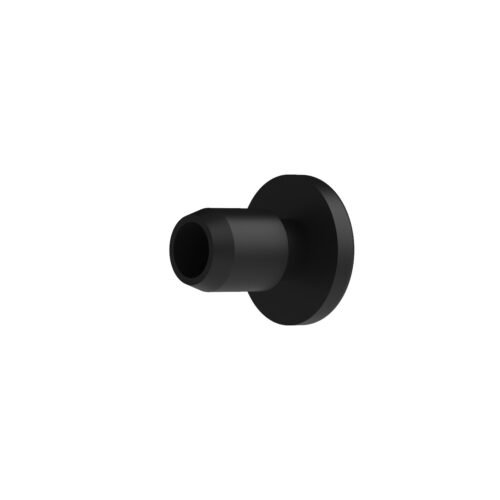

Hoymiles Microinverter AC Trunk End Cap | Safe Closure for HM/HMS AC Ports

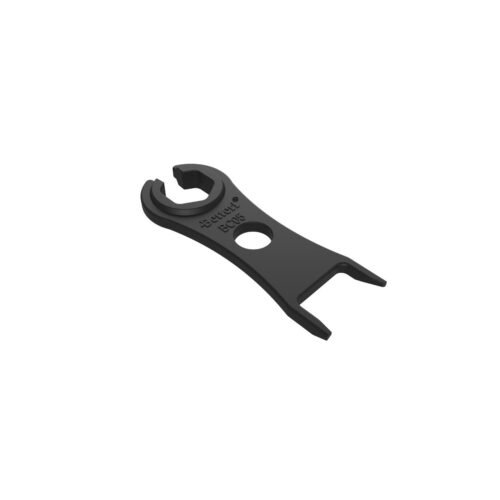

Hoymiles AC Trunk Port Disconnect Tool for HM/HMS Microinverters – Installation Accessory

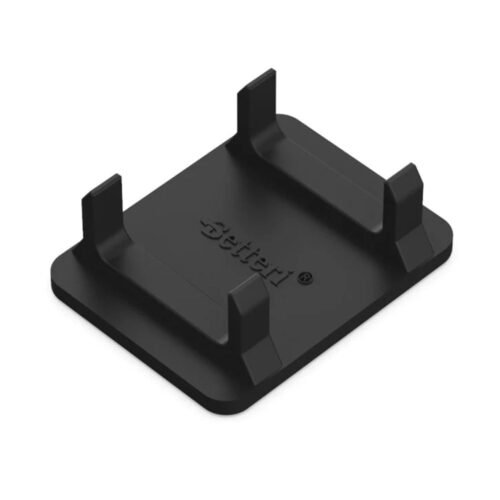

Hoymiles HM/HMS Microinverter AC Trunk Connector Unlock Tool | Solar Power Installation Accessory
Daisy-chain cables and connectors (8)

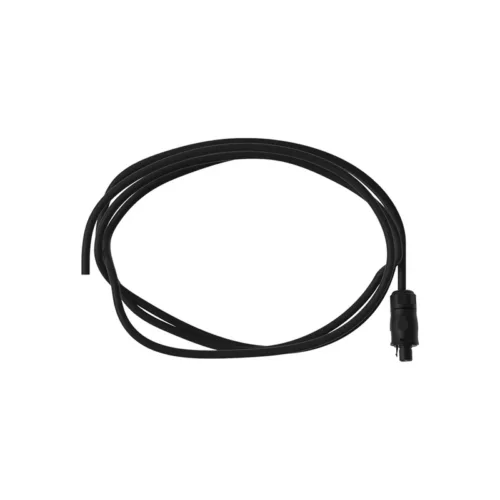

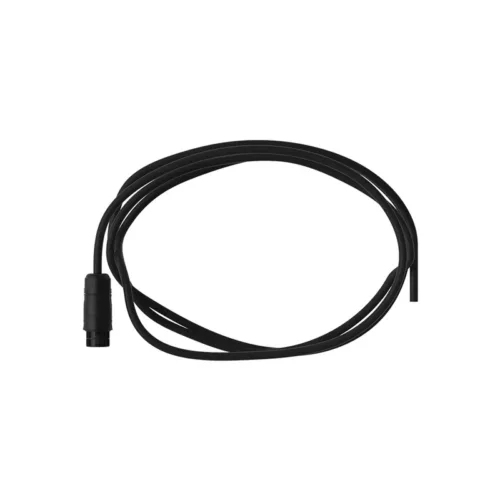

Hoymiles AC Connector End Cable - M for HM-N Microinverters | Durable AC Connector Accessory for Secure Power Connections

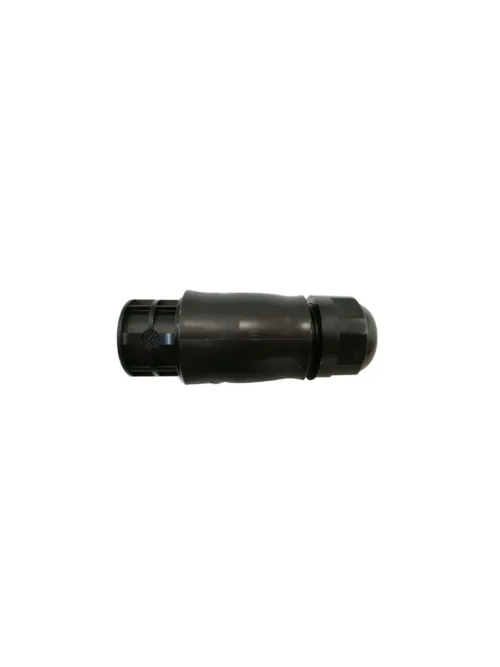

Hoymiles AC Connector Cable (AC_Connector_F) – Compatible with HM-N Microinverters | Durable Power Cable Accessory

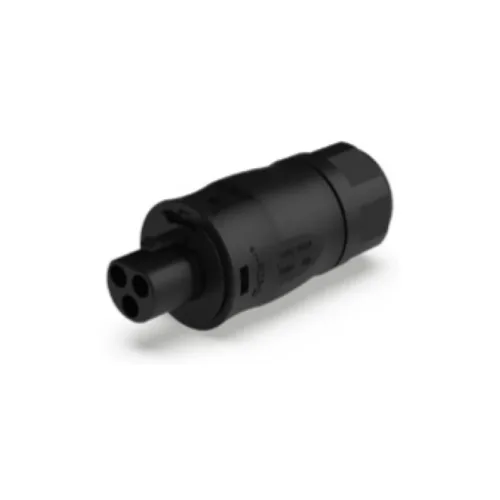

Hoymiles AC_Connector_M Cable Connector for HM-N Microinverters | Plug-and-Play Solar AC Cable Accessory
